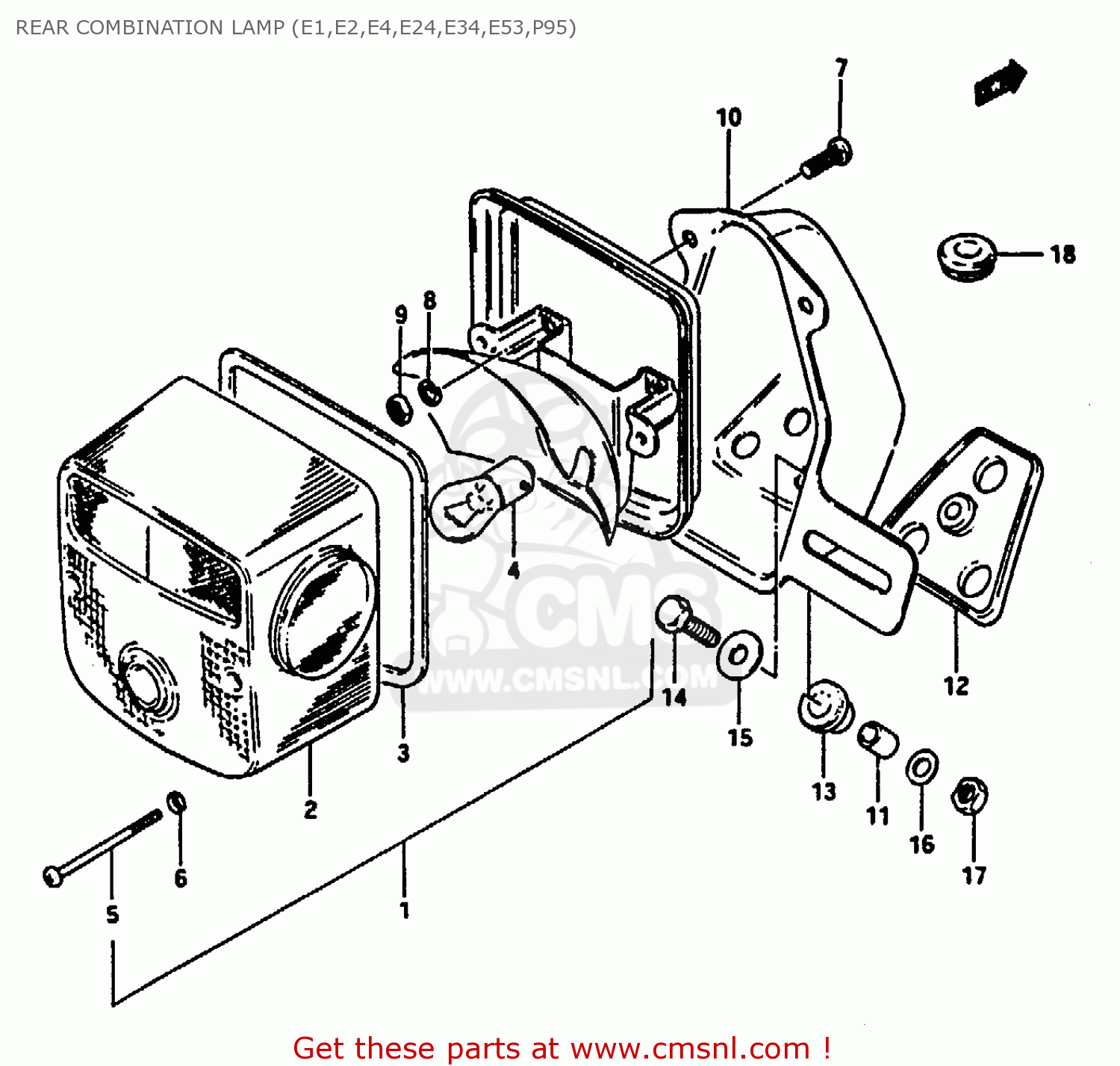

REAR COMBINATION LAMP (E1,E2,E4,E24,E34,E53,P95)

ref

part #

description

quantity

1-1

3572038350
ref: 1-1
MODEL M/R E2,E4,E24,

LAMP UNIT,RR COMBNATION

€ 138.00

1-2

3572038310999
ref: 1-2
MODEL J/I/L E24,P95

LAMP UNIT,TAIL

€ 115.50

1-3

3572038311999
ref: 1-3
MODEL M/R E1

LAMP UNIT,TAIL

€ 115.50

2-1

3571238350
ref: 2-1
MODEL M/R E2,E4,E24,

LENS

€ 66.00

2-2

3571248624
ref: 2-2
MODEL J/I/L E24,P95

LENS,RR COMBIN

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4-1

0947112046
ref: 4-1
MODEL M/R E2,E4,E24,

BULB(12V21/5W)

€ 1.50

4-2

0947112035
ref: 4-2
MODEL J/K/L E24,P95

BULB(12V23W)

€ 5.50

4-3

0947112045
ref: 4-3
MODEL J/K/M E24

BULB(12V21W)

€ 5.00

5

0912504002
ref: 5

SCREW (4X55)

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211206128
ref: 7

SCREW 6X12

€ 2.00

8

0832121067
ref: 8

WASHER,LOCK

€ 2.50

9-1

0831011067
ref: 9-1
MODEL F/J/K/L/M/N/P

NUT 6MM

€ 2.50

9-2

0831000067
ref: 9-2
MODEL R

NUT

€ 2.50

10

3573038310
ref: 10

BRACKET UNIT,TAIL LAMP

€ 57.50

11

3576626470
ref: 11

SPACER

€ 2.00

12

3576526470
ref: 12

CUSHION

€ 10.00

13

3576426470
ref: 13

CUSHION

€ 2.50

14-1

0150006207
ref: 14-1
MODEL F/J

BOLT

€ 2.00

14-2

0911606011
ref: 14-2
MODEL K/M/N/P

BOLT 6X20

€ 2.00

15

0916006027
ref: 15

WASHER (6.5X20X1.2)

€ 2.00

16

0832201063
ref: 16

WASHER

€ 2.00

17-1

0831012066
ref: 17-1
MODEL F/J/K/L/M/N/P

NUT

€ 2.00

17-2

0831000063
ref: 17-2
MODEL R

NUT 6MM

€ 2.00

18

0930809004
ref: 18

GROMMET

€ 0.00
