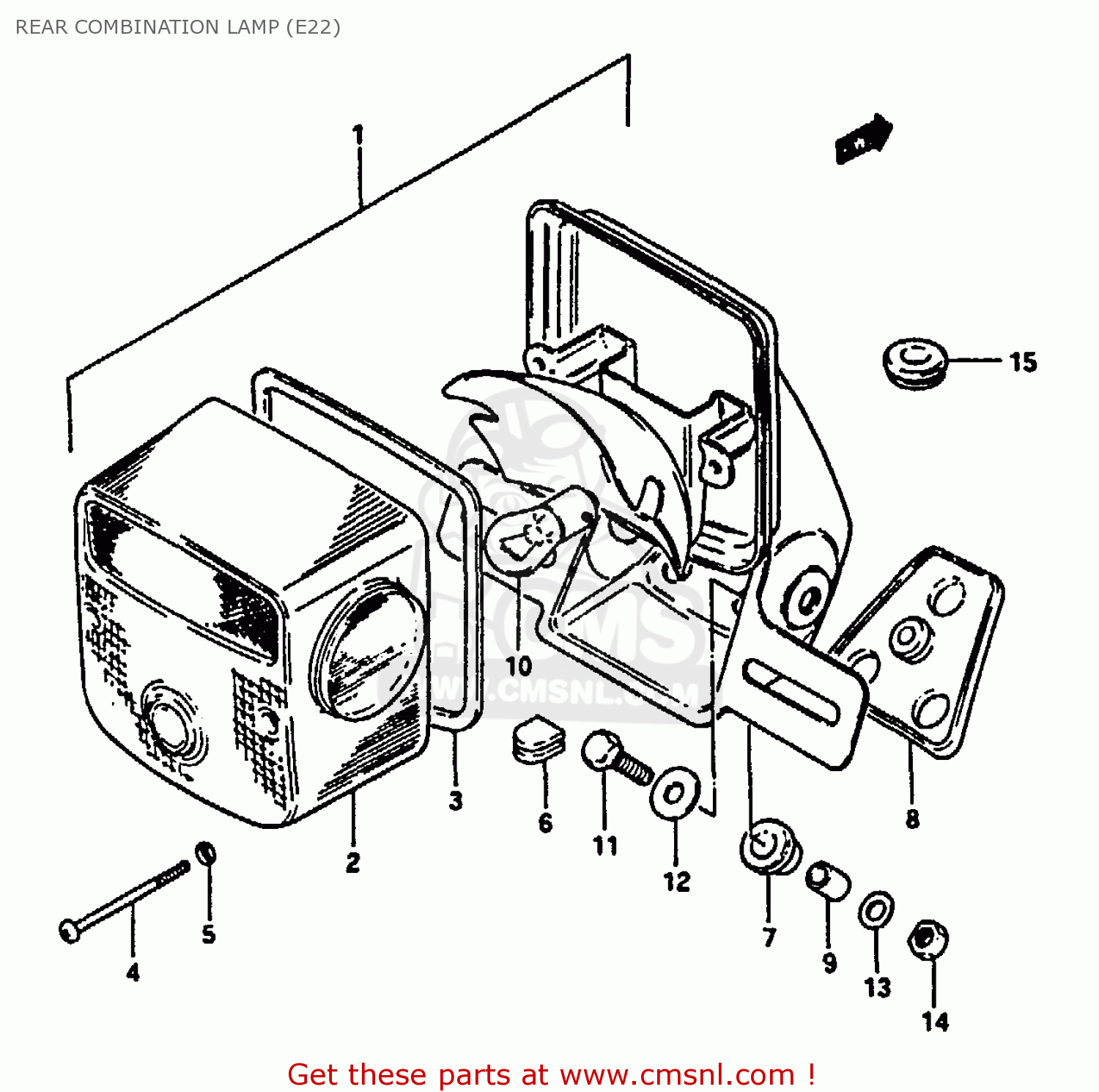

REAR COMBINATION LAMP (E22)

ref

part #

description

quantity

1-1

3571038391
ref: 1-1
-F.NO.103921

LAMP ASSY,TAIL

€ 149.00

1-2

3571030300
ref: 1-2
F.NO.103922-

LAMP ASSY,TAIL

€ 0.00

2-1

3571211323
ref: 2-1
-F.NO.103921

LENS

€ 66.00

2-2

3571238350
ref: 2-2
F.NO.103922-

LENS

€ 66.00

3

3571330510
ref: 3

GASKET (NAS)

€ 6.00

4

0912504002
ref: 4

SCREW (4X55)

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3572830640
ref: 6

GROMMET,REAR COMBINATION LAMP

€ 3.00

7

3576426470
ref: 7

CUSHION

€ 2.50

8

3576526470
ref: 8

CUSHION

€ 10.00

9

3576626470
ref: 9

SPACER

€ 2.00

10

0947112046
ref: 10
EXECUTED LOCALLY

BULB(12V21/5W)

€ 1.50

11-1

0110706257
ref: 11-1
MODEL F/J/K/L/M/N/P

BOLT

€ 2.00

11-2

0911606011
ref: 11-2
MODEL R

BOLT 6X20

€ 2.00

12

0916006027
ref: 12

WASHER (6.5X20X1.2)

€ 2.00

13

0832201063
ref: 13

WASHER

€ 2.00

14-1

0831012066
ref: 14-1
MODEL F/J/K/L/M/N/P

NUT

€ 2.00

14-2

0831000063
ref: 14-2
MODEL R

NUT 6MM

€ 2.00

15

0930809004
ref: 15

GROMMET

€ 0.00

all assemblies
