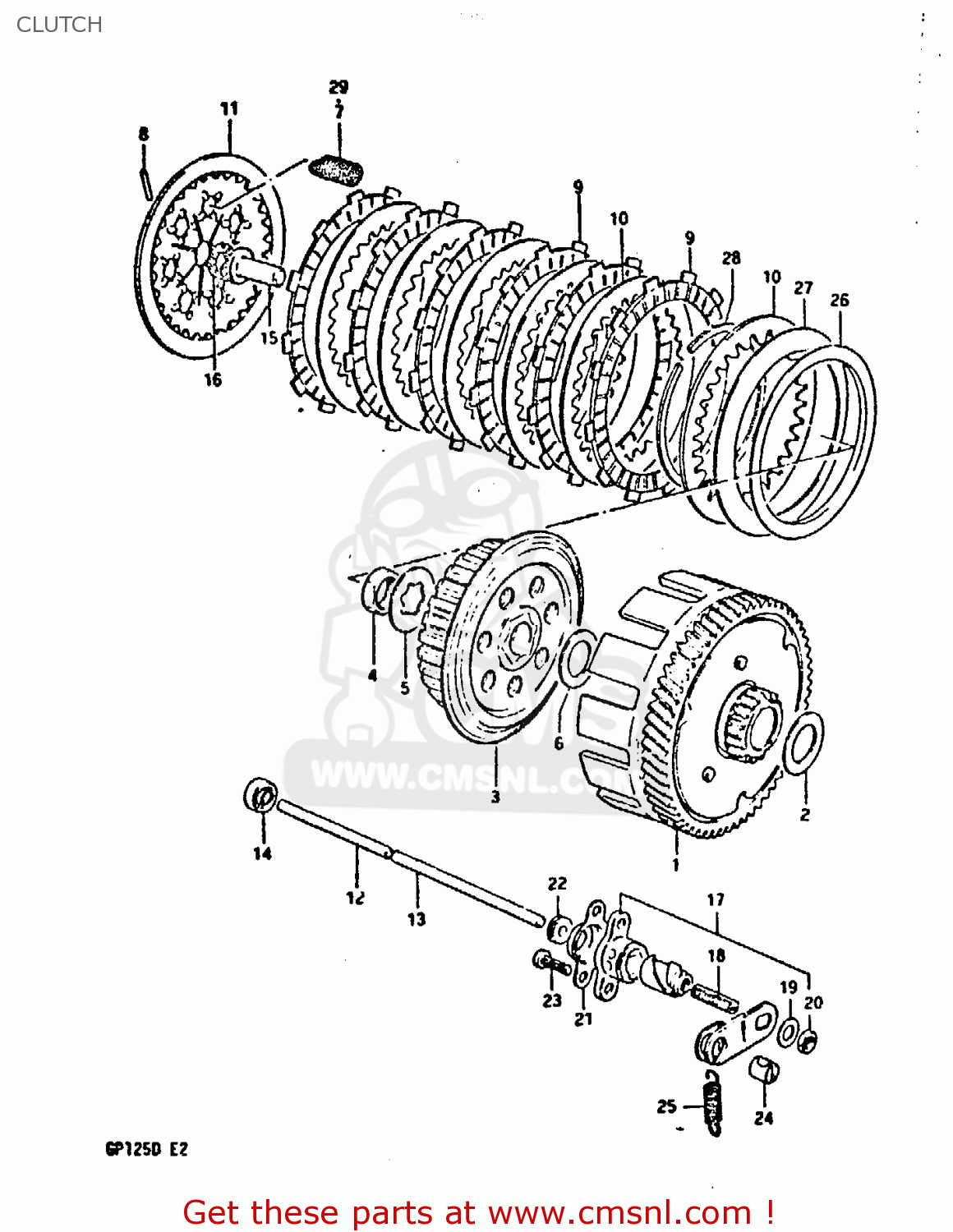

CLUTCH

ref

part #

description

quantity

1

2120039101
ref: 1
NT:58/17

GEAR ASSY, PRIMARY DRIVEN

€ 148.50

2

0821120323
ref: 2

WASHER

€ 2.50

3-1

2141028700
ref: 3-1

HUB,CLUTCH SLEEVE

€ 54.00

3-2

2141048000
ref: 3-2
OPT

HUB,CLUTCH SLEEVE

€ 54.00

4

0914016001
ref: 4

NUT

€ 4.50

5

0916717002
ref: 5

WASHER,LOCK

€ 2.00

6

0821117282
ref: 6

WASHER

€ 3.00

7

0944312010
ref: 7

SPRING

€ 2.00

8

0926102001
ref: 8

PIN(2.5X19.8)

€ 1.50

9-1

2144128301
ref: 9-1

PLATE,CLUTCH DRIVE

€ 8.50

9-2

2144136200
ref: 9-2
OPT

PLATE,CLUTCH DRIVE (MCA)

€ 11.50

10-1

2145128000
ref: 10-1

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

10-2

2145136200
ref: 10-2
OPT

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 5.00

11

2146028000
ref: 11

PLATE,CLUTCH PRESSURE

€ 21.50

12

2311139101
ref: 12

ROD,CLUTCH PUSH

€ 11.50

13

2311128000
ref: 13

ROD,CLUTCH PUSH

€ 15.50

14

0928506006
ref: 14

OIL SEAL

€ 13.00

15

2312139101
ref: 15

PIECE,CLUTCH PUSH

€ 14.00

16

0926310002
ref: 16

BEARING(10X22X2.8)

€ 8.50

17

2320039102
ref: 17

SCREW ASSY,CLUTCH RELEASE

€ 25.00

18

0913406001
ref: 18

SCREW

€ 3.00

19

0916006019
ref: 19

WASHER(6.5X16X1.2)

€ 1.50

20

0831022068
ref: 20

NUT 6MM

€ 2.50

21

2324123000
ref: 21

COVER,CLUTCH RELEASE SCREW

€ 12.00

22

0928105001
ref: 22

SEAL,DUST(5.3X13X5)

€ 2.50

23

0211205168
ref: 23

SCREW

€ 2.50

24

2322207000
ref: 24

PIECE,RELEASE ARM END

€ 5.00

25

0944308001
ref: 25

SPRING

€ 3.00

26

2147136200
ref: 26
OPT

SEAT,WAVE WASHER

€ 43.50

27

0916498001
ref: 27
OPT

WASHER

€ 8.50

28

0938191001
ref: 28
OPT

CIRCLIP

€ 10.00

29

0944312018
ref: 29
OPT

SPRING

€ 3.00

all assemblies
