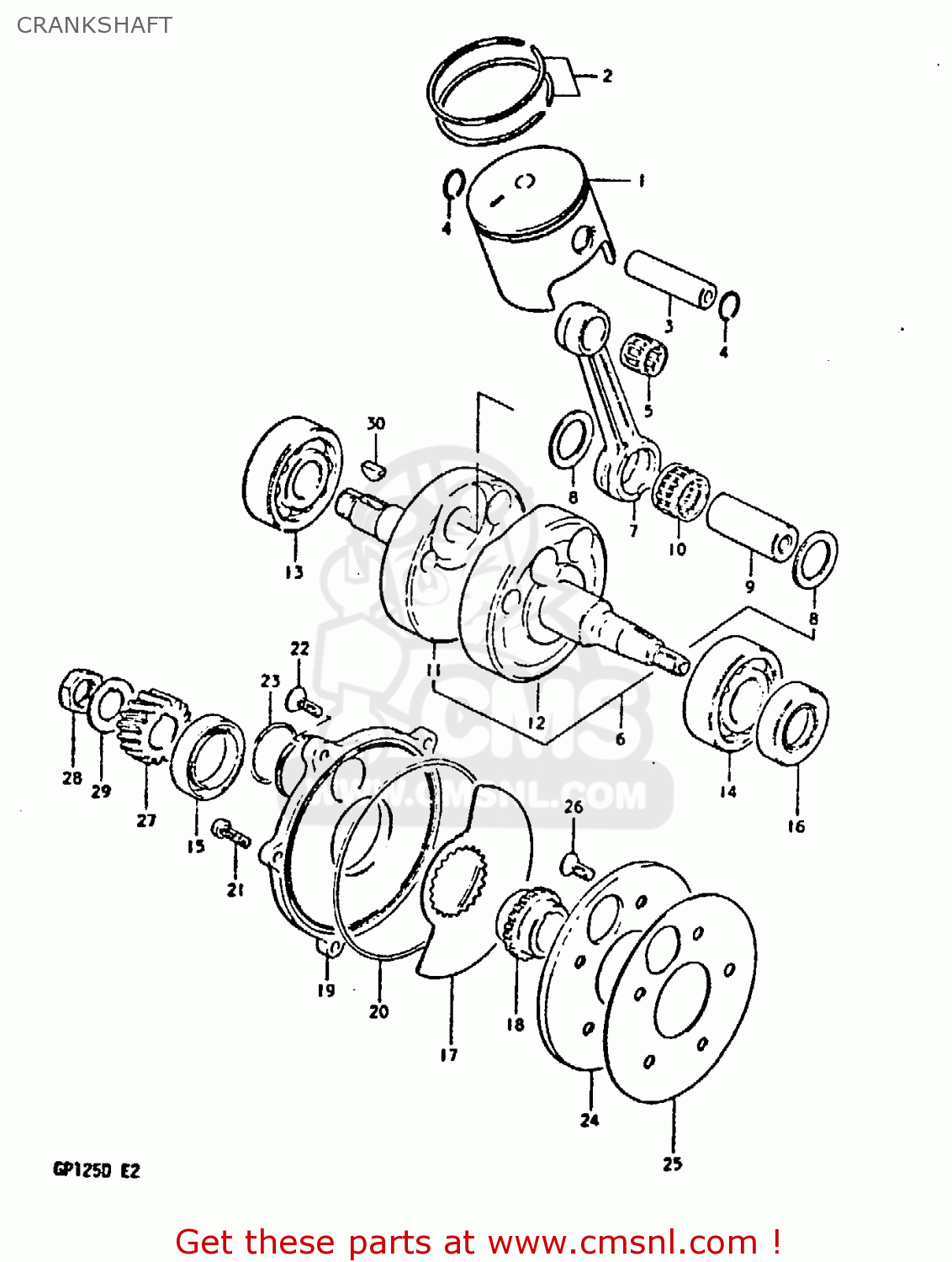

CRANKSHAFT

ref

part #

description

quantity

1-1

1211039102
ref: 1-1

PISTON

€ 47.00

1-2

1211039102050
ref: 1-2
OPT

PISTON (56.5MM)

€ 79.50

1-3

1211039102100
ref: 1-3
OPT

PISTON (57.0MM)

€ 116.50

2-1

1214028011
ref: 2-1
FROM 12140-28010

RING SET,PISTON

€ 41.50

2-2

1214028011050
ref: 2-2
OPT, FROM 12140-2801

RING SET,PISTON(OS:0.50)

€ 42.00

2-3

1214028011100
ref: 2-3
OPT,FROM 12140-28010

RING SET,PISTON(OS:1.0)

€ 60.50

3

1215111001
ref: 3

PIN,PISTON

€ 19.50

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314014
ref: 5

BEARING

€ 10.00

6

1220039120
ref: 6

CRANKSHAFT ASSY

€ 453.50

7

1216112002
ref: 7

CONNECTING ROD

€ 54.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221110302
ref: 9

PIN,CRANK

€ 25.00

10

0926319009
ref: 10

BEARING(19X25X16)

€ 15.00

11

1222139101
ref: 11

CRANKSHAFT,R

€ 0.00

12

1226139101
ref: 12

CRANKSHAFT, LH

€ 90.50

13

0926220009
ref: 13

BEARING

€ 19.00

14

0926225052
ref: 14

BEARING

€ 31.50

15

0928330023
ref: 15

SEAL,OIL(30X44X7)

€ 8.50

16

0928325066
ref: 16

SEAL,OIL(25X44X7)

€ 7.00

17

1241139100
ref: 17

PLATE,CRANKSHAFT VALVE

€ 25.00

18

1242139101
ref: 18

GUIDE, VALVE

€ 19.50

19

1245039100
ref: 19

SEAT, OUTER VALVE

€ 54.00

20

0928000013
ref: 20

O RING(D:2,ID:108.6)

€ 6.50

21

0211206208
ref: 21

SCREW

€ 2.00

22

0212206208
ref: 22

SCREW

€ 2.00

23

0928028003
ref: 23

O RING(D:2.4,ID:28.7)

€ 2.50

24

1246139101
ref: 24

SEAT,CRANKCASE INNER VALVE

€ 25.00

25

1247139110
ref: 25

GASKET

€ 6.50

26

0212206168
ref: 26

SCREW

€ 2.00

27

2111139100
ref: 27

GEAR,PRIMARY DRIVE

€ 0.00

28

0914016001
ref: 28

NUT

€ 4.50

29

0916616009
ref: 29

WASHER

€ 1.50

30

0834131059
ref: 30

KEY

€ 3.00
