FUEL COCK
GP125U 1981 (X) SWEDEN GREECE (E17 E41)

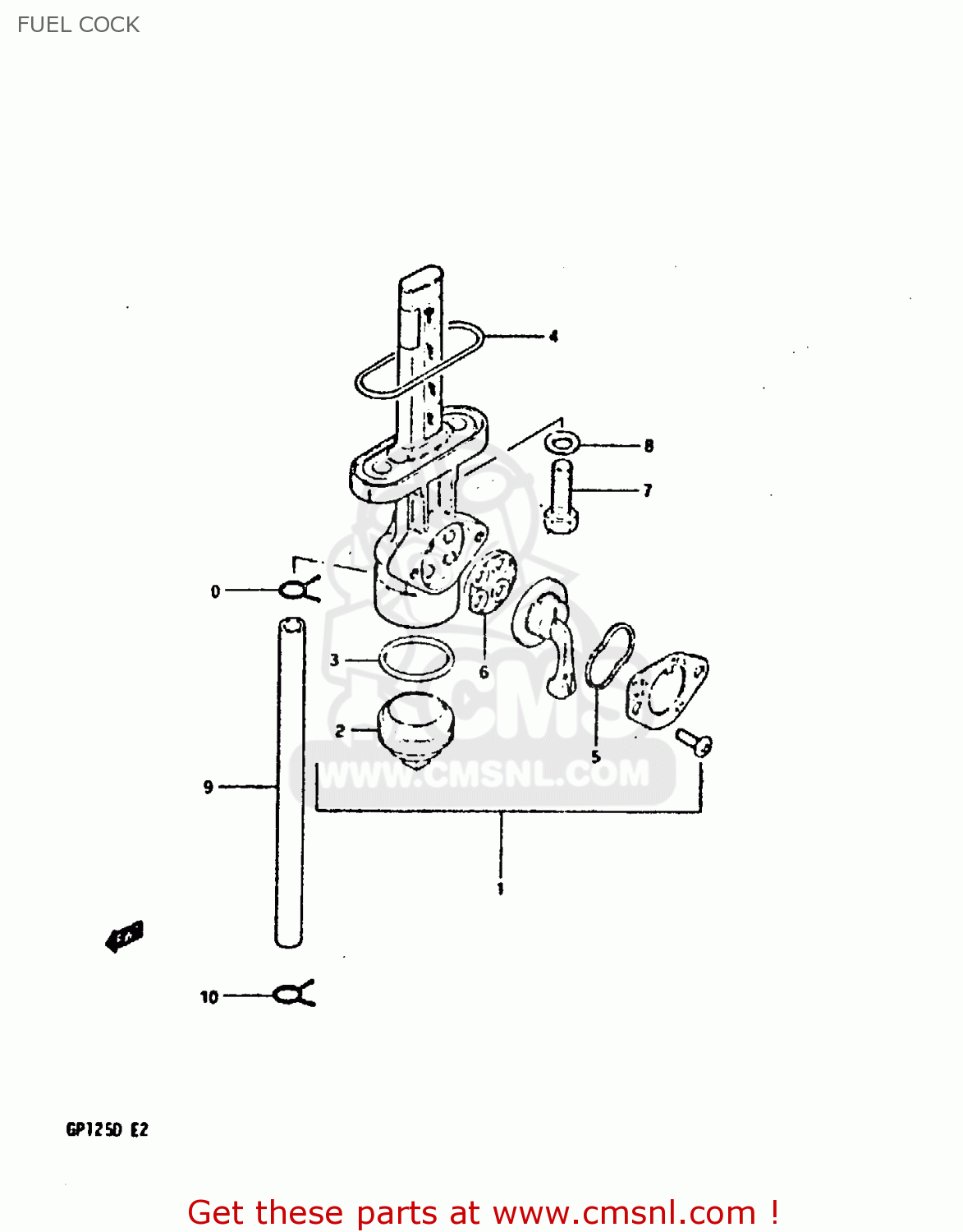

Fuel cock diagram GP125U 1981 (X) SWEDEN GREECE (E17 E41)
FUEL COCK GP125U 1981 (X) SWEDEN GREECE (E17 E41)
×
prices are in EUR
ref
part #
description
quantity
1
4430022604
ref: 1
COCK ASSEMBLY,FUEL
€ 53.00
2
4434728601
ref: 2
CUP,FUEL COCK
€ 6.00
3
4434628070
ref: 3
GASKET,FILTER (NAS)
€ 2.50
4
4434828070
ref: 4
O RING,FUEL COCK
€ 4.00
5
4435428070
ref: 5
WASHER,LEVER
€ 4.00
6
4434128070
ref: 6
GASKET,LEVER (NAS)
€ 3.50
7
0912806006
ref: 7
BOLT(6X20)
€ 1.50
8
0916806010
ref: 8
GASKET
€ 1.50
9-1
0934305037
ref: 9-1
MODEL X
HOSE
€ 12.00
9-2
0934305165
ref: 9-2
MODEL D
HOSE,FUEL
€ 12.00
10
0940108402
ref: 10
CLIP
€ 1.50
