KICK STARTER
GP125U 1981 (X) SWEDEN GREECE (E17 E41)

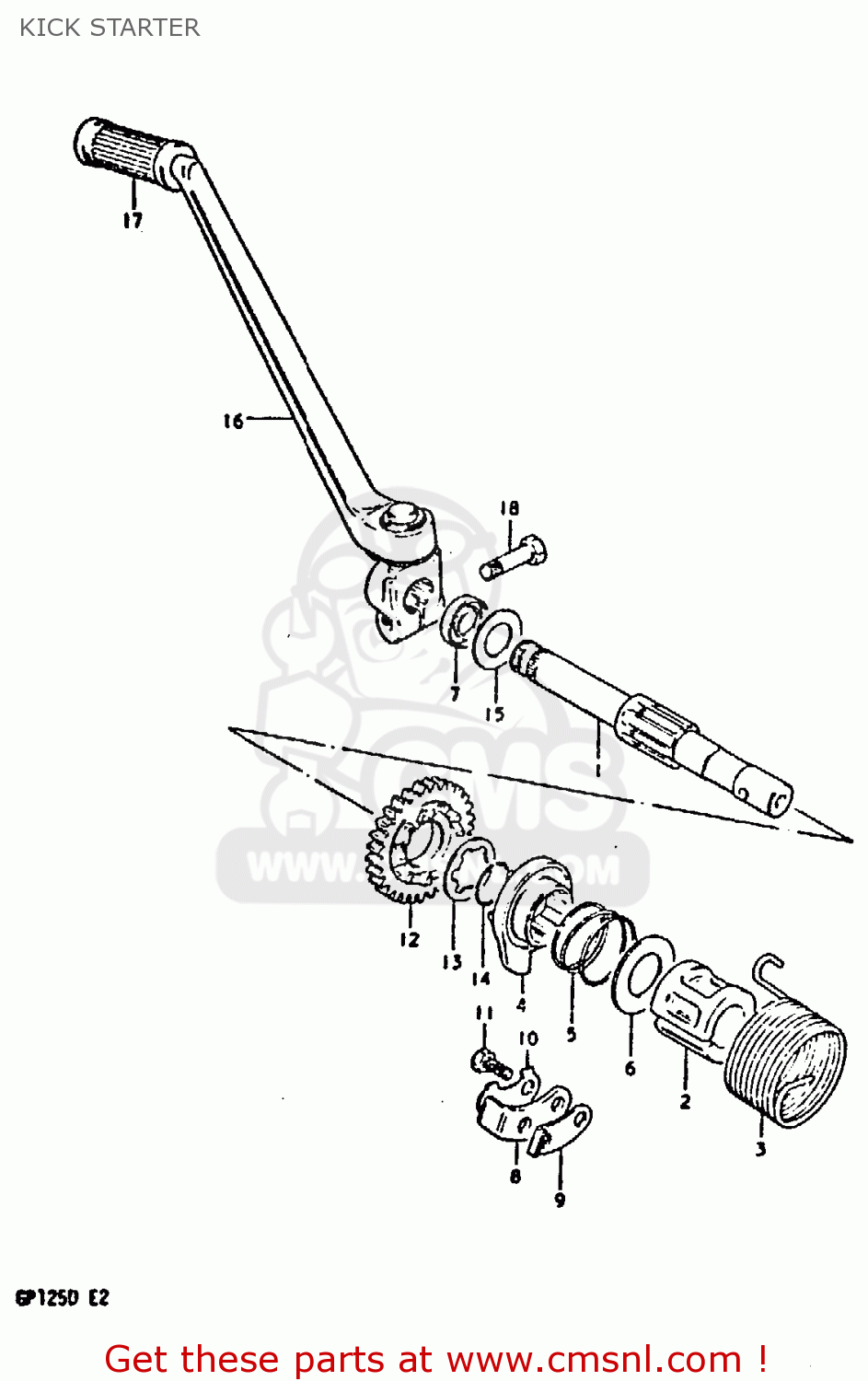

Kick starter diagram GP125U 1981 (X) SWEDEN GREECE (E17 E41)
KICK STARTER GP125U 1981 (X) SWEDEN GREECE (E17 E41)
×
prices are in EUR
ref
part #
description
quantity
1
2621139100
ref: 1
SHAFT,KICK STARTER
€ 49.50
2
2622141100
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 7.00
3
0944845008
ref: 3
SPRING
€ 16.00
4
2623130002
ref: 4
STARTER,KICK
€ 47.50
5
0944032002
ref: 5
SPRING
€ 2.00
6
0821117342
ref: 6
WASHER
€ 3.00
7
0928516002
ref: 7
SEAL,OIL(16X30X8)
€ 6.50
8
2623230000
ref: 8
GUIDE,KICK STARTER
€ 6.00
9
2623330000
ref: 9
STOPPER,KICK STARTER
€ 4.00
10
0916906003
ref: 10
WASHER
€ 1.50
11
0110706168
ref: 11
BOLT, UPPER
€ 3.00
12
2624048000
ref: 12
GEAR,KICK STARTER DRIVE
€ 80.00
13
0916722007
ref: 13
WASHER,LOCK
€ 3.50
14
0938022003
ref: 14
CIRCLIP
€ 13.50
15
0916016003
ref: 15
WASHER(16X30X1)
€ 2.50
16
2630039100
ref: 16
LEVER ASSY,KICK STARTER
€ 181.00
17
2635201000
ref: 17
RUBBER,KICK STARTER PEDAL
€ 3.50
18
0110708258
ref: 18
BOLT
€ 2.50
