REAR BRAKE
GP125U 1981 (X) SWEDEN GREECE (E17 E41)

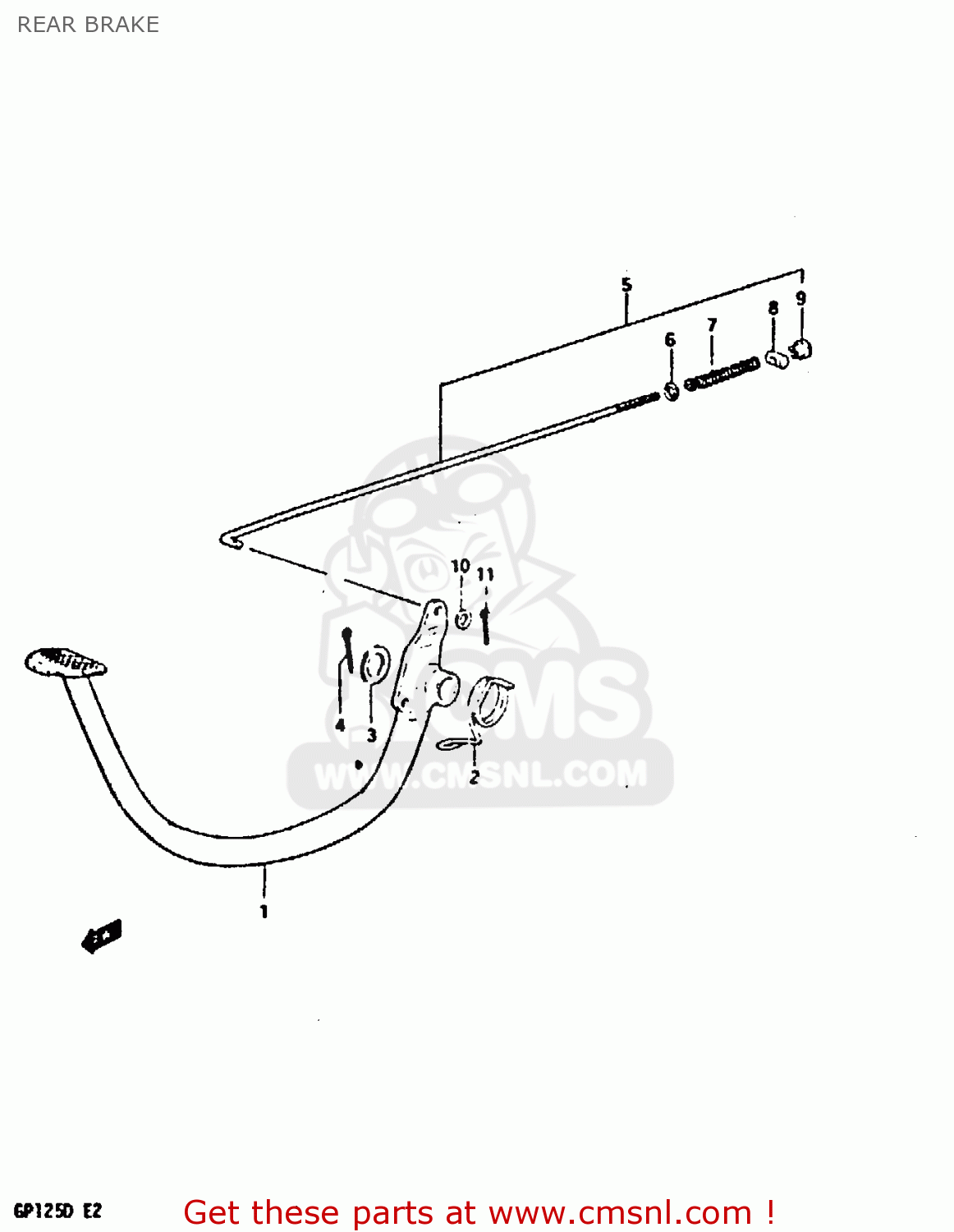

Rear brake diagram GP125U 1981 (X) SWEDEN GREECE (E17 E41)
REAR BRAKE GP125U 1981 (X) SWEDEN GREECE (E17 E41)
×
prices are in EUR
ref
part #
description
quantity
1
4311039600
ref: 1
PEDAL,BRAKE
€ 281.00
2
0944831013
ref: 2
SPRING
€ 3.00
3
0916015002
ref: 3
WASHER(15.5X26X2.3)
€ 2.00
4
0411130308
ref: 4
COTTER PIN
€ 1.50
5
4330039100
ref: 5
ROD ASSY, REAR BRAKE
€ 16.00
6
0832221068
ref: 6
WASHER
€ 2.00
7
0944009004
ref: 7
SPRING
€ 2.00
8
0920911002
ref: 8
PIN(11X18)
€ 2.00
9-1
0915006001
ref: 9-1
MODEL X
NUT
€ 3.50
9-2
0915006009
ref: 9-2
MODEL Z
NUT (6MM)
€ 3.50
10
0832221058
ref: 10
WASHER
€ 2.50
11
0411120208
ref: 11
PIN 20X20
€ 1.50
