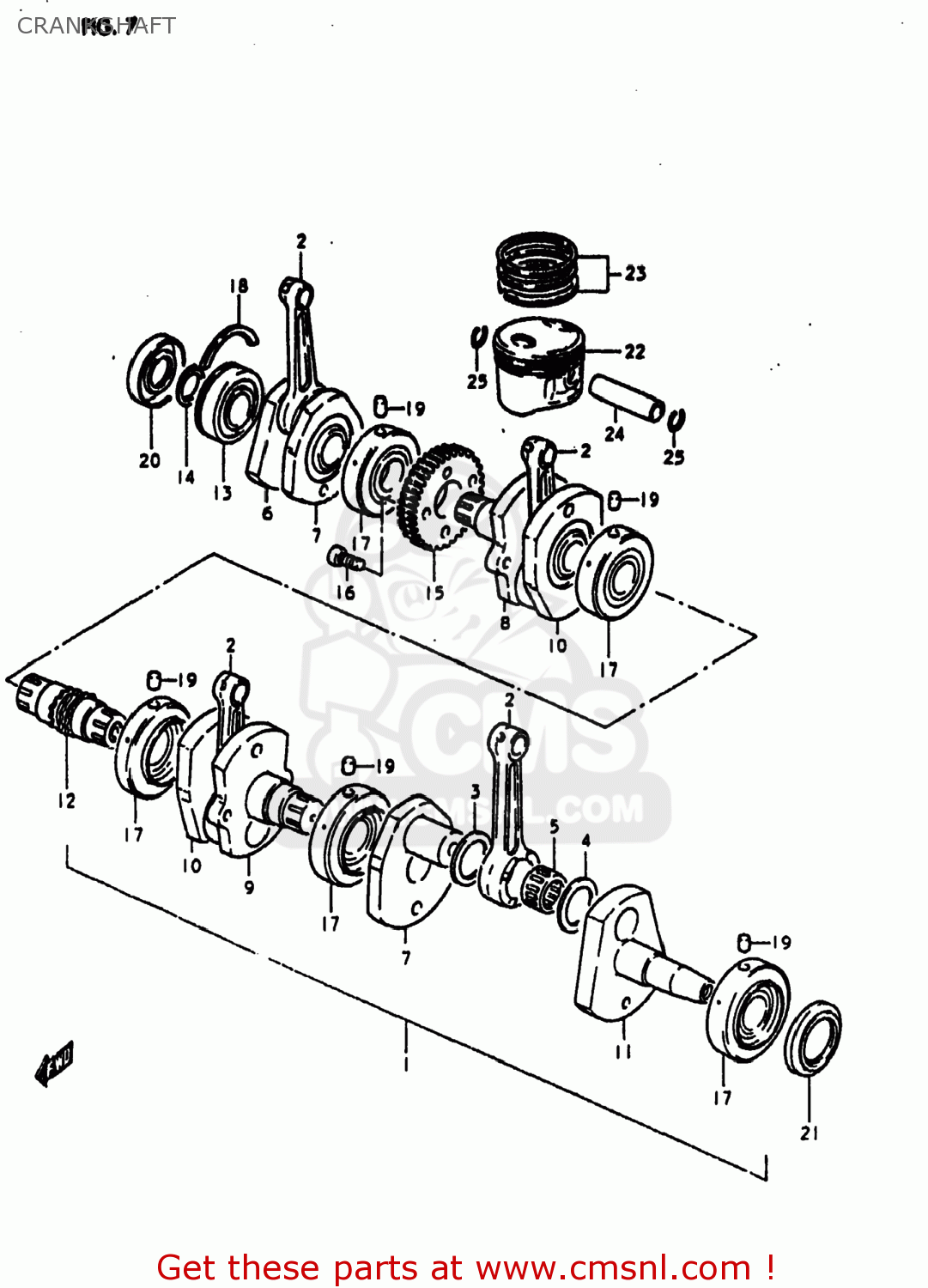

CRANKSHAFT

ref

part #

description

quantity

1

1220049003
ref: 1
12200-49006

CRANKSHAFT ASSEMBLY

€ 621.00

2

1216149000
ref: 2

ROD,CONNECTING

€ 125.50

3

0916029008
ref: 3

WASHER (29X48X2)

€ 6.00

4

0916029009
ref: 4

WASHER (29X48X1)

€ 5.50

5

0926329002
ref: 5

BEARING(29X39X20)

€ 28.50

6

1222049000
ref: 6

CRANKSHAFT

€ 0.00

7

1223049000
ref: 7

WEB,CRANK

€ 153.00

8

1224149002
ref: 8

CRANKSHAFT

€ 0.00

9

1227149010
ref: 9
12241-49002

CRANKSHAFT

€ 0.00

10

1225049000
ref: 10

WEB,CRANK,MIDDLE

€ 127.50

11

1226149001
ref: 11

CRANKSHAFT,LEFT

€ 135.00

12

1228149002
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 92.50

12

1228149002
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 92.50

13

0926230033
ref: 13

BEARING(30X72X19)

€ 47.00

14

0833111308
ref: 14
08331-3130A

CIRCLIP,30MM

€ 3.00

15

2111149002
ref: 15
21111-49004

GEAR,PRIMARY DRIVE

€ 56.50

16

0910608006
ref: 16
07130-0816A

BOLT

€ 3.00

17

0926432003
ref: 17
09264-32009

BEARING

€ 138.00

18

0939072004
ref: 18

C RING

€ 3.00

19

0422107129
ref: 19

PIN

€ 1.50

20

0928330021
ref: 20

SEAL,OIL(30X72X11)

€ 22.00

21

0928948002
ref: 21

SEAL,OIL(47.3X60X6.5)

€ 12.00

22-1

1211149001
ref: 22-1

PISTON

€ 103.00

22-2

1211149001050
ref: 22-2
12103-49810-050

PISTON 0.50

€ 136.50

22-3

1211149001100
ref: 22-3

PISTON(OS:1.0)

€ 142.50

23-1

1214049001
ref: 23-1

RING SET,PISTON

€ 73.50

23-2

1214049001050
ref: 23-2

RING SET,PISTON (OS:0.5)

€ 53.50

23-3

1214049001100
ref: 23-3
12140-44110

RING SET,PISTON (OS:1.0)

€ 61.50

24

1215115002
ref: 24
12151-13A00-0A0

PIN,PISTON (18MM)

€ 14.50

25

0938118002
ref: 25

CIRCLIP

€ 1.50

all assemblies
