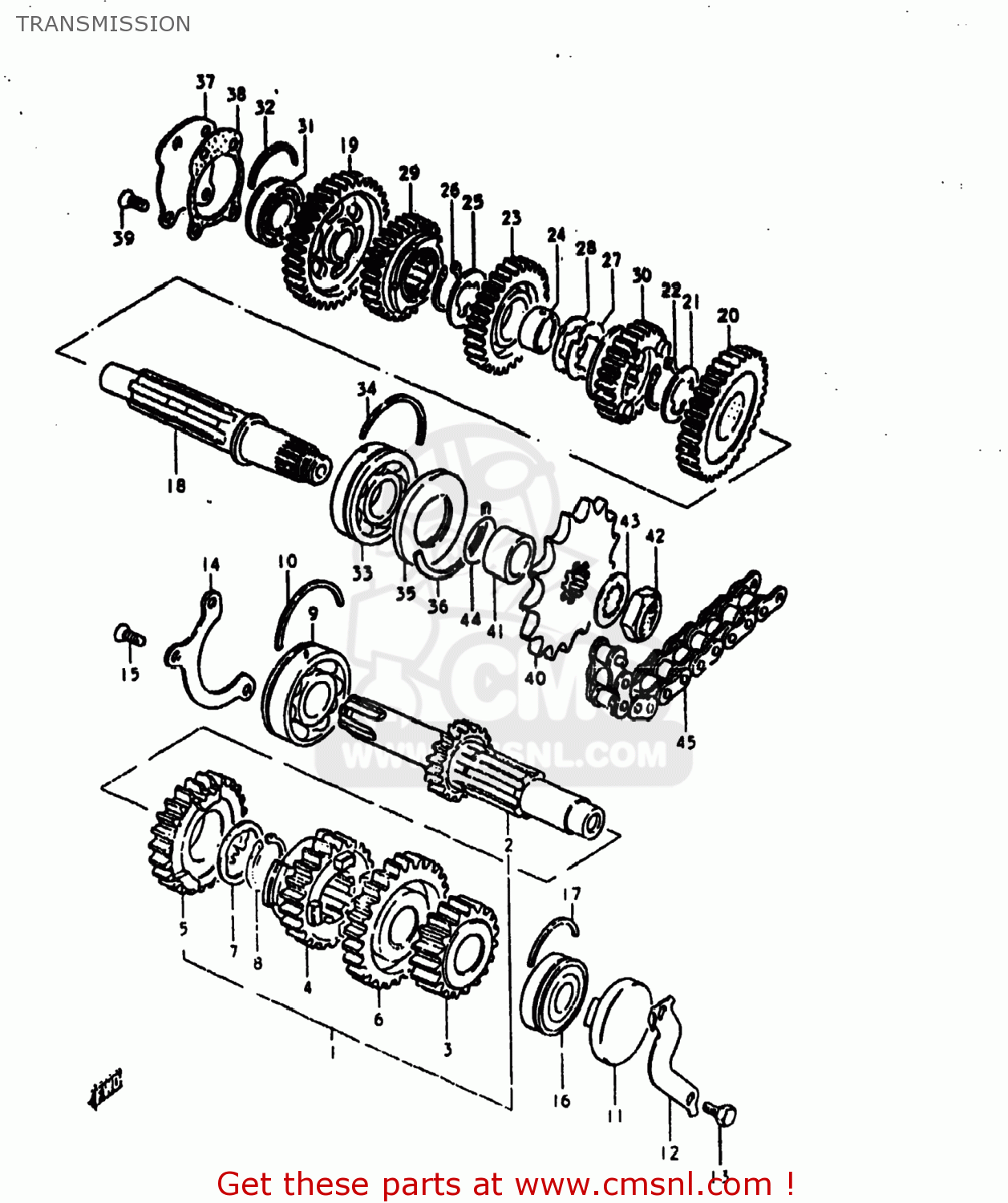

TRANSMISSION

ref

part #

description

quantity

1

2412049002
ref: 1

SHAFT ASSEMBLY,COUNTER

€ 404.00

2

2412149002
ref: 2

SHAFT,COUNTER

€ 125.00

3

2422149001
ref: 3

GEAR,SECOND DRIVE

€ 60.00

4

2423149000
ref: 4

GEAR,THIRD DRIVE

€ 104.50

5

2424049000
ref: 5

GEAR,FOURTH DRIVE

€ 104.50

6

2425049000
ref: 6

GEAR,FIFTH DRIVE

€ 108.50

7

0916728001
ref: 7

WASHER,LOCK

€ 3.00

8

0833111289
ref: 8
08331-3128A

CIRCLIP

€ 2.50

9

0926225051
ref: 9
09262-25105

BEARING(25X62X17)

€ 59.50

10

0939062006
ref: 10
09390-62012

C-RING

€ 5.00

11

0924147003
ref: 11
09241-47004

PLUG

€ 12.00

12

2311745000
ref: 12

RETAINER,CL PUSH ROD OIL SEAL

€ 14.00

13

0110706128
ref: 13
01500-06127

BOLT

€ 2.00

14

2474145000
ref: 14

RETAINER,CNTR SHAFT BEARING

€ 8.00

15

0212206168
ref: 15
02122-06167

SCREW

€ 2.00

16

0926220044
ref: 16

BEARING(20X47X14)

€ 30.00

17

0939047005
ref: 17

C-RING

€ 1.00

18

2413149001
ref: 18
24131-49002

SHAFT,DRIVE

€ 146.50

19

2431049001
ref: 19

GEAR,FIRST DRIVEN

€ 83.00

20

2432049000
ref: 20

GEAR,SECOND DRIVEN

€ 92.00

21

0916728001
ref: 21

WASHER,LOCK

€ 3.00

22

0833111289
ref: 22
08331-3128A

CIRCLIP

€ 2.50

23

2433149001
ref: 23

GEAR,THIRD DRIVEN

€ 103.50

24

2433249000
ref: 24

BUSH,3RD DRIVEN GEAR

€ 13.50

25

0916728001
ref: 25

WASHER,LOCK

€ 3.00

26

0833111289
ref: 26
08331-3128A

CIRCLIP

€ 2.50

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916928001
ref: 28

WASHER

€ 3.00

29

2434145000
ref: 29

GEAR,FOURTH DRIVEN

€ 96.00

30

2435149000
ref: 30

GEAR,FIFTH DRIVEN

€ 103.50

31

0926220041
ref: 31
09262-20044

BEARING

€ 30.00

32

0939047003
ref: 32

C RING

€ 3.00

33

0926225051
ref: 33
09262-25105

BEARING(25X62X17)

€ 59.50

34

0939062006
ref: 34
09390-62012

C-RING

€ 5.00

35

0928332012
ref: 35

SEAL,OIL(32X62X7)

€ 19.00

36

0939062008
ref: 36

C RING

€ 3.50

37

2476145000
ref: 37

PLATE,DRIVE SHAFT

€ 4.50

38

2476245000
ref: 38
24762-45000-H17

GASKET,DRIVESHAFT PLATE (MCA)

€ 2.50

39

0212206168
ref: 39
02122-06167

SCREW

€ 2.00

40

2751049001
ref: 40
27510-49012

SPROCKET,ENGINE

€ 62.50

41

0918025052
ref: 41

SPACER(25X32X18.6)

€ 9.00

42

0915920001
ref: 42
09159-20004

NUT

€ 12.00

43

0916725014
ref: 43
09167-25019

WASHER

€ 2.50

44

0928025001
ref: 44

O RING(D:1,ID:24.5)

€ 2.50

45

2760049810
ref: 45
27600-49210

CHAIN ASSEMBLY,DRIVE

€ 266.50
