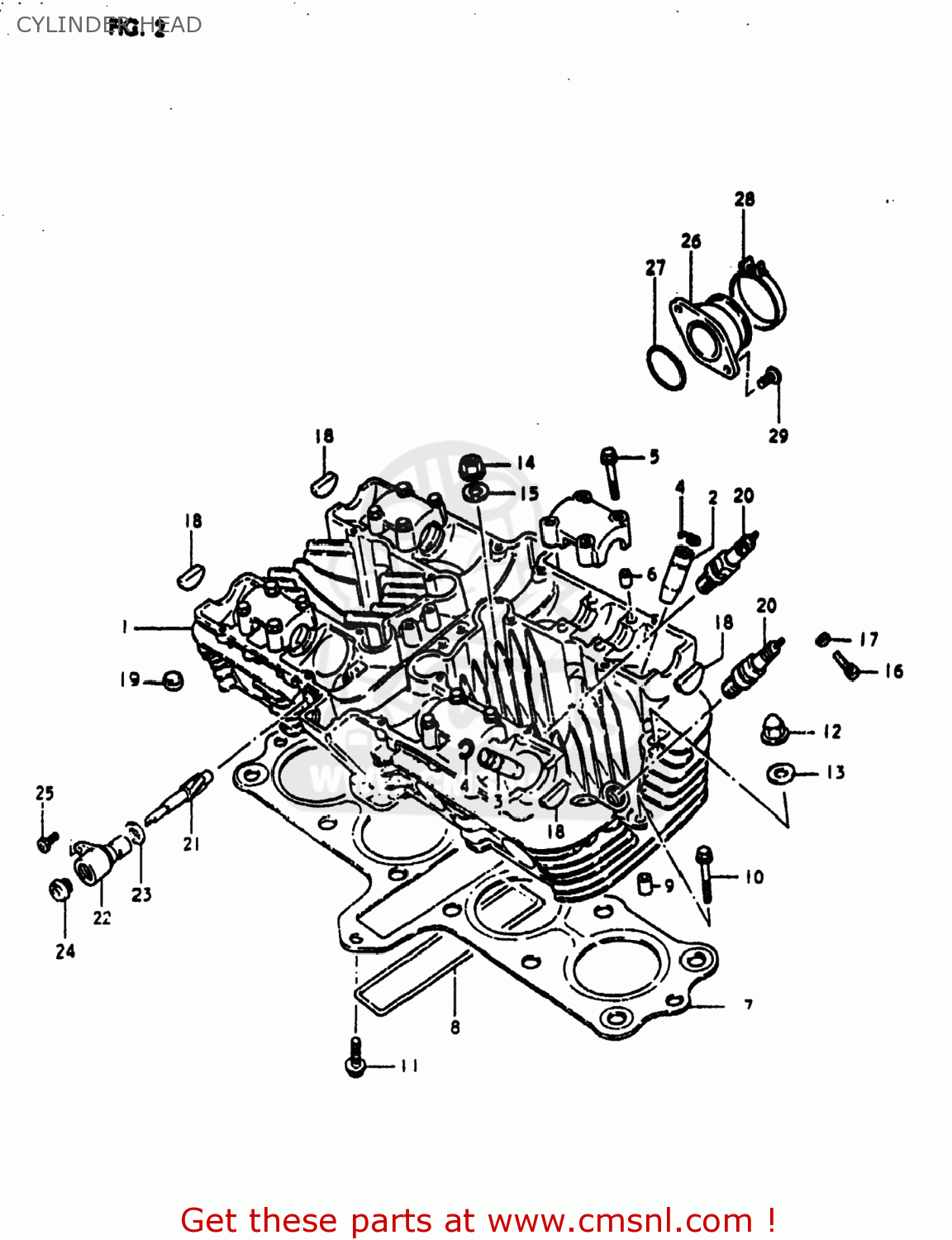

CYLINDER HEAD

ref

part #

description

quantity

1

1110049830
ref: 1
11100-49880

HEAD ASSEMBLY,CYLINDER

€ 1,231.50

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114149002
ref: 7
11141-49410

GASKET,CYLINDER HEAD (MCA)

€ 102.50

8

0928099003
ref: 8

O RING(D:3,ID:26X157)

€ 34.00

9

0421111189
ref: 9

PIN

€ 2.00

10

0151706458
ref: 10
01550-06457

BOLT,UNDER

€ 2.50

11

0151706308
ref: 11
01550-06307

BOLT

€ 2.00

12

0915910026
ref: 12

NUT

€ 6.00

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

0831616108
ref: 14
08316-10107

NUT

€ 2.00

15

0916010039
ref: 15

WASHER(10.5X22X2.3)

€ 2.50

16

0910605006
ref: 16
07130-0510B

BOLT

€ 2.00

17

0916805010
ref: 17

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

18

0924123002
ref: 18

PLUG

€ 8.50

19

1115245000
ref: 19
11152-38A00

PAD

€ 3.50

20-1

0948200225
ref: 20-1
09482-00091

SPARK PLUG

€ 3.00

20-2

0948200196
ref: 20-2
09482-00247-111

SPARK PLUG W24ES-U

€ 3.50

21

2643145001
ref: 21
26431-45002

GEAR,TACHOMETER DRIVEN

€ 43.00

21

2643145001
ref: 21
26431-45002

GEAR,TACHOMETER DRIVEN

€ 43.00

22

2644149000
ref: 22

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

23

2645145000A
ref: 23

SEAL,TACHOMETER DRIVEN

€ 4.50

24

0928905002
ref: 24

SEAL,OIL(5X12X8)

€ 11.00

25

0912805101
ref: 25

SCREW(5X12)

€ 1.50

26

1311049010
ref: 26

PIPE,INTAKE

€ 38.50

27

0928040003
ref: 27
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

28

0940254303
ref: 28

CLAMP

€ 4.00

29

0211206168
ref: 29
02112-06167

SCREW

€ 2.50
