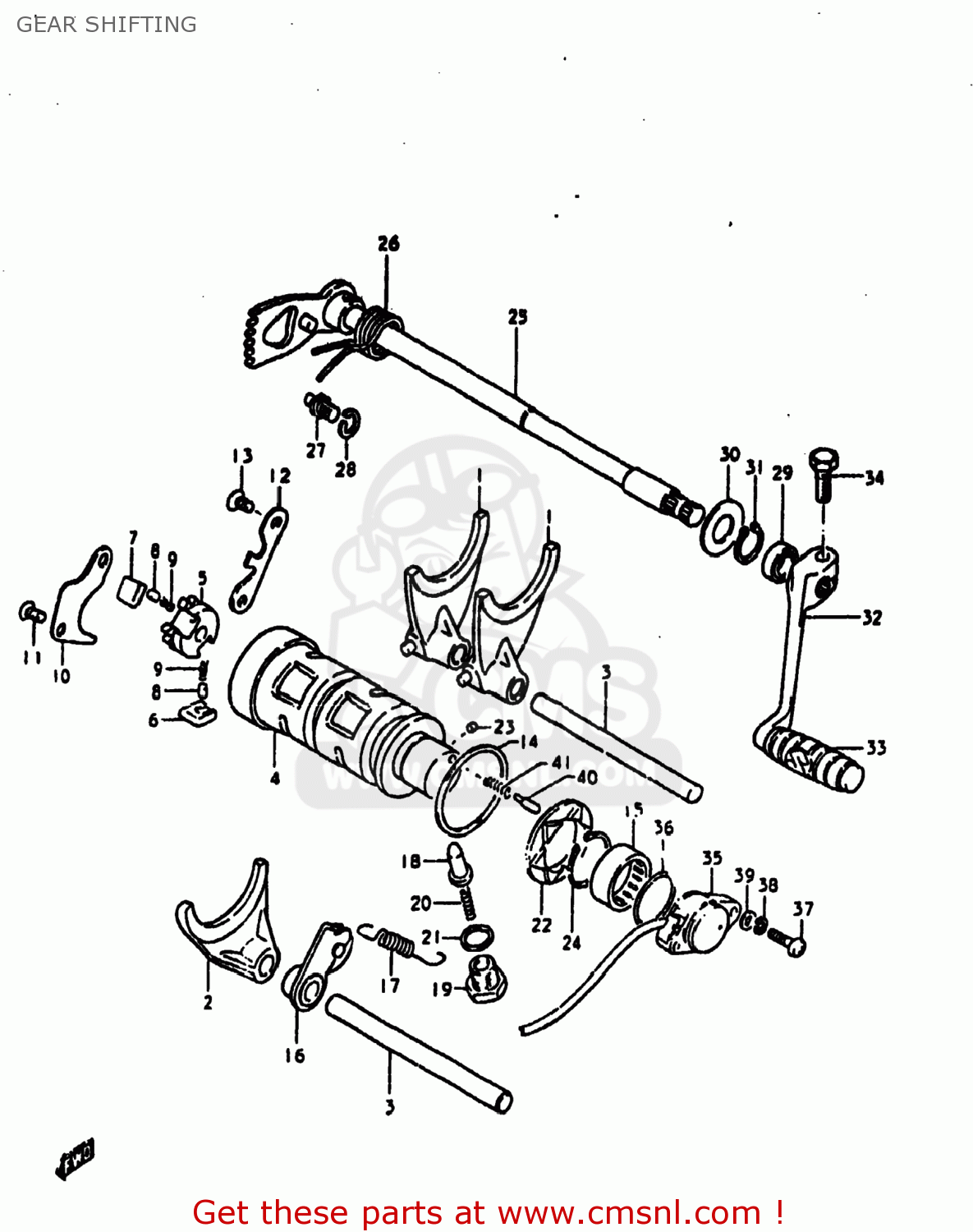

GEAR SHIFTING

ref

part #

description

quantity

1

2521134000
ref: 1

FORK,GEAR SHIFT NO.1

€ 54.50

2

2523134000
ref: 2
25231-34X00

FORK,GEAR SHIFT NO.3

€ 72.50

3

2541131000
ref: 3
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

4

2531049000
ref: 4

CAM,GEAR SHIFT

€ 148.00

5

2532211000
ref: 5
25322-31310

RETAINER,GEAR SHIFT CAM

€ 14.50

6

2532311000
ref: 6
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532411000
ref: 7
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533111001
ref: 10

LIFTER,GEAR SHIFT PAWL

€ 2.50

11

0212206128
ref: 11
02122-06127

SCREW

€ 3.00

12

2534118000
ref: 12

GUIDE,GEAR SHIFT CAM

€ 51.50

13

0212206128
ref: 13
02122-06127

SCREW

€ 3.00

14

0916040001
ref: 14

WASHER(40X45X1)

€ 2.50

15

0926325018
ref: 15

BEARING(25X32X12)

€ 17.50

16

2535034000
ref: 16

STOPPER,GEAR SHIFT CAM

€ 10.50

17

0944308012
ref: 17

SPRING

€ 3.00

18

2535130010
ref: 18

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

19

2535430000
ref: 19

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

20

0944006018
ref: 20

SPRING

€ 1.50

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

2538145000
ref: 22

PLATE,GEAR SHIFT CAM STOPPER

€ 14.00

23

0621104063
ref: 23
04221-04069

PIN 4X6

€ 2.00

24

0833111258
ref: 24
08331-3125A

CIRCLIP

€ 2.00

25

2551049000
ref: 25
25510-49001

SHAFT,GEAR SHIFT

€ 63.00

26

0944426012
ref: 26
09444-26013

SPRING

€ 3.50

27

2567101000
ref: 27
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0916208005
ref: 28
08321-01087

WASHER

€ 2.00

29

0928512002
ref: 29
09285-12006

OIL SEAL

€ 7.00

30

0916012020
ref: 30
09160-12089

WASHER (12.5X27X1.6)

€ 2.00

31

0938412001
ref: 31
08331-3112A

SPRING,RETAINER

€ 2.00

32

2560049000
ref: 32

LEVER ASSY,GEAR SHIFT

€ 54.00

33

2565216500
ref: 33

RUBBER,GEAR SHIFT PEDAL

€ 4.00

34

0110708208
ref: 34
01500-08207

BOLT

€ 3.00

35

3772044600
ref: 35

TERMINAL BASE,NEUTRAL SWITCH

€ 51.00

36

0928026003
ref: 36
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

37

0211205208
ref: 37
02112-05207

SCREW 5X20

€ 3.00

38

0832121058
ref: 38
08321-0105A

LOCK WASHER

€ 2.00

39

0832221058
ref: 39
08322-01057

WASHER

€ 2.50

40

0920905011
ref: 40

PIN(5X15.5)

€ 2.00

41

0944004010
ref: 41

SPRING

€ 1.50
