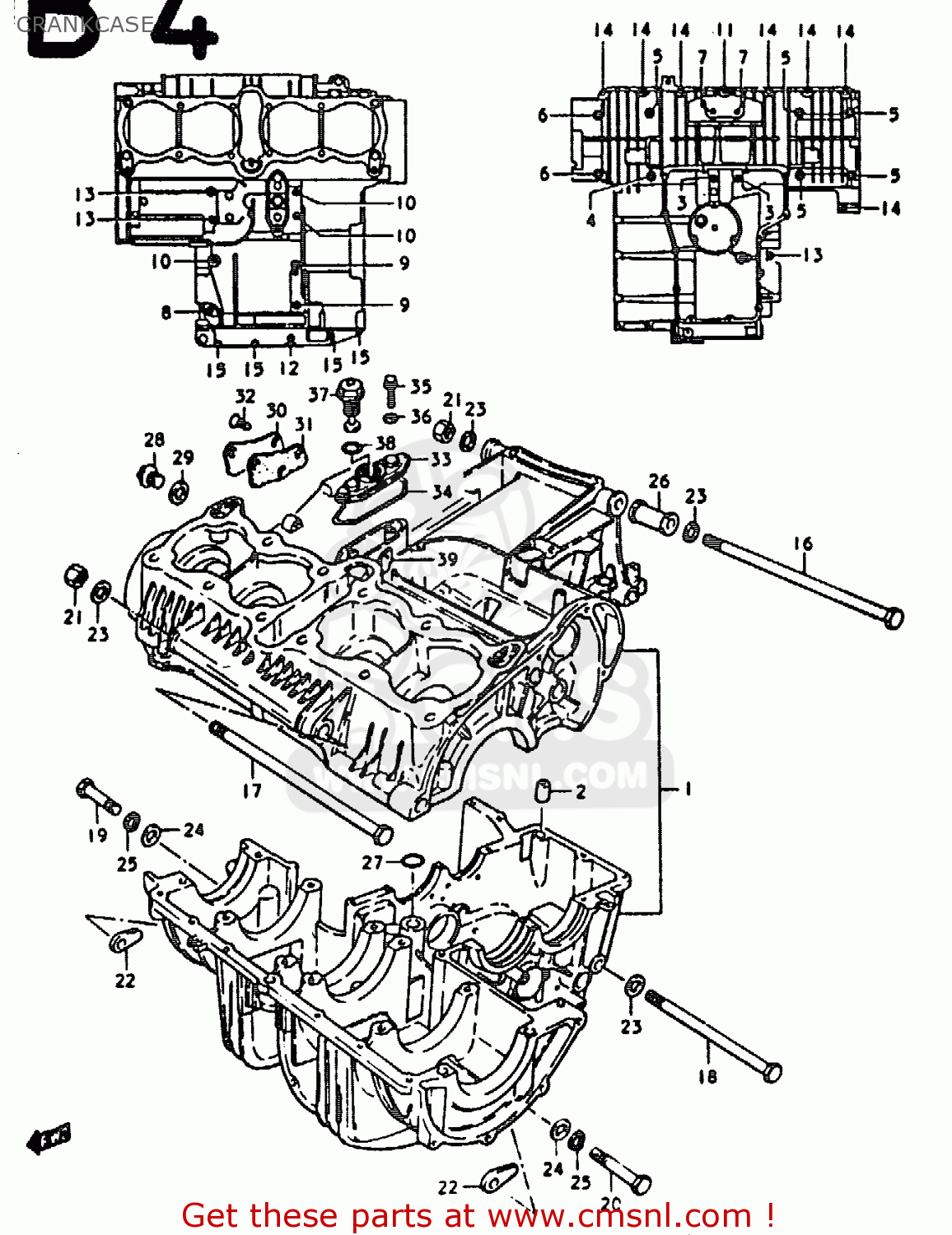

CRANKCASE

ref

part #

description

quantity

1

1130049810
ref: 1

CRANKCASE SET

€ 997.00

2

0920613001
ref: 2

PIN

€ 2.50

3

0910308020
ref: 3
8*125

BOLT

€ 8.00

4

0910308009
ref: 4
8*100

BOLT

€ 5.00

5

0151708908
ref: 5

BOLT 8X90

€ 3.50

6

0151708658
ref: 6

BOLT 8X65

€ 3.00

7

0151708608
ref: 7

BOLT

€ 3.50

8

0151708508
ref: 8

BOLT

€ 3.50

9

0151706858
ref: 9

BOLT

€ 3.50

10

0151706758
ref: 10

BOLT (6X75)

€ 2.50

11

0151706508
ref: 11

BOLT ,6X50

€ 2.00

12

0151706458
ref: 12

BOLT,UNDER

€ 2.50

13

0151706408
ref: 13

BOLT

€ 2.50

14

0151706358
ref: 14

BOLT 6X35

€ 2.50

15

0151706308
ref: 15

BOLT

€ 2.00

16

0910010110
ref: 16
10*265

BOLT 10X265

€ 57.00

17

0910110010
ref: 17
10*250

BOLT 10X250

€ 49.50

18

0910010078
ref: 18
10*165

BOLT(10X165)

€ 10.50

19

0110710608
ref: 19

BOLT 10X60

€ 3.50

20

0110710608
ref: 20

BOLT 10X60

€ 3.50

21

0915910011
ref: 21

NUT

€ 3.00

22

0915910020
ref: 22

NUT

€ 7.50

23

0832211108
ref: 23

WASHER

€ 2.50

24

0916010005
ref: 24
10*15*1.2

WASHER(10.5X20X3.2)

€ 2.00

25

0832121108
ref: 25

LOCK WASHER

€ 2.00

26

1161049000
ref: 26

SPACER,ENGINE MOUNT

€ 14.50

27

0928013001
ref: 27

O RING(D:3.2,ID:12.9)

€ 4.00

28

0924714012
ref: 28

PLUG (14X12)

€ 3.50

29

0916814004
ref: 29

GASKET(14X19.2X2) (NAS)

€ 2.50

30

1139445000
ref: 30

CAP,OIL GALLERY

€ 6.50

31

1149745000
ref: 31

GASKET,OIL GALLERY (MCA)

€ 13.00

32

0212206168
ref: 32

SCREW

€ 2.00

33

1644545000
ref: 33

HOUSING,OIL PRESSURE SWITCH

€ 28.00

34

1644845000
ref: 34

O RING,PRESSURE SWITCH HOUSING

€ 10.50

35

0151706258
ref: 35

BOLT

€ 2.50

36

0916806009
ref: 36

GASKET (NAS)

€ 2.00

37

3782045050
ref: 37

SWITCH ASSEMBLY

€ 30.00

38

0928019001
ref: 38

O RING(D:1.9,ID:18.8)

€ 1.50

39

3127145000
ref: 39

GROMMET,STARTING MOTOR

€ 5.50
