REAR SWINGING ARM

GS1000H 1978 (C) GENERAL EXPORT (E01)

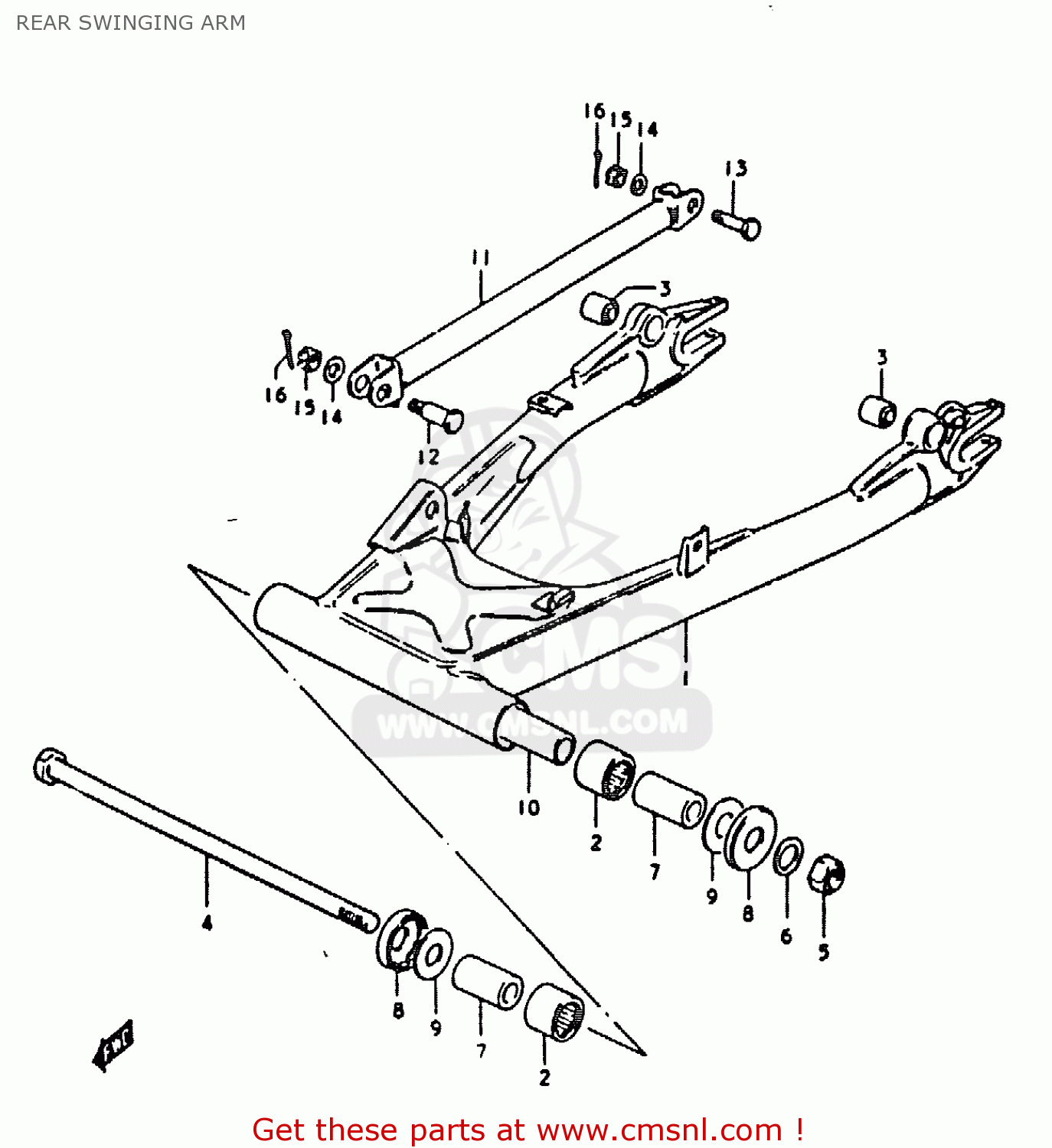

Rear swinging arm diagram GS1000H 1978 (C) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6110049810019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 261.50

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

0931910008
ref: 3

BUSH

€ 8.00

6121149000
ref: 4

SHAFT,REAR SWING ARM

€ 45.00

0831921168
ref: 5

NUT 16MM

€ 5.00

0832211168
ref: 6

WASHER

€ 2.00

6125149000
ref: 7

SPACER,RR SWGARM PIVOT

€ 17.50

6126249000
ref: 8

COVER,RR SWGARM DUST SEAL

€ 17.50

0821116381
ref: 9

WASHER

€ 2.50

6128249000
ref: 10

SPACER,RR SWGARM PIVOT CTR

€ 24.00

6431049000019
ref: 11

LINK,REAR TORQUE

€ 16.00

0911110011
ref: 12

BOLT

€ 8.00

0910110017
ref: 13

BOLT(10X39)

€ 5.00

0832211108
ref: 14

WASHER

€ 2.50

0831441108
ref: 15

NUT

€ 2.50

0411120208
ref: 16

PIN 20X20

€ 1.50
