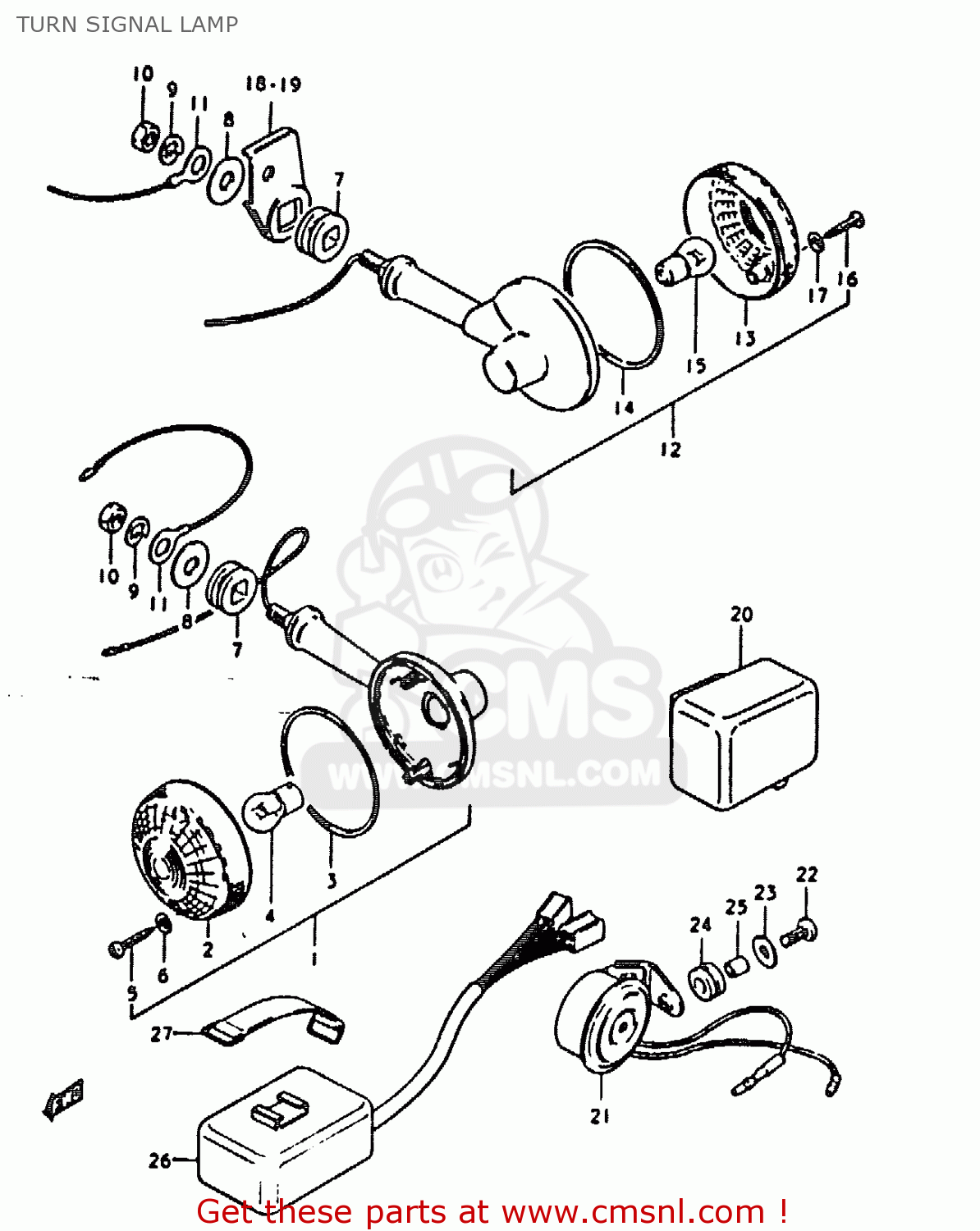

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560149030
ref: 1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 115.00

2

3561245010
ref: 2

LENS

€ 12.50

3

3561345010
ref: 3

GASKET (NAS)

€ 7.50

4

0947112006
ref: 4
12V, 23W

BULB(12V23W,STANLEY,A4577A)

€ 4.00

5

3562549030
ref: 5

BOLT

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3569032200
ref: 7

CUSHION

€ 38.50

8

0916008001
ref: 8
8.5*30*2.3

WASHER

€ 2.00

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

0831012088
ref: 10

NUT

€ 2.00

11

3685145100
ref: 11

LEAD WIRE,EARTH

€ 7.50

12

3560149030
ref: 12

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 115.00

13

3561245010
ref: 13

LENS

€ 12.50

14

3561345010
ref: 14

GASKET (NAS)

€ 7.50

15

0947112006
ref: 15
12V, 23W

BULB(12V23W,STANLEY,A4577A)

€ 4.00

16

3562549030
ref: 16

BOLT

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

4158045000019
ref: 18

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

19

4159045000019
ref: 19

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

20-2

3861045031
ref: 20-2

RELAY,TURN SIGNAL

€ 54.50

21-2

3879049001
ref: 21-2

BUZZER ASSEMBLY,TURN SIGNAL

€ 22.50

22-2

0211206108
ref: 22-2

SCREW

€ 1.50

23

0916006007
ref: 23
6.5*18*1.6

WASHER

€ 2.00

25-2

0916106007
ref: 25-2

WASHER(6X13X2)

€ 2.50

all assemblies
