REAR MASTER CYLINDER

GS1000H 1978 (C) GENERAL EXPORT (E01)

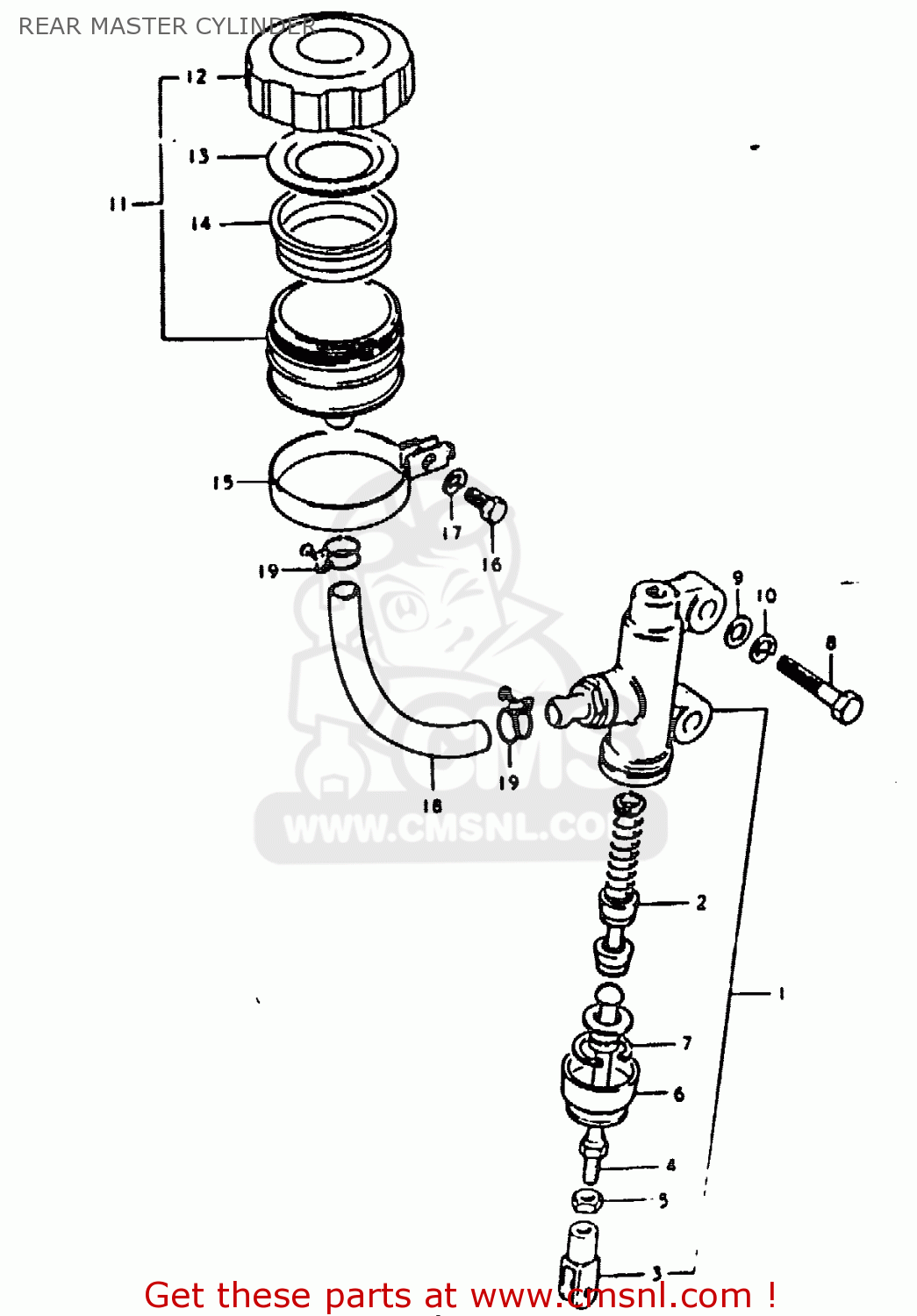

Rear master cylinder diagram GS1000H 1978 (C) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6960047000
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

6960045810
ref: 2

PISTON/CUP SET

€ 53.00

6969245001
ref: 3

YOKE

€ 11.00

6967045000
ref: 4

ROD,PUSH

€ 18.50

0831012088
ref: 5

NUT

€ 2.00

6969145000
ref: 6

BOOT

€ 6.50

5116270040
ref: 7

CIRCLIP

€ 3.00

0110708308
ref: 8

BOLT (8X30)

€ 2.50

0832211088
ref: 9

WASHER

€ 2.00

0832121088
ref: 10

LOCK WASHER

€ 2.00

11-2

6974047001
ref: 11-2

TANK ASSEMBLY,RESERVOIR

€ 41.00

12-2

5966918605
ref: 12-2

CAP

€ 16.50

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

5966718441
ref: 14

DIAPHRAGM

€ 8.50

0940251601
ref: 15

CLAMP

€ 6.50

0110706168
ref: 16

BOLT, UPPER

€ 3.00

0832121068
ref: 17

LOCK WASHER

€ 2.50

6973149000
ref: 18

HOSE,RESERVOIR TANK

€ 34.00

0940016301
ref: 19

CLAMP

€ 4.50
