CLUTCH
GS1100ES 1982 (Z) USA (E03)

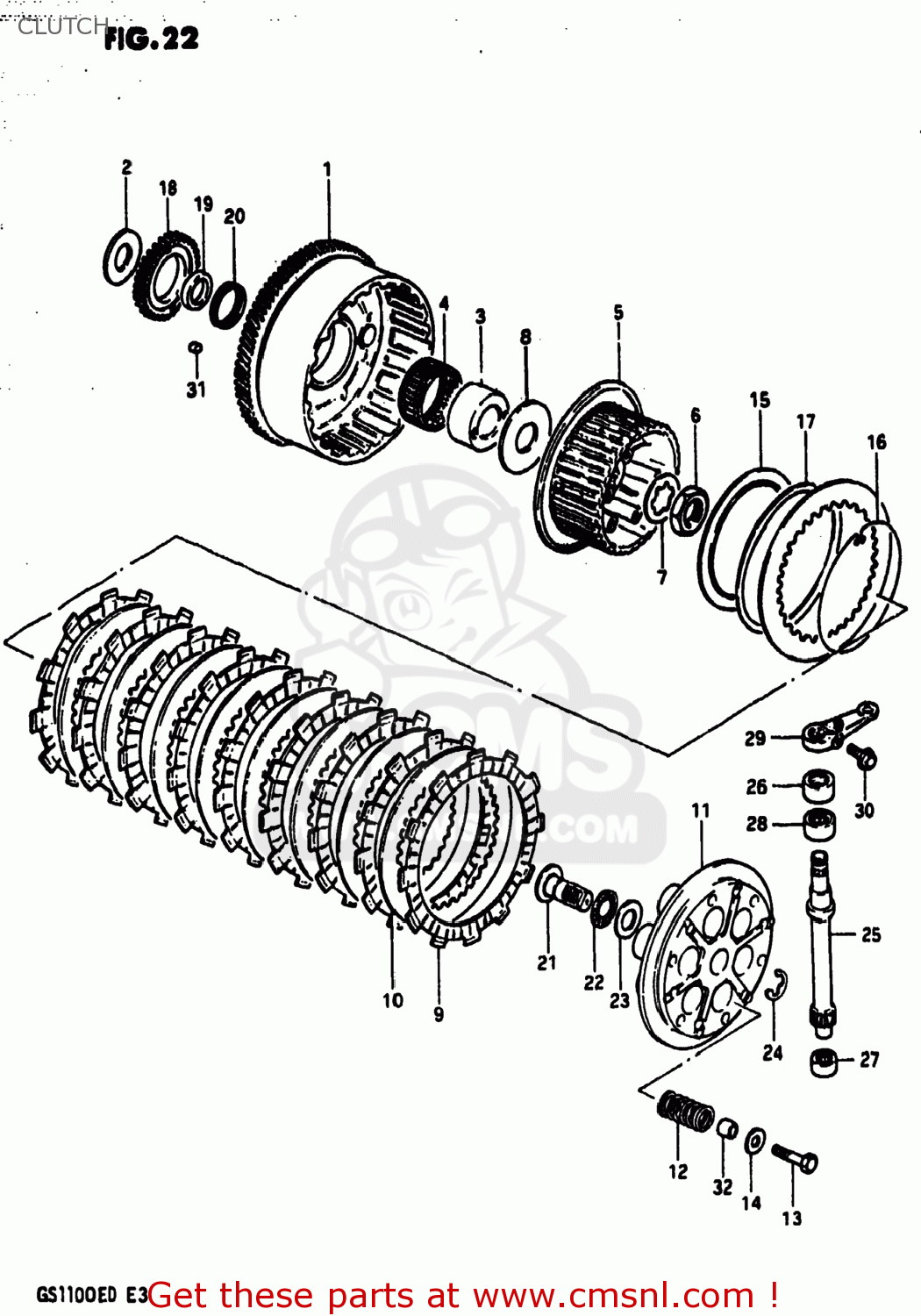

Clutch diagram GS1100ES 1982 (Z) USA (E03)
CLUTCH GS1100ES 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120049203
ref: 1-1
21200-49214
GEAR ASSEMBLY,PRIMARY DRIVE
€ 381.50
1-2
2120049204
ref: 1-2
21200-49214
GEAR ASSEMBLY,PRIMARY DRIVE
€ 381.50
2
0916025023
ref: 2
09160-25055
WASHER
€ 9.50
3
2125149200
ref: 3
SPACER
€ 65.50
4
0926351001
ref: 4
09263-51002
BEARING
€ 37.00
5
2141149203
ref: 5
21410-00A00
HUB,CLUTCH SLEEVE
€ 151.50
6
0914024004
ref: 6
09140-24007
NUT
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
€ 7.50
8
0916025022
ref: 8
WASHER(25X66X3.5)
€ 13.50
9-1
2144149200
ref: 9-1
21441-31D00
PLATE,CLUTCH DRIVE (MCA)
€ 16.00
9-2
2144149210
ref: 9-2
PLATE,CLUTCH DRIVE (NAS)
€ 25.50
10-1
2145149200
ref: 10-1
PLATE,CLUTCH DRIVEN (NAS)
€ 6.00
10-2
2145149200
ref: 10-2
PLATE,CLUTCH DRIVEN (NAS)
€ 6.00
11
2146249201
ref: 11
DISC,CLUTCH PRESSURE
€ 100.00
12-1
0944019007
ref: 12-1
SPRING
€ 3.00
12-2
0944019014
ref: 12-2
SPRING
€ 4.50
13
0110706308
ref: 13
01500-06307
BOLT
€ 2.50
14
0916006020
ref: 14
09160-06066
WASHER
€ 2.00
15
2147149100
ref: 15
SEAT,WAVE WASHER
€ 8.00
16
2148145100
ref: 16
RING,STOPPER
€ 5.00
17
0916400003
ref: 17
WASHER
€ 9.00
18
1632149000
ref: 18
GEAR,ENG OIL PUMP DRIVE(NT:34)
€ 78.50
19
1632545001
ref: 19
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
20
0926336002
ref: 20
BEARING(36X40X10)
€ 24.50
21
2316549200
ref: 21
23165-49201
RACK,CLUTCH RELEASE
€ 21.00
22
0926315003
ref: 22
BEARING(15X28X2)
€ 7.00
23
0916015015
ref: 23
09160-15045
WASHER
€ 4.00
24
0833211128
ref: 24
08332-1112A
E RING 12MM
€ 2.00
25
2326145400
ref: 25
PINION,CLUTCH RELEASE
€ 475.50
26
0928512002
ref: 26
09285-12006
OIL SEAL
€ 7.00
27
0926312014
ref: 27
BEARING(12X19X12)
€ 11.00
28
0926315012
ref: 28
BEARING(15X22X12)
€ 11.50
29-1
2327149001
ref: 29-1
23271-45400
ARM,CLUTCH RELEASE
€ 31.50
29-2
2327145400
ref: 29-2
ARM,CLUTCH RELEASE
€ 31.50
30
0154706208
ref: 30
01547-06207
BOLT (6X20)
€ 2.50
31
2121549000
ref: 31
CUSHION,PRIMARY DRIVEN GEAR
€ 3.00
32
0918006088
ref: 32
09180-06174
SPACER
€ 5.50
