GENERATOR (GS1100EZ/ED)
GS1100ES 1982 (Z) USA (E03)

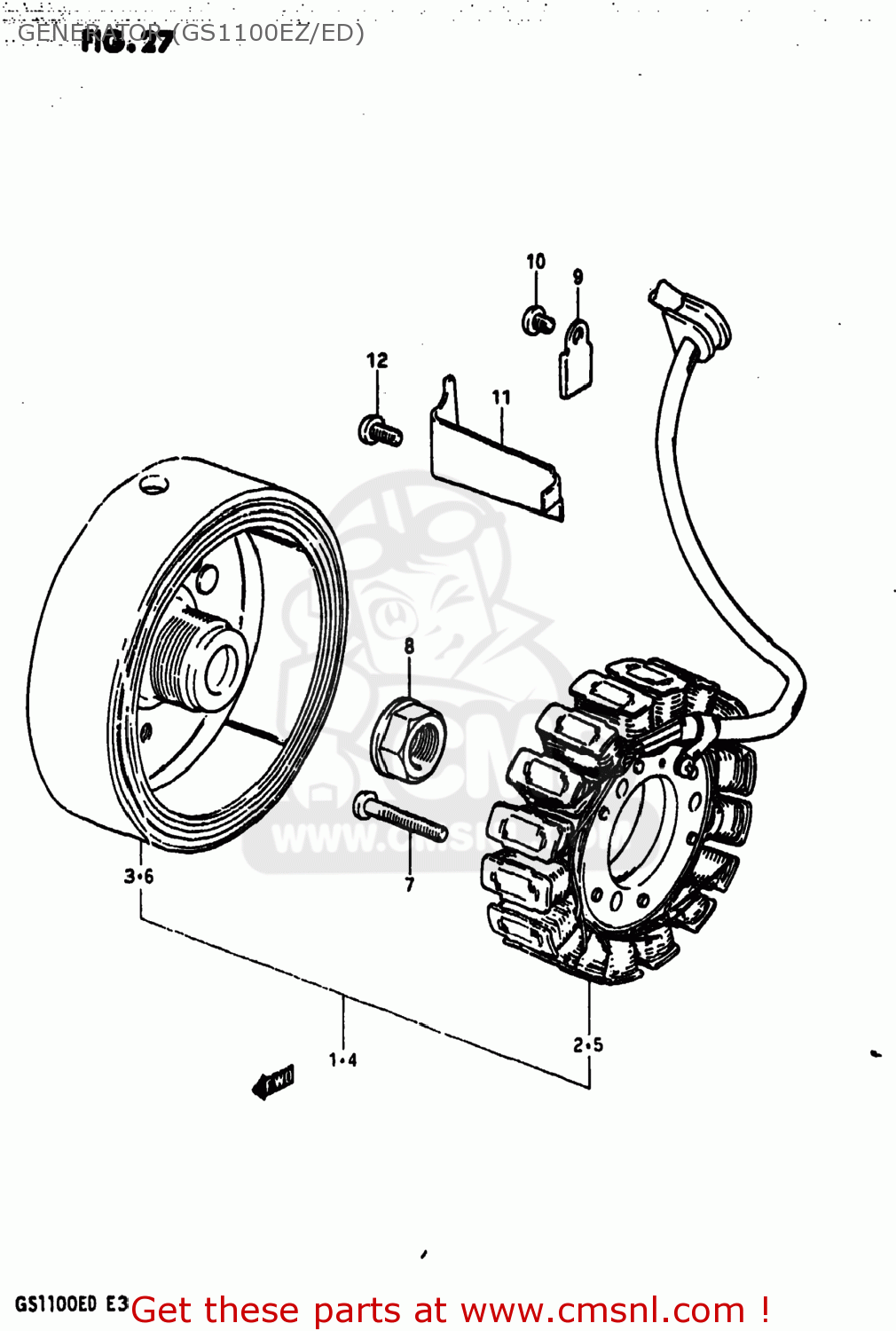

Generator (gs1100ez/ed) diagram GS1100ES 1982 (Z) USA (E03)
GENERATOR (GS1100EZ/ED) GS1100ES 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3140049310
ref: 1
31401-49310
GENERATOR ASSEMBLY
€ 481.50
2
3140149310
ref: 2
STATOR ASSEMBLY
€ 481.50
3
3140249310
ref: 3
ROTOR ASSY
€ 415.00
4
3140049320
ref: 4
31401-09300
GENERATOR ASSEMBLY
€ 405.50
5
3140149411
ref: 5
31401-09300
STATOR ASSEMBLY
€ 405.50
6
3140209300
ref: 6
31402-49330
ROTOR ASSEMBLY
€ 403.50
7
0211206308
ref: 7
02112-06307
SCREW 6X30
€ 2.50
8
3179249200
ref: 8
NUT,GENERATOR ROTOR
€ 10.00
9
3149745000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 1.50
10-1
0211205068
ref: 10-1
09125-05122
SCREW
€ 4.00
10-2
0211205088
ref: 10-2
02112-05087
SCREW
€ 2.00
11
3149845000
ref: 11
CLAMP,GENERATOR LEAD WIRE
€ 2.00
12
0211206108
ref: 12
02112-06107
SCREW
€ 1.50
