FUEL COCK
GS1100ES 1982 (Z) USA (E03)

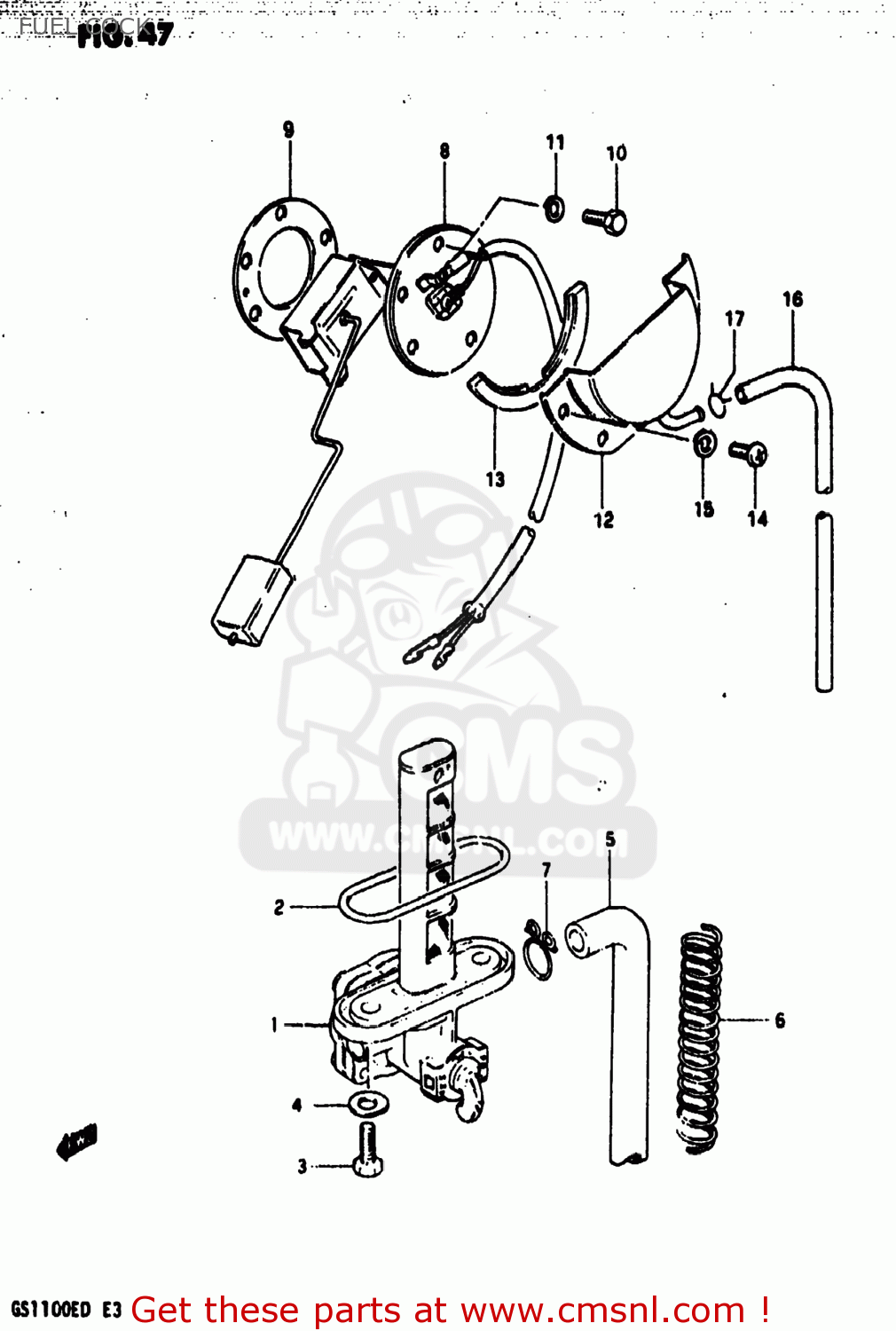

Fuel cock diagram GS1100ES 1982 (Z) USA (E03)
FUEL COCK GS1100ES 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4430049570
ref: 1
44300-49572
COCK ASSEMBLY,FUEL
€ 101.50
2
4434849170
ref: 2
O RING
€ 3.50
3
0912806006
ref: 3
09128-06057
BOLT(6X20)
€ 2.00
4
0916806010
ref: 4
09168-06023
GASKET
€ 2.00
5
0934307073
ref: 5
09352-70103-00B
HOSE
€ 17.50
6
0944013017
ref: 6
09440-13043
SPRING
€ 14.50
7
0940110403
ref: 7
CLIP
€ 7.00
8
3481049500
ref: 8
34810-49502
GAUGE ASSEMBLY,FUEL LEVEL
€ 107.50
9
3482549001
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
€ 22.50
10
0110405108
ref: 10
01500-0510B
BOLT
€ 1.50
11
0832121058
ref: 11
08321-0105A
LOCK WASHER
€ 2.00
12
3488534500
ref: 12
PLATE,FUEL DRAIN
€ 20.50
13
3488834500
ref: 13
GASKET (NAS)
€ 8.50
14
0211203088
ref: 14
02112-03087
SCREW
€ 1.50
15
0832121058
ref: 15
08321-0105A
LOCK WASHER
€ 2.00
16
0934305165
ref: 16
09352-50823-00B
HOSE,FUEL
€ 13.00
17
0940108402
ref: 17
CLIP
€ 1.50
