REAR COMBINATION LAMP
GS1100ES 1982 (Z) USA (E03)

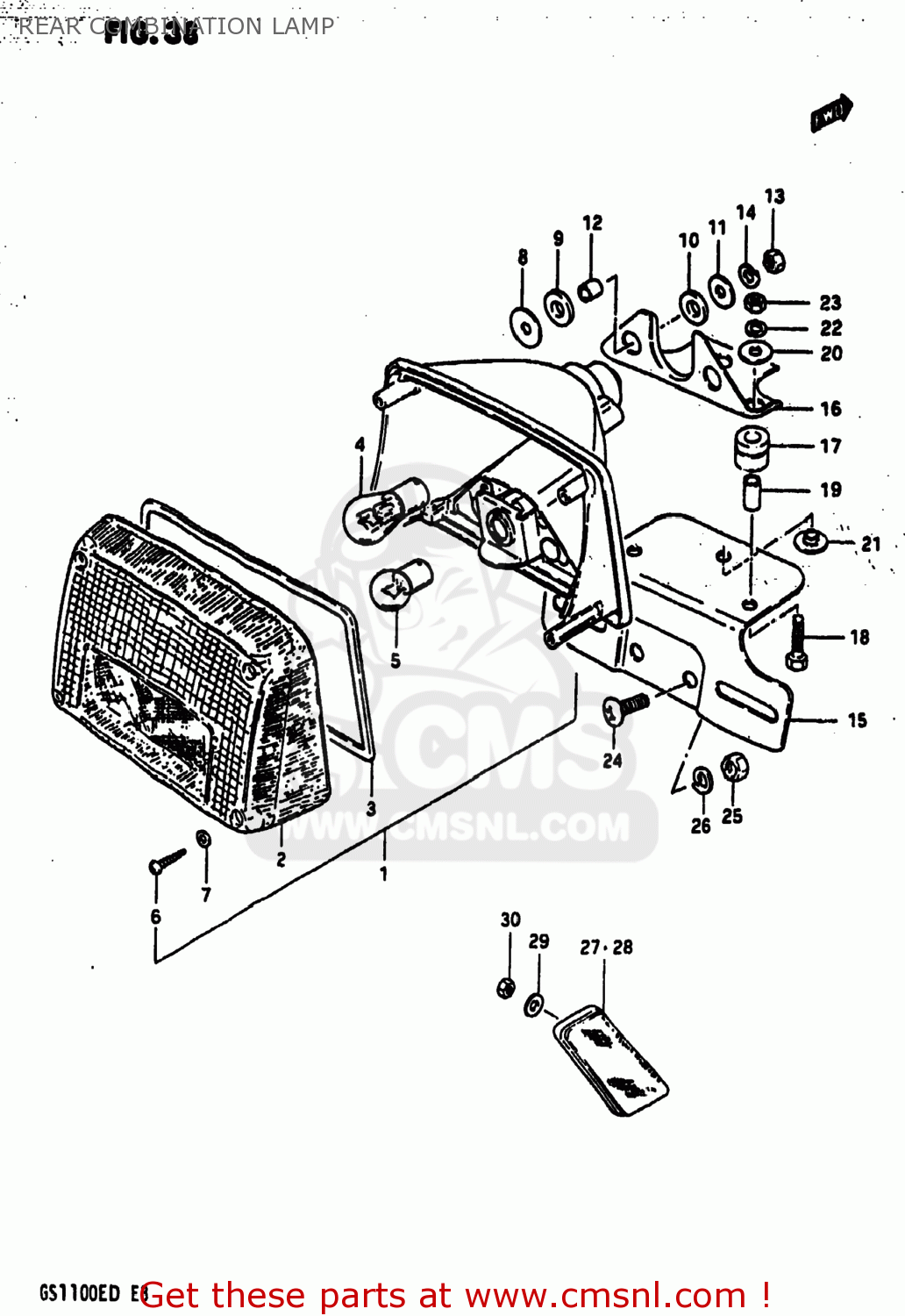

Rear combination lamp diagram GS1100ES 1982 (Z) USA (E03)
REAR COMBINATION LAMP GS1100ES 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571049030
ref: 1
35710-34310
LAMP ASSEMBLY,REAR COMBINATION
€ 245.00
2
3571249031
ref: 2
LENS
€ 43.50
3
3571349030
ref: 3
GASKET (NAS)
€ 12.50
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
0947112037
ref: 5
09471-12141
BULB
€ 7.00
6
3562749030
ref: 6
03511-0416A
SCREW,REAR COMBINATION LAMP
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
0916006007
ref: 8
09160-06084
WASHER
€ 2.00
9
0932009004
ref: 9
CUSHION
€ 2.50
10
0932009003
ref: 10
CUSHION
€ 2.00
11
0916006012
ref: 11
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
12
0918006038
ref: 12
SPACER(6.1X9X7.5)
€ 2.00
13
0831011068
ref: 13
08310-00067
NUT
€ 2.50
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
15
3592749031
ref: 15
PLATE,REAR LICENSE
€ 17.00
16
3592849031
ref: 16
BRACKET,LICENSE PLATE
€ 6.50
17
3579449000
ref: 17
35765-30950
CUSHION, BRACKET
€ 18.00
18
0110706258
ref: 18
01500-06257
BOLT
€ 2.00
19
0918006087
ref: 19
09180-06269
SPACER (6.4X9X15.5)
€ 4.00
20
0916006007
ref: 20
09160-06084
WASHER
€ 2.00
21
0916906016
ref: 21
WASHER
€ 1.50
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
23
0831011068
ref: 23
08310-00067
NUT
€ 2.50
24
0214206207
ref: 24
SCREW
€ 2.00
25
0831011068
ref: 25
08310-00067
NUT
€ 2.50
26
0832121068
ref: 26
08321-01067
LOCK WASHER
€ 2.50
27
3597049530
ref: 27
REFLECTOR,REFLEX,RIGHT
€ 10.50
28
3598049530
ref: 28
REFLECTOR,REFLEX,LEFT
€ 10.50
29
0916005013
ref: 29
WASHER(5.2X16X1)
€ 1.50
30
0831011058
ref: 30
08310-00057
NUT
€ 2.50
