FRONT DAMPER (GS1100ESD)
GS1100ES 1982 (Z) USA (E03)

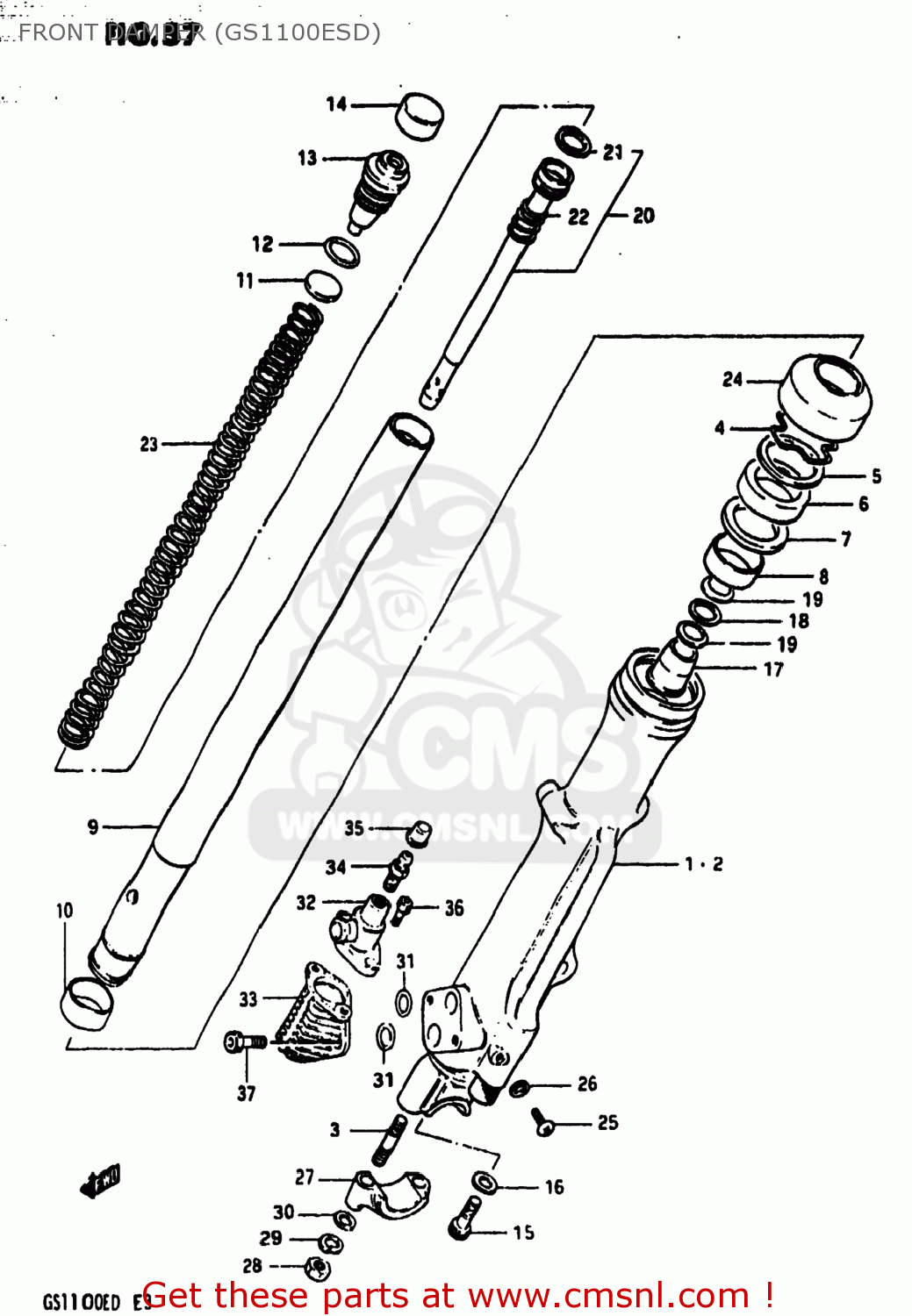

Front damper (gs1100esd) diagram GS1100ES 1982 (Z) USA (E03)
FRONT DAMPER (GS1100ESD) GS1100ES 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110349540
ref: 0-1
DAMPER ASSEMBLY,RIGHT
€ 299.00
0-2
5110449540
ref: 0-2
DAMPER ASSEMBLY,LEFT
€ 299.00
1
511304954015T
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 128.50
2
511404954015T
ref: 2
TUBE,OUTER,LEFT
€ 165.00
3
0141108308
ref: 3
01411-0830A
STUD 8X30
€ 2.00
4
5115640301
ref: 4
RING,STOPPER
€ 4.50
5
5115849000
ref: 5
WASHER. FRONT FORK
€ 7.00
6
5115349001
ref: 6
51153-08C20
OIL SEAL,FRONT FORK
€ 16.50
7
5115849500
ref: 7
WASHER
€ 4.00
8
5116749500
ref: 8
51167-01D00
METAL,SLIDE
€ 10.50
9
5111049540
ref: 9
TUBE,FORK,INNER
€ 131.50
10
5112149500
ref: 10
51121-49510
METAL,FRONT FORK PISTON
€ 17.50
11
5117249540
ref: 11
WASHER
€ 3.50
12
5111738260
ref: 12
O RING
€ 2.50
13
5135149540
ref: 13
CAP
€ 47.00
14
5118949300
ref: 14
CAP,RUBBER
€ 9.00
15
5114716510
ref: 15
BOLT,FORK CYLINDER(10X25)
€ 3.50
16
5114841310
ref: 16
GASKET (NAS)
€ 2.50
17
5119545420
ref: 17
PIECE,OIL LOCK
€ 15.50
18
5112345420
ref: 18
WASHER
€ 3.50
19
5112545420
ref: 19
SPRING,LEAF
€ 3.50
20
5114649500
ref: 20
CYLINDER,FRONT FORK
€ 48.00
21
5119649000
ref: 21
RING,PISTON
€ 9.00
22
5117749200
ref: 22
SPRING,FORK REBOUND
€ 7.00
23
5117149520
ref: 23
SPRING,FRONT FORK
€ 28.50
24
5117349002
ref: 24
SEAL,DUST
€ 13.00
25
0211204088
ref: 25
02112-04087
SCREW
€ 1.50
26
5118303010
ref: 26
GASKET,DRAIN,PLUG (NAS)
€ 3.00
27
5113249500291
ref: 27
51132-49500-15T
HOLDER,AXLE
€ 24.50
28
0831011085
ref: 28
08310-0008A
NUT
€ 1.50
29
0832121085
ref: 29
08321-0108A
LOCK WASHER
€ 2.50
30
0832221085
ref: 30
08322-0108A
WASHER
€ 1.50
31
5179944130
ref: 31
09280-12012
O RING
€ 5.00
32
5179011330
ref: 32
PLANGER SET,MODULATOR
€ 122.00
33
5177045920
ref: 33
VALVE SET,MODULATOR
€ 94.50
34
5177844130
ref: 34
BREATHER,AIR
€ 12.50
35
5177944130
ref: 35
55156-66310
CAP,BREADER
€ 6.00
36
5175311330
ref: 36
07130-05127
BOLT, MODULATOR (5X12)
€ 2.50
37
5179644130
ref: 37
07130-06167
BOLT,FRONT FORK
€ 3.00
