CRANKCASE
GS1100G 1986 (G) GENERAL EXPORT (E01)

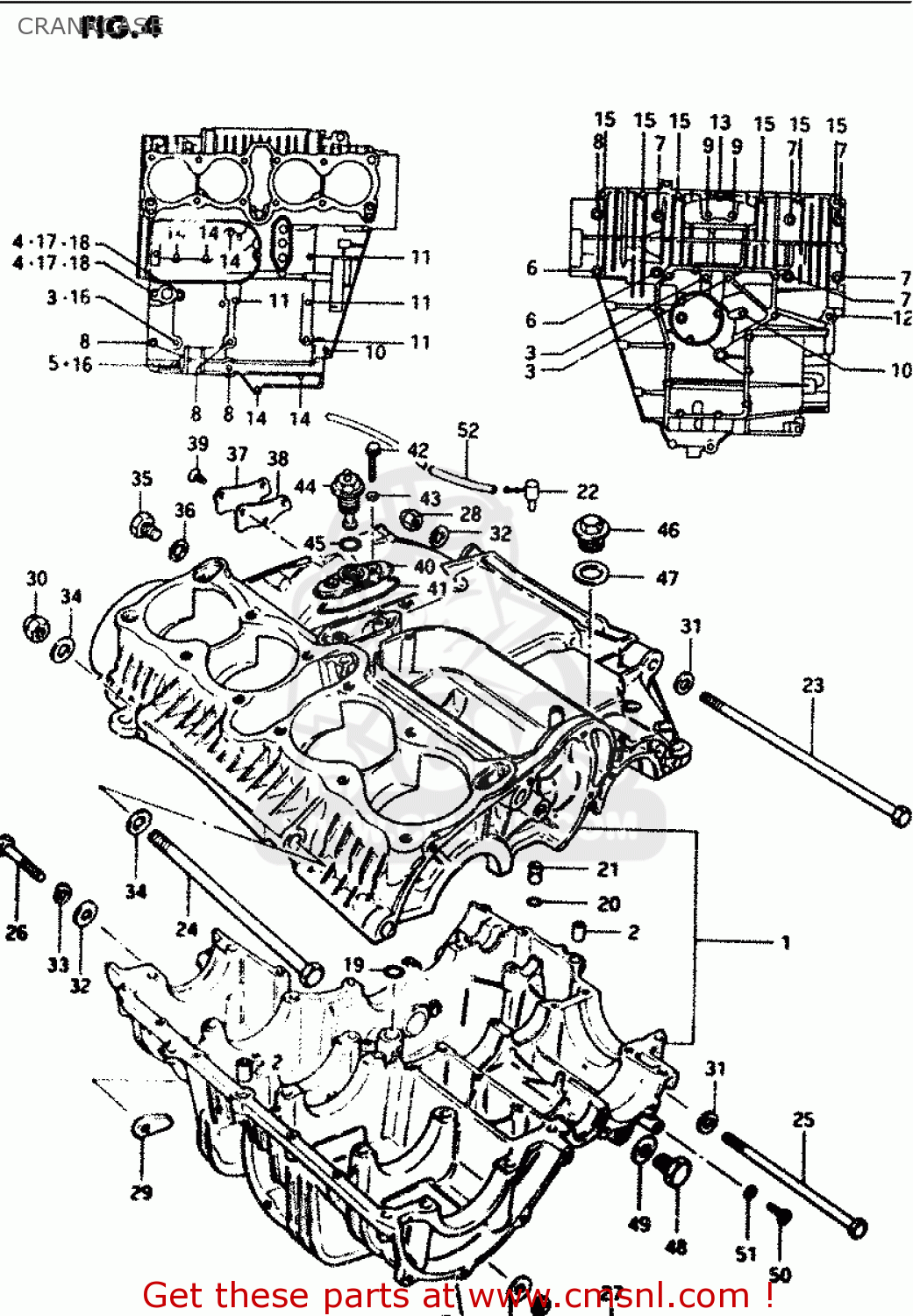

Crankcase diagram GS1100G 1986 (G) GENERAL EXPORT (E01)
CRANKCASE GS1100G 1986 (G) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1130049860
ref: 1
CRANKCASE SET
€ 1,730.00
2
0920613001
ref: 2
PIN
€ 2.50
3
0910308094
ref: 3
BOLT
€ 4.50
4
0910308092
ref: 4
BOLT 8X110
€ 0.00
5
0910308093
ref: 5
BOLT
€ 4.00
6
0910308061
ref: 6
BOLT
€ 3.50
7
0151708905
ref: 7
BOLT (8X90)
€ 3.50
8
0151708655
ref: 8
BOLT (8X65)
€ 3.00
9
0151708605
ref: 9
BOLT 8X60
€ 3.50
10
0151706905
ref: 10
BOLT (6X90)
€ 3.50
11
0151706755
ref: 11
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
BOLT 6X55
€ 2.00
13
0151706505
ref: 13
BOLT 6X50
€ 2.00
14
0151706455
ref: 14
BOLT (6X45)
€ 2.50
15
0151706354
ref: 15
BOLT 6X35
€ 2.50
16
0831616085
ref: 16
NUT 8MM
€ 3.00
17
0831311088
ref: 17
NUT
€ 2.50
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0928013001
ref: 19
O RING(D:3.2,ID:12.9)
€ 4.00
20
0928003003
ref: 20
O RING(D:1.05,ID:3.1)
€ 2.50
21
0936405005
ref: 21
UNION
€ 3.00
22
2482145100
ref: 22
BPLUG,BEVEL GEAR BREATHER
€ 7.00
23
0910010144
ref: 23
BOLT
€ 15.50
24
6121139001
ref: 24
SHAFT,REAR SWING ARM
€ 15.00
25
0910010137
ref: 25
BOLT
€ 10.50
26
0110710605
ref: 26
BOLT (10X60)
€ 3.50
27
0110710505
ref: 27
BOLT (10X50)
€ 7.00
28
0915910028
ref: 28
NUT (10MM)
€ 2.50
29
0915910020
ref: 29
NUT
€ 7.50
30
0831921125
ref: 30
NUT
€ 3.50
31
0916010054
ref: 31
WASHER (10.5X20X3.2)
€ 2.00
32
0832211105
ref: 32
WASHER
€ 2.50
33
0832121105
ref: 33
LOCK WASHER
€ 3.00
34
0832211125
ref: 34
WASHER
€ 2.00
35
0924714012
ref: 35
PLUG (14X12)
€ 3.50
36
0916814004
ref: 36
GASKET(14X19.2X2) (NAS)
€ 2.50
37
1139445000
ref: 37
CAP,OIL GALLERY
€ 6.50
38
1149745000
ref: 38
GASKET,OIL GALLERY (MCA)
€ 13.00
39
0212206168
ref: 39
SCREW
€ 2.00
40
1644545010
ref: 40
HOUSING,OIL PRESSURE SWITCH
€ 28.00
41
1644845000
ref: 41
O RING,PRESSURE SWITCH HOUSING
€ 10.50
42
0151706255
ref: 42
BOLT
€ 2.50
43
0916806015
ref: 43
WASHER
€ 2.00
44
3782045060
ref: 44
SWITCH ASSEMBLY
€ 30.00
45
0928019001
ref: 45
O RING(D:1.9,ID:18.8)
€ 1.50
46
0924720002
ref: 46
PLUG
€ 4.50
47
0916820004
ref: 47
GASKET
€ 1.50
48
0924714019
ref: 48
PLUG
€ 5.50
49
0916814004
ref: 49
GASKET(14X19.2X2) (NAS)
€ 2.50
50
0912806004
ref: 50
SCREW(6X10)
€ 1.50
51
0916806015
ref: 51
WASHER
€ 2.00
52
0934302009
ref: 52
HOSE
€ 12.00
