FRONT MASTER CYLINDER

GS1100G 1986 (G) GENERAL EXPORT (E01)

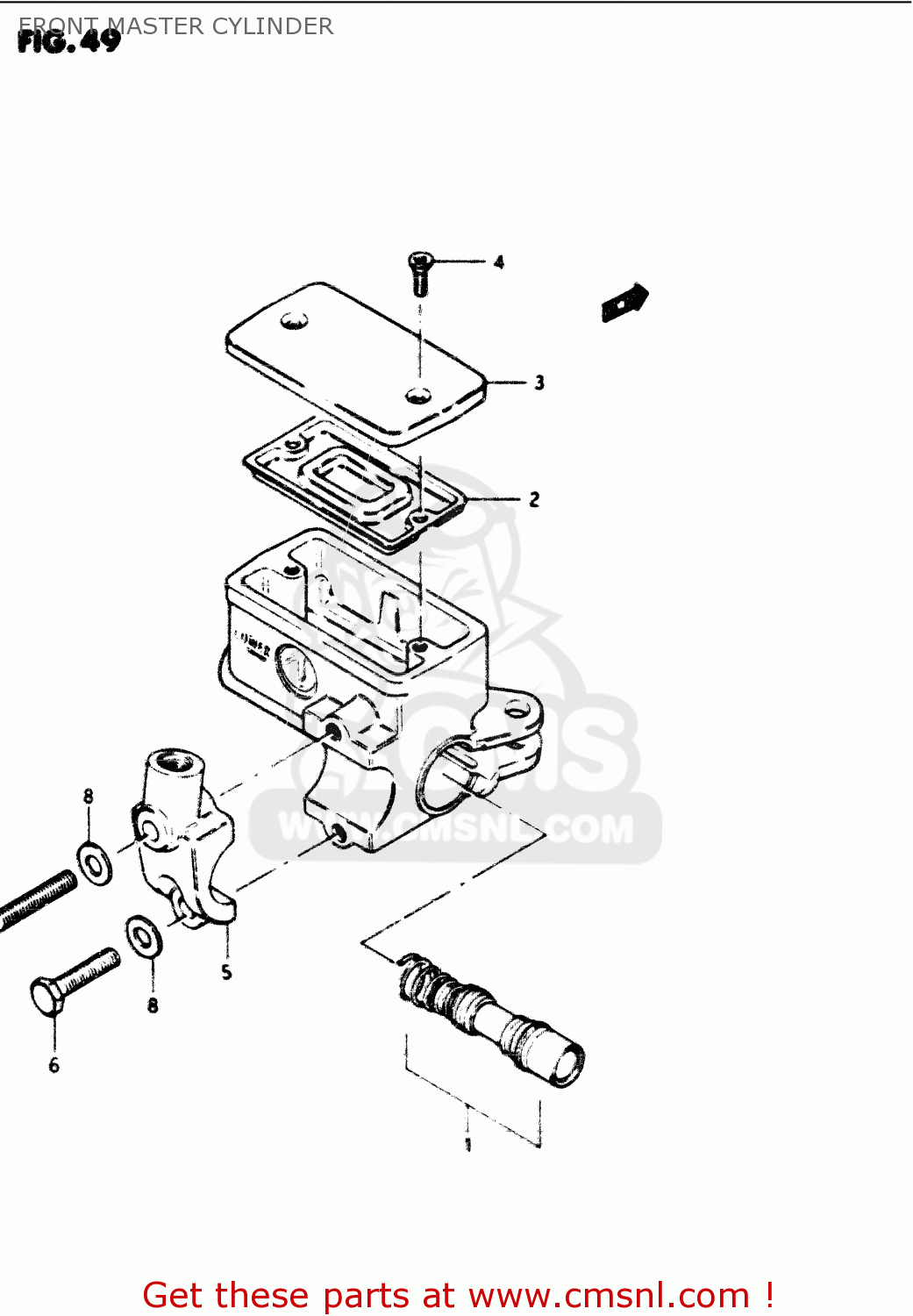

Front master cylinder diagram GS1100G 1986 (G) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS1100G 1986 (G) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS1100G 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960049401
ref: 0

CYLINDER,MASTE

€ 256.00

0

5960045400
ref: 0
E4

CYLINDER ASSY, MASTER

€ 256.00

1

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

2

6966749300
ref: 2

6966749300

3-1

6966949300
ref: 3-1

CAP

€ 30.00

3-2

6966949350
ref: 3-2
E4

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967144300
ref: 5

HOLDER

€ 14.50

6

0110706255
ref: 6

BOLT

€ 2.50

7

0110706405
ref: 7

BOLT

€ 2.00

8

0832221064
ref: 8

WASHER

€ 2.00
