SIGNAL GENERATOR

GS1100G 1986 (G) GENERAL EXPORT (E01)

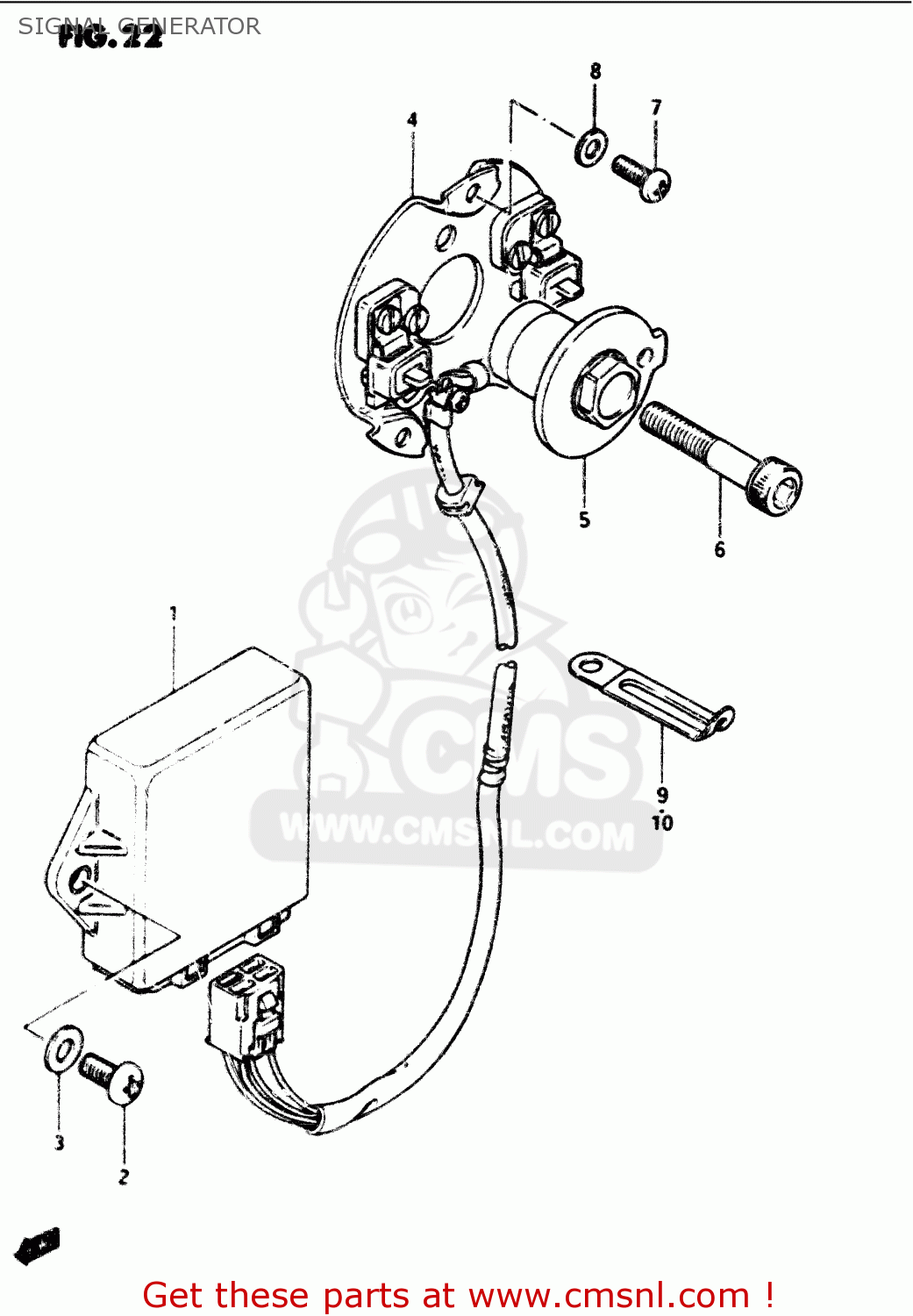

Signal generator diagram GS1100G 1986 (G) GENERAL EXPORT (E01)

SIGNAL GENERATOR GS1100G 1986 (G) GENERAL EXPORT (E01)

SIGNAL GENERATOR GS1100G 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3290049420
ref: 1

IGNITOR UNIT,ESA

€ 565.50

2

0211206128
ref: 2

SCREW 6X12

€ 2.00

3

0832221067
ref: 3

WASHER

€ 2.00

4

3311049421
ref: 4

STATOR,SIGNAL GENERATOR

€ 360.50

5

3312031310
ref: 5

ROTOR,SIGNAL

€ 155.50

6

0711008456
ref: 6

BOLT

€ 3.00

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

9

0940406401
ref: 9

CLAMP L:35

€ 2.50

10

0940408402
ref: 10

CLAMP

€ 3.50
