RIGHT HANDLE SWITCH

GS1100G 1986 (G) GENERAL EXPORT (E01)

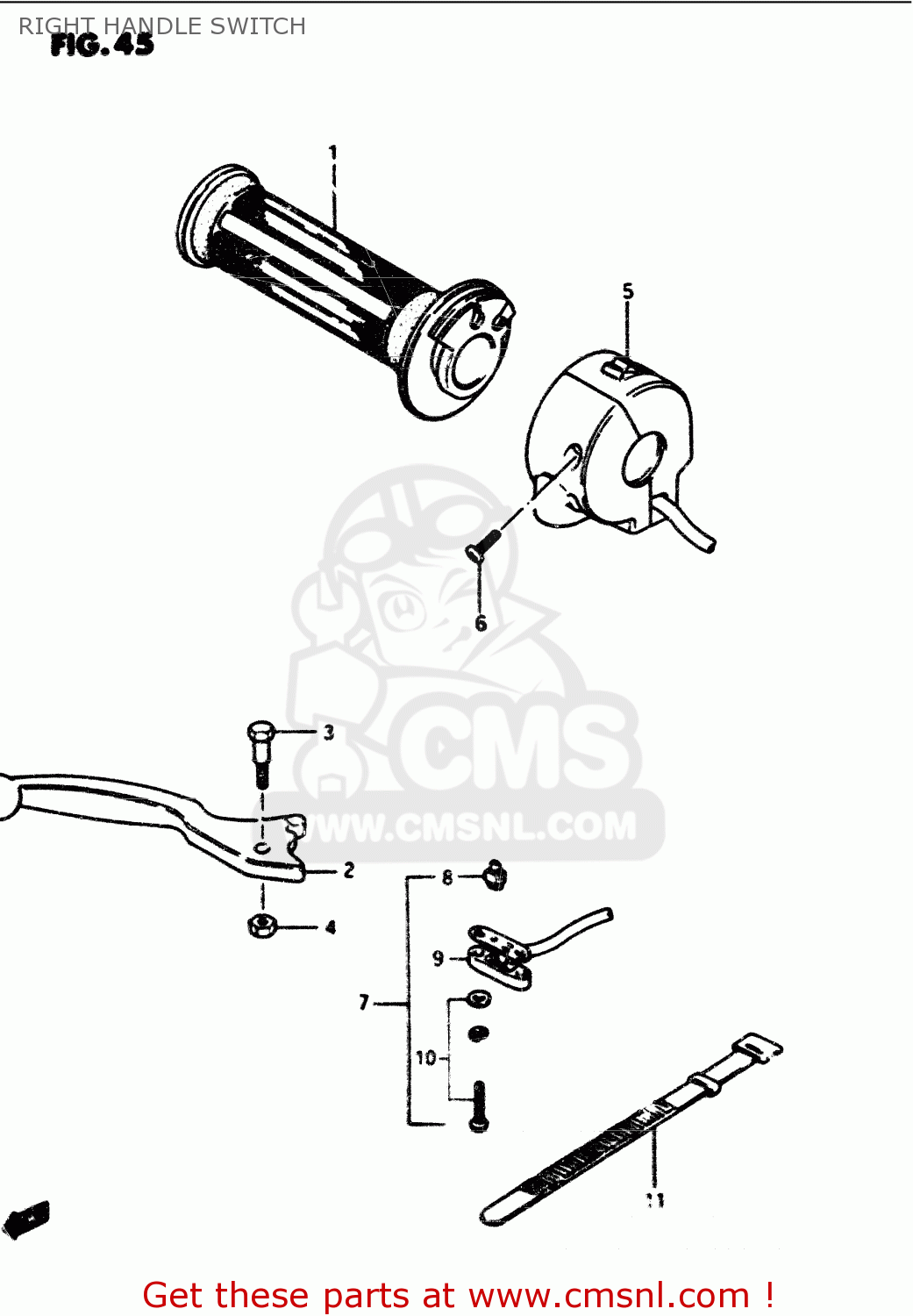

Right handle switch diagram GS1100G 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5711049500
ref: 1

GRIP,THROTTLE

€ 26.00

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

5743149100
ref: 3

BOLT,LEVER PIVOT

€ 6.00

0831921065
ref: 4

NUT

€ 2.50

5-1

3720049541
ref: 5-1

SWITCH ASSY,HANDLE,R

€ 130.00

5-2

3720049511
ref: 5-2

SWITCH ASSY, HANDLE RH (FLAT)

€ 130.00

5-3

3720049551
ref: 5-3
E4,E15,E16,E17,E18,E

SWITCH ASSY,HA

€ 167.00

5-4

3720049521
ref: 5-4
E4,E15,E16,E17,E18,E

SWITCH ASSY, HANDLE RH (FLAT)

€ 167.00

3759149210
ref: 6

SCREW

€ 2.50

5746033700
ref: 7

SWITCH ASSY,STOP

€ 38.50

5746518601
ref: 8

CONTACT,SWITCH

€ 4.50

5748133010
ref: 9

COVER,FR BK TERMINAL BASE

€ 19.50

0912503105
ref: 10

SCREW

€ 2.50

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
