Buy Suzuki GS Parts Online


CYLINDER HEAD COVER (GS1100GKZ/GK2)

GS1100GK 1983 (D) USA (E03)

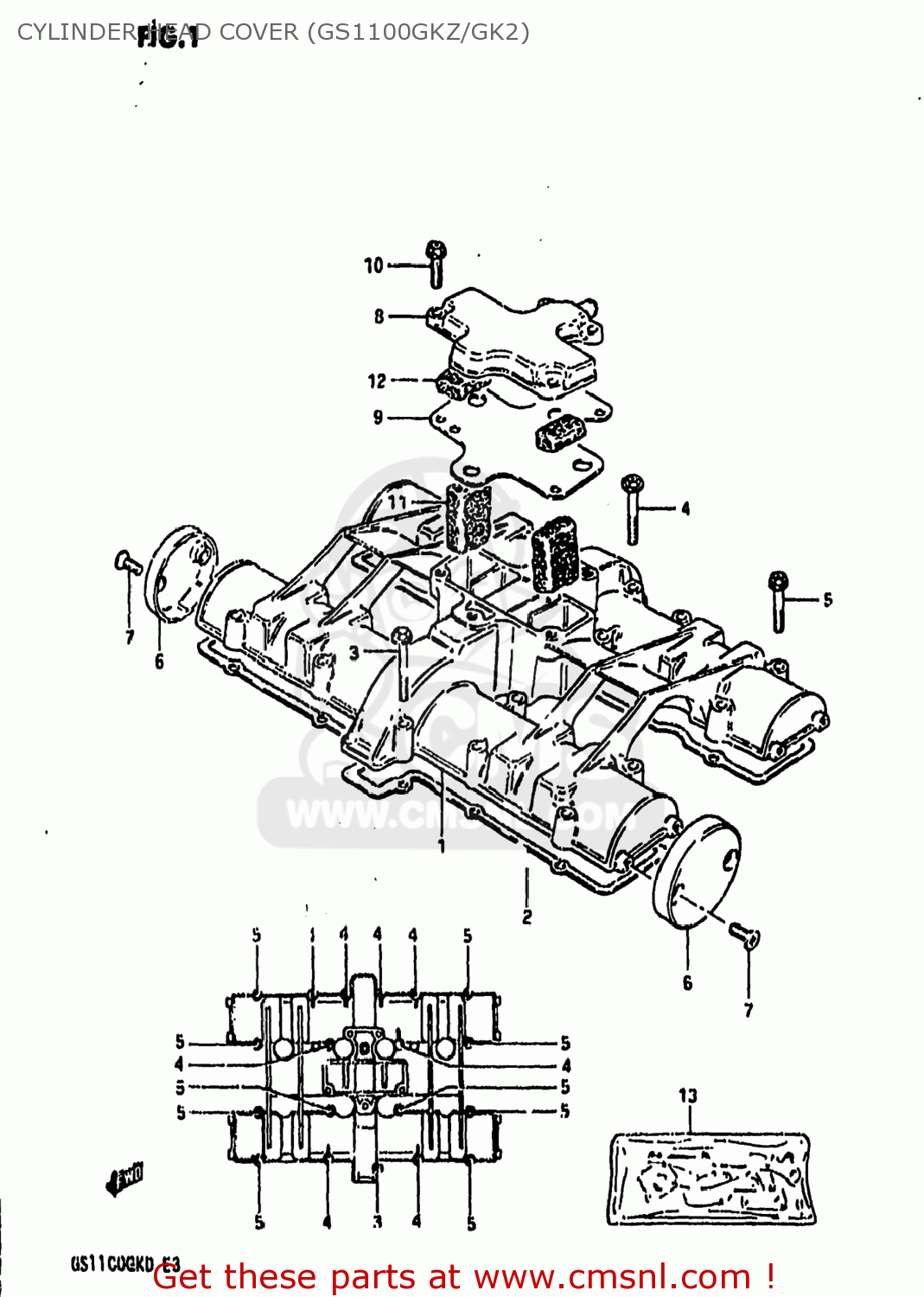

Cylinder head cover (gs1100gkz/gk2) diagram GS1100GK 1983 (D) USA (E03)

CYLINDER HEAD COVER (GS1100GKZ/GK2) GS1100GK 1983 (D) USA (E03)
CYLINDER HEAD COVER (GS1100GKZ/GK2) GS1100GK 1983 (D) USA (E03)
CYLINDER HEAD COVER (GS1100GKZ/GK2) GS1100GK 1983 (D) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1117149020
ref: 1
11171-49030
COVER,CYLINDER HEAD
€ 146.50
2
1117349020
ref: 2
11173-49022
GASKET,CYLINDER HEAD COVER (MCA)
1117349020
€ 49.00
3
0151706458
ref: 3
01550-06457
BOLT,UNDER
0151706458
€ 2.50
4
0151706408
ref: 4
01550-06407
BOLT
0151706408
€ 2.50
5
0151706358
ref: 5
01550-06357
BOLT 6X35
0151706358
€ 2.50
6
1117449000
ref: 6
CAP,CYLINDER HEAD COVER
1117449000
€ 38.00
7
0912705013
ref: 7
SCREW(5X12)
0912705013
€ 2.50
8
1117647012
ref: 8
11176-47042
COVER,BREATHER
1117647012
€ 32.50
9
1117747001
ref: 9
11177-47001-H17
GASKET (MCA)
1117747001
€ 19.50
10
0151706258
ref: 10
01550-06257
BOLT
0151706258
€ 2.50
11
1118645000
ref: 11
11186-45001
COVER,BREATHER
1118645000
€ 5.50
12
1118745000
ref: 12
11187-45001
SEPARATOR,OIL BREATHER
1118745000
€ 6.50
13
1140149870
ref: 13
11402-49870
GASKET SET
€ 248.50
