FRAME COVER (GS1100GKZ)

GS1100GK 1983 (D) USA (E03)

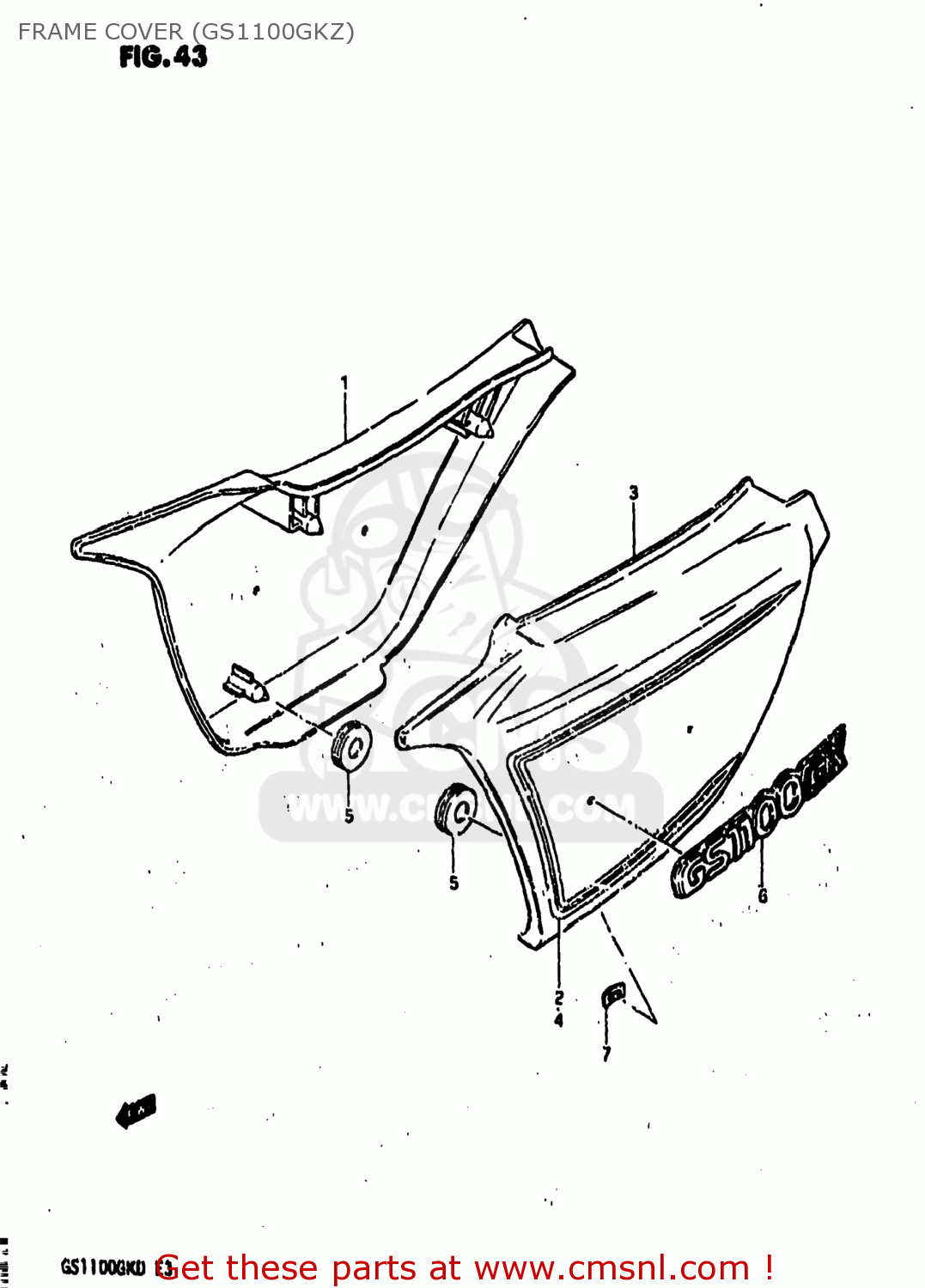

Frame cover (gs1100gkz) diagram GS1100GK 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711049420019
ref: 1-1
47110-45110

COVER,FRAME,RIGHT

€ 76.50

1-2

471104942014A
ref: 1-2
47110-45110

COVER,FRAME,RIGHT

€ 76.50

6813049420764
ref: 2

TAPE SET,FRAME COVER

€ 0.00

3-1

4721049420019
ref: 3-1
47211-45110-019

COVER,FRAME,LEFT

€ 94.00

3-2

472104942014A
ref: 3-2
47211-45110-019

COVER,FRAME,LEFT

€ 94.00

6814049420764
ref: 4

TAPE SET,FRAME COVER

€ 0.00

0932008018
ref: 5

CUSHION

€ 4.00

6813149420
ref: 6

EMBLEM,FRAME COVER

€ 18.50

0914803002
ref: 7

NUT

€ 3.00
