HEADLAMP HOUSING-FRONT FENDER

GS1100GK 1983 (D) USA (E03)

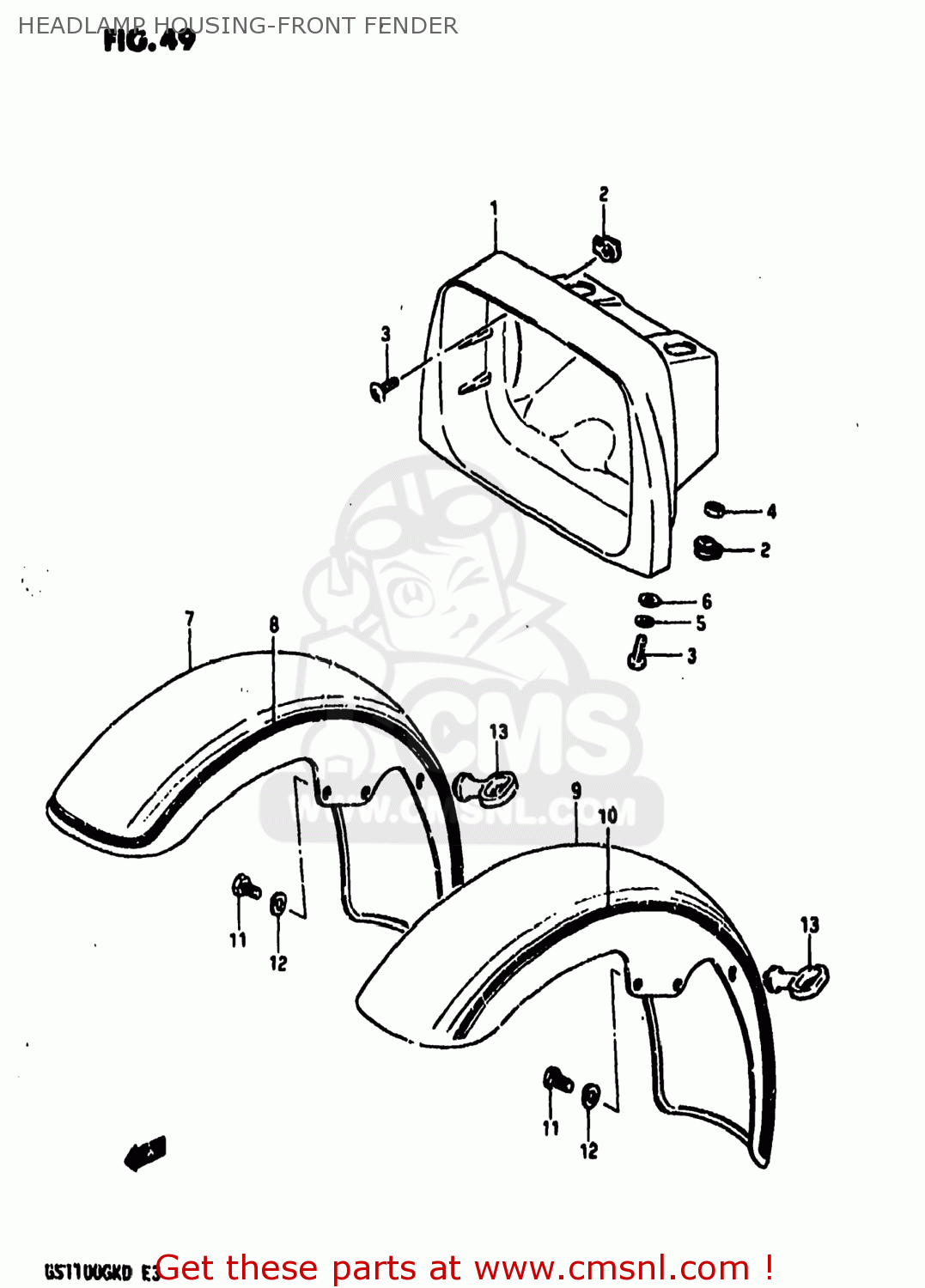

Headlamp housing-front fender diagram GS1100GK 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5181149410019
ref: 1-1

HOUSING,HEADLAMP

€ 0.00

1-2

518114941014A
ref: 1-2

HOUSING,HEADLAMP

€ 0.00

1-3

518114941018A
ref: 1-3

HOUSING,HEADLAMP

€ 0.00

9469149400
ref: 2

PLATE

€ 1.50

0214205208
ref: 3
02142-05207

(5X20) CROSS SCREW

€ 2.00

0831011058
ref: 4
08310-00057

NUT

€ 2.50

0832121058
ref: 5
08321-0105A

LOCK WASHER

€ 2.00

0832221058
ref: 6
08322-01057

WASHER

€ 2.50

7-1

5310049410019
ref: 7-1
53110-49400-13L

FENDER,FRONT

€ 180.50

7-2

531004941014A
ref: 7-2
53110-49400-13L

FENDER,FRONT

€ 180.50

6815049410764
ref: 8

TAPE,FRONT FENDER

€ 0.00

531004947090U
ref: 9
53110-49400-13L

FENDER,FRONT

€ 180.50

681504942093A
ref: 10

TAPE,FRONT FENDER

€ 0.00

0110708168
ref: 11
01500-0816B

BOLT

€ 2.00

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

5862121203
ref: 13
58621-21204

GUIDE,CABLE

€ 7.50
