SIGNAL GENERATOR
GS1100GK 1983 (D) USA (E03)

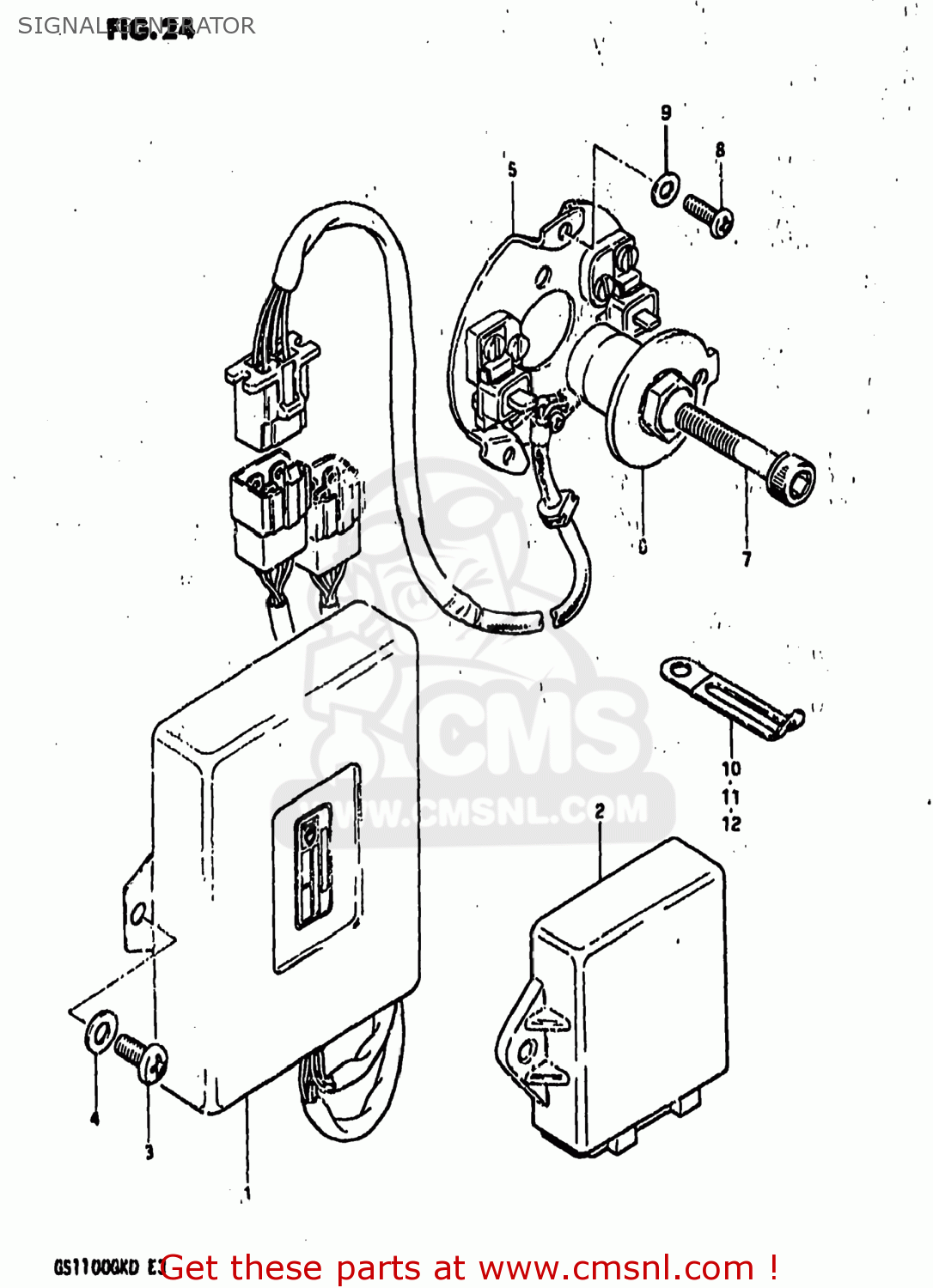

Signal generator diagram GS1100GK 1983 (D) USA (E03)
SIGNAL GENERATOR GS1100GK 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290049410
ref: 1
IGNITER UNIT ASSEMBLY
€ 335.50
2
3290049420
ref: 2
IGNITOR UNIT,ESA
€ 565.50
3
0211206128
ref: 3
02112-06127
SCREW 6X12
€ 2.00
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5-1
3311049410
ref: 5-1
33110-493A0
STATOR,SIGNAL GENERATOR
€ 360.50
5-2
3311049420
ref: 5-2
33110-493A0
STATOR,SIGNAL GENERATOR
€ 360.50
6-1
3312049410
ref: 6-1
GOVERNOR ASSEMBLY
€ 76.50
6-2
3312031310
ref: 6-2
ROTOR,SIGNAL
€ 155.50
7
0910608011
ref: 7
07130-0845B
BOLT
€ 3.00
8
0912505024
ref: 8
SCREW(5X12)
€ 2.00
9
0916005027
ref: 9
08322-01057
WASHER
€ 2.50
10
0940406401
ref: 10
09404-06432
CLAMP L:35
€ 2.50
11
0940408401
ref: 11
09404-08420
CLAMP
€ 3.50
12
0940408402
ref: 12
09404-08420
CLAMP
€ 3.50
