CANISTER (FOR MODEL F OF CALIFORNIA)
GS1150EF 1986 (G) USA (E03)

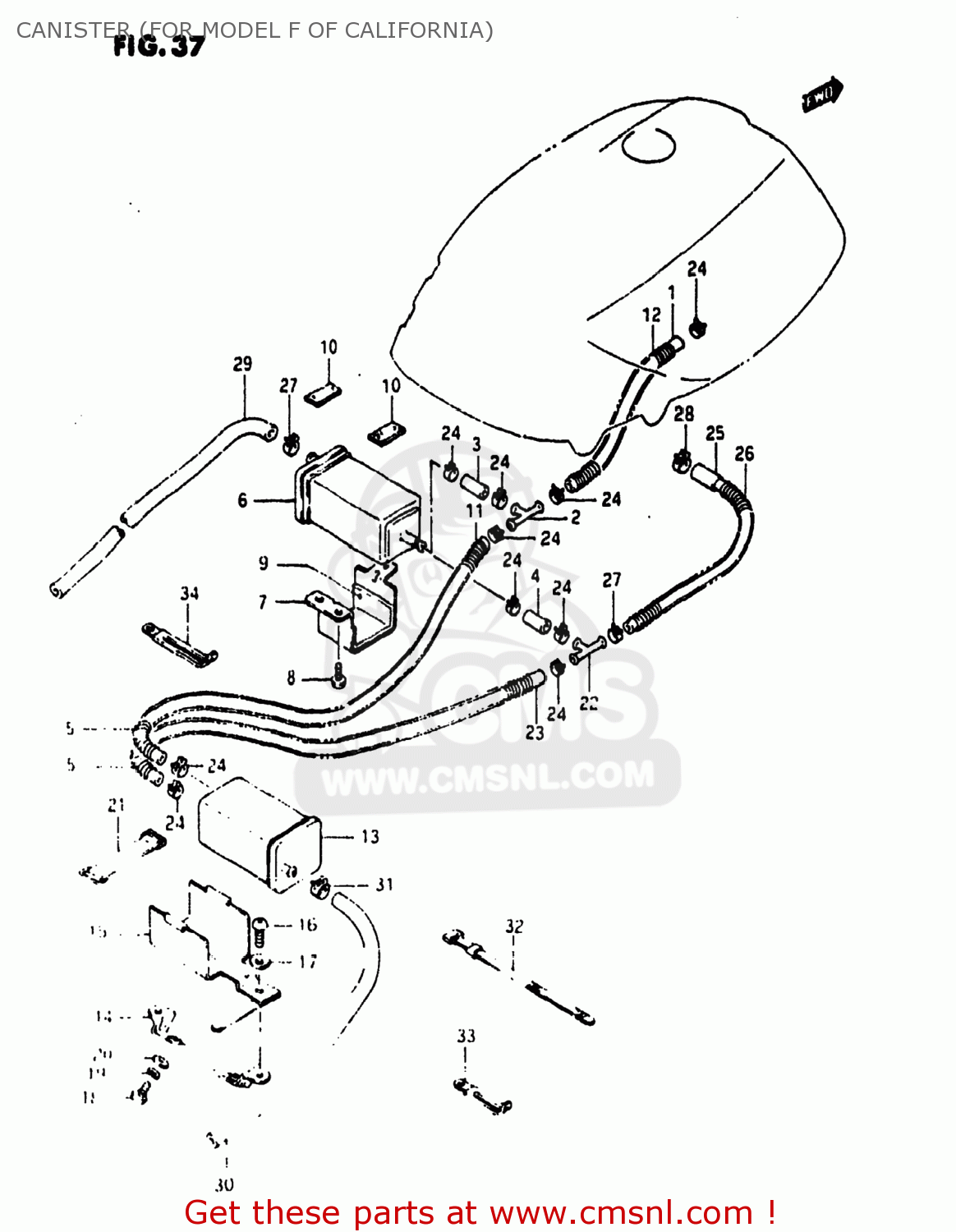

Canister (for model f of california) diagram GS1150EF 1986 (G) USA (E03)
CANISTER (FOR MODEL F OF CALIFORNIA) GS1150EF 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0934305334
ref: 1
HOSE
€ 48.50
2
4495014A00
ref: 2
PIPE
€ 16.00
3
0934305304
ref: 3
09355-54115-600
HOSE
€ 20.00
4
0934305335
ref: 4
09355-54115-600
HOSE
€ 20.00
5
0944013040
ref: 5
09440-13040-XC0
(CA) SPRING
€ 4.50
6
1721005222
ref: 6
17210-14A00
(CA) CANISTER ASSEMBLY
€ 53.50
7
4488000A00
ref: 7
BRACKET,CANISTER
€ 11.50
8
0211206106
ref: 8
02112-0610B
SCREW
€ 1.50
9
4488200A00
ref: 9
CUSHION, CANISTER NO. 1
€ 0.00
10
4488300A00
ref: 10
CUSHION,CANISTER
€ 1.50
11
0934305331
ref: 11
09343-05332
HOSE
€ 3.50
12
0944013018
ref: 12
09440-13043
SPRING
€ 14.50
13
1721005222
ref: 13
17210-14A00
(CA) CANISTER ASSEMBLY
€ 53.50
14
4488500A00
ref: 14
BRACKET,CANISTER PURGE
€ 8.00
15
4487000A00
ref: 15
PLATE,CANISTER
€ 16.00
16
0211206106
ref: 16
02112-0610B
SCREW
€ 1.50
17
0832221066
ref: 17
08322-0106B
WASHER, LOWER
€ 2.00
18
0214206128
ref: 18
02142-06127
SCREW
€ 1.50
19
0832121067
ref: 19
08321-01067
WASHER,LOCK
€ 2.50
20
0916006006
ref: 20
09160-06084
WASHER
€ 2.00
21
0946200033
ref: 21
BAND
€ 6.50
22
4494014A00
ref: 22
PIPE CANISTER
€ 16.00
23
0934305332
ref: 23
HOSE
€ 3.50
24
0940110409
ref: 24
CLIP
€ 2.50
25
0934305330
ref: 25
09359-54111-00A
HOSE
€ 13.50
26
0944013042
ref: 26
SPRING
€ 4.50
27
0940110409
ref: 27
CLIP
€ 2.50
28
0940112404
ref: 28
CLIP
€ 2.50
29
0934307165
ref: 29
09343-07186
HOSE
€ 19.50
30
0934307166
ref: 30
09343-07186
HOSE
€ 19.50
31
0940112404
ref: 31
CLIP
€ 2.50
32
0940718401
ref: 32
CLAMP(L:187)
€ 2.00
33
0940406402
ref: 33
09404-06432
CLAMP
€ 2.50
34
0940406404
ref: 34
09404-06433
CLAMP
€ 3.00
