CRANKCASE (GS1150ES3/ESE E.NO.102248~/MODEL F/F2/G)

GS1150EF 1986 (G) USA (E03)

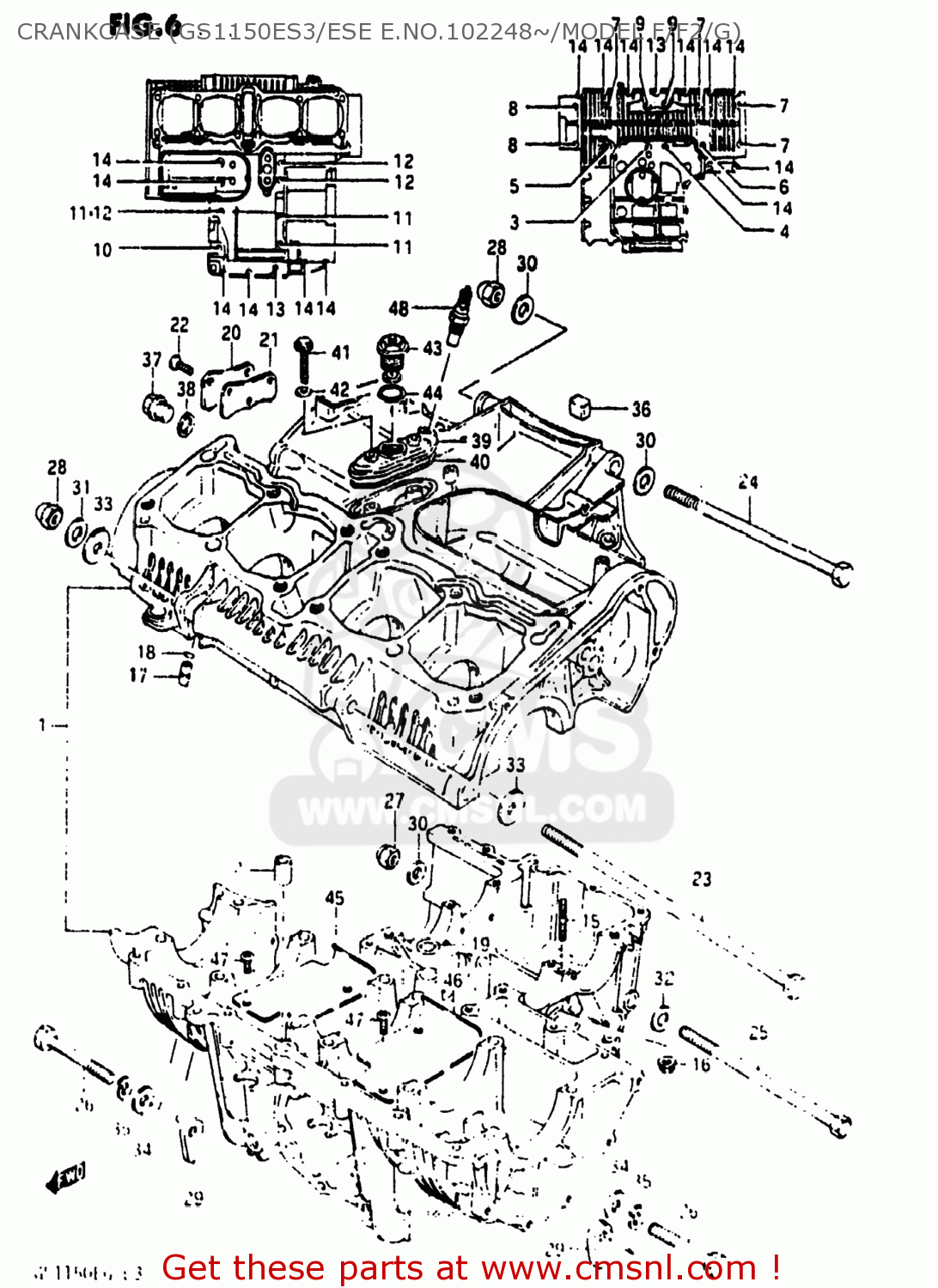

Crankcase (gs1150es3/ese e.no.102248~/model f/f2/g) diagram GS1150EF 1986 (G) USA (E03)

CRANKCASE (GS1150ES3/ESE E.NO.102248~/MODEL F/F2/G) GS1150EF 1986 (G) USA (E03)
CRANKCASE (GS1150ES3/ESE E.NO.102248~/MODEL F/F2/G) GS1150EF 1986 (G) USA (E03)
CRANKCASE (GS1150ES3/ESE E.NO.102248~/MODEL F/F2/G) GS1150EF 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1130000814
ref: 1-1
11300-00817
CRANKCASE SET
€ 2,259.50
1-2
1130000815
ref: 1-2
11300-00817
CRANKCASE SET
€ 2,259.50
2
0920613001
ref: 2
04211-13189
PIN
0920613001
€ 2.50
3
0910309004
ref: 3
BOLT(9X180)
0910309004
€ 5.50
4
0910309005
ref: 4
BOLT(9X135)
0910309005
€ 5.50
5
0910308138
ref: 5
BOLT(8X115)
0910308138
€ 5.00
6
0910308139
ref: 6
BOLT(8X100)
0910308139
€ 5.50
7
0910308140
ref: 7
09103-08112
BOLT 8X90
€ 6.50
8
0910308141
ref: 8
BOLT(8X65)
€ 0.00
9
0910309006
ref: 9
BOLT(9X60)
0910309006
€ 5.50
10-1
0151708504
ref: 10-1
01550-0850B
BOLT, UPPER
€ 2.50
10-2
0151708605
ref: 10-2
01550-0860A
BOLT 8X60
€ 3.50
11-1
0151706855
ref: 11-1
01550-0685B
BOLT
€ 2.50
11-2
0151706855
ref: 11-2
01550-0685B
BOLT
€ 2.50
12-1
0151706755
ref: 12-1
01550-0675A
BOLT (6X75)
€ 2.50
12-2
0151706755
ref: 12-2
01550-0675A
BOLT (6X75)
€ 2.50
13
0151706555
ref: 13
01550-0655B
BOLT 6X55
€ 2.00
14
0151706404
ref: 14
01550-0640A
BOLT
0151706404
€ 2.00
15
0142106508
ref: 15
STUD 6X50
€ 2.00
16
0915906017
ref: 16
08319-31067
NUT
0915906017
€ 2.50
17
0936405005
ref: 17
UNION
0936405005
€ 3.00
18
0928003003
ref: 18
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
19
0928013001
ref: 19
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
20
1139445000
ref: 20
CAP,OIL GALLERY
1139445000
€ 6.50
21
1149745000
ref: 21
11497-45000-H17
GASKET,OIL GALLERY (MCA)
1149745000
€ 13.00
22
0212206168
ref: 22
02122-06167
SCREW
0212206168
€ 2.00
23-1
0910410028
ref: 23-1
BOLT
€ 0.00
23-2
0910410031
ref: 23-2
BOLT 10X285
€ 0.00
24
0910410025
ref: 24
BOLT 10X180
0910410025
€ 4.00
25
0910010078
ref: 25
BOLT(10X165)
0910010078
€ 10.50
26
0910410015
ref: 26
BOLT 10X60
€ 3.00
27
0915910028
ref: 27
NUT (10MM)
€ 2.50
28
0915910052
ref: 28
NUT
0915910052
€ 8.50
29
0915910020
ref: 29
NUT
0915910020
€ 7.50
30
0832211105
ref: 30
08322-0110A
WASHER
€ 2.50
30
0832211105
ref: 30
08322-0110A
WASHER
€ 2.50
31
0832211105
ref: 31
08322-0110A
WASHER
€ 2.50
31
0832211105
ref: 31
08322-0110A
WASHER
€ 2.50
32
0832211108
ref: 32
08322-01107
WASHER
€ 2.50
32
0832211108
ref: 32
08322-01107
WASHER
€ 2.50
33
0916010084
ref: 33
09160-10094
WASHER
€ 3.50
33
0916010084
ref: 33
09160-10094
WASHER
€ 3.50
34
0916010063
ref: 34
09160-10005
WASHER (10.5X20X3.2)
€ 2.00
34
0916010063
ref: 34
09160-10005
WASHER (10.5X20X3.2)
€ 2.00
35
0832131108
ref: 35
08321-01107
LOCK WASHER
€ 2.00
35
0832131108
ref: 35
08321-01107
LOCK WASHER
€ 2.00
36
1125225000
ref: 36
PAD,CYLINDER
1125225000
€ 5.00
36
1125225000
ref: 36
PAD,CYLINDER
1125225000
€ 5.00
37
0924714012
ref: 37
09247-14026
PLUG (14X12)
0924714012
€ 3.50
37
0924714012
ref: 37
09247-14026
PLUG (14X12)
0924714012
€ 3.50
38
0916814004
ref: 38
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
38
0916814004
ref: 38
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
39
1644549010
ref: 39
HOUSING,OIL PRESSURE SWITCH
€ 20.00
39
1644549010
ref: 39
HOUSING,OIL PRESSURE SWITCH
€ 20.00
40
1644845000
ref: 40
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
40
1644845000
ref: 40
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
41
0151706254
ref: 41
01550-0625A
BOLT
€ 2.50
41
0151706254
ref: 41
01550-0625A
BOLT
€ 2.50
42
0916806015
ref: 42
09168-06023
WASHER
0916806015
€ 2.00
42
0916806015
ref: 42
09168-06023
WASHER
0916806015
€ 2.00
43
3782045060
ref: 43
37820-45061
SWITCH ASSEMBLY
3782045060
€ 30.00
43
3782045060
ref: 43
37820-45061
SWITCH ASSEMBLY
3782045060
€ 30.00
44
0928019001
ref: 44
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
44
0928019001
ref: 44
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
45
1152149201
ref: 45
PLATE,OIL SEPARATOR
€ 5.50
45
1152149201
ref: 45
PLATE,OIL SEPARATOR
€ 5.50
46
1152249201
ref: 46
PLATE,OIL SEPARATOR
€ 4.50
46
1152249201
ref: 46
PLATE,OIL SEPARATOR
€ 4.50
47
0211206108
ref: 47
02112-06107
SCREW
0211206108
€ 1.50
47
0211206108
ref: 47
02112-06107
SCREW
0211206108
€ 1.50
48
3487031300
ref: 48
34870-31301
GAUGE ASSEMBLY,OIL TEMPERATURE
3487031300
€ 121.00
48
3487031300
ref: 48
34870-31301
GAUGE ASSEMBLY,OIL TEMPERATURE
3487031300
€ 121.00
