HEADLAMP (GS1150EF/EF2/EG)
GS1150EF 1986 (G) USA (E03)

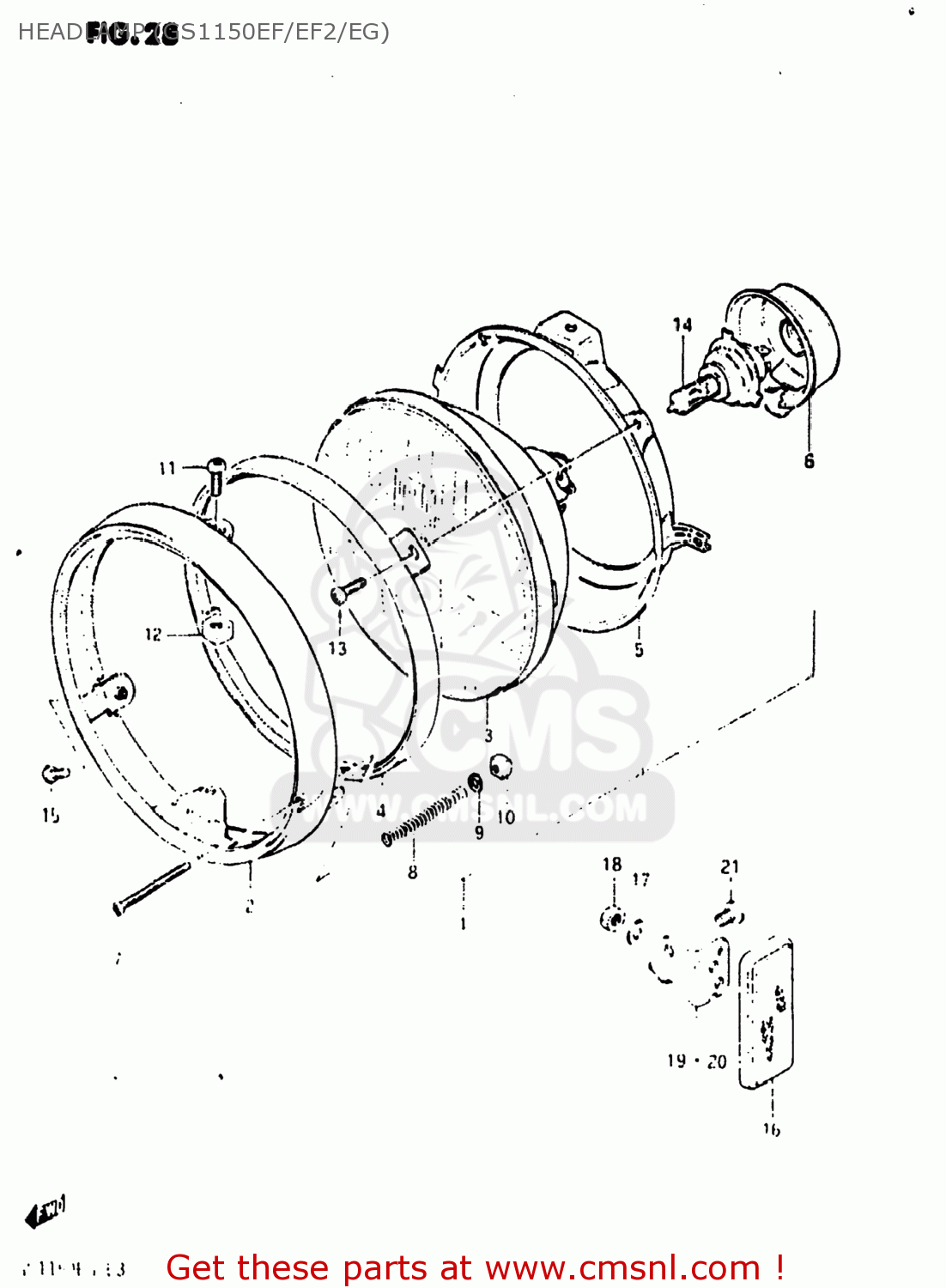

Headlamp (gs1150ef/ef2/eg) diagram GS1150EF 1986 (G) USA (E03)
HEADLAMP (GS1150EF/EF2/EG) GS1150EF 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510000A30999
ref: 1
LAMP ASSEMBLY,HEAD
€ 0.00
2
3511100A20
ref: 2
35111-45900
RIM,HEADLAMP
€ 69.50
3
3512145930
ref: 3
LAMP UNIT
€ 151.00
4
3512745900
ref: 4
RETAINER
€ 30.50
5
3513045900
ref: 5
RING,MOUNTING
€ 126.00
6
3517349200
ref: 6
35173-38A00
COVER,HEADLAMP SOCKET
€ 12.50
7
3515145900
ref: 7
SCREW
€ 4.00
8
3515445900
ref: 8
35154-49200
SPRING,HEADLAMP ADJUST
€ 3.50
9
3515727630
ref: 9
WASHER
€ 2.50
10
3513545600
ref: 10
NUT
€ 3.00
11
0211205128
ref: 11
02112-05127
SCREW
€ 2.50
12
3513545900
ref: 12
NUT
€ 2.50
13
0211204088
ref: 13
02112-04087
SCREW
€ 1.50
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
0213205124
ref: 15
02122-0512A
SCREW
€ 2.00
16
3595043431
ref: 16
REFLEX REFLECTOR,FR SIDE
€ 12.00
17
0832221055
ref: 17
08322-0105A
WASHER,5MM
€ 2.50
18
0831012055
ref: 18
08310-0005A
NUT ,5MM
€ 2.50
19
3595600A00
ref: 19
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
20
3595700A00
ref: 20
BRACKET,FRONT SIDE REFLECTOR
€ 0.00
21
0214205085
ref: 21
02142-0508A
SCREW
€ 2.00
