CYLINDER HEAD
GS1150EF 1986 (G) USA (E03)

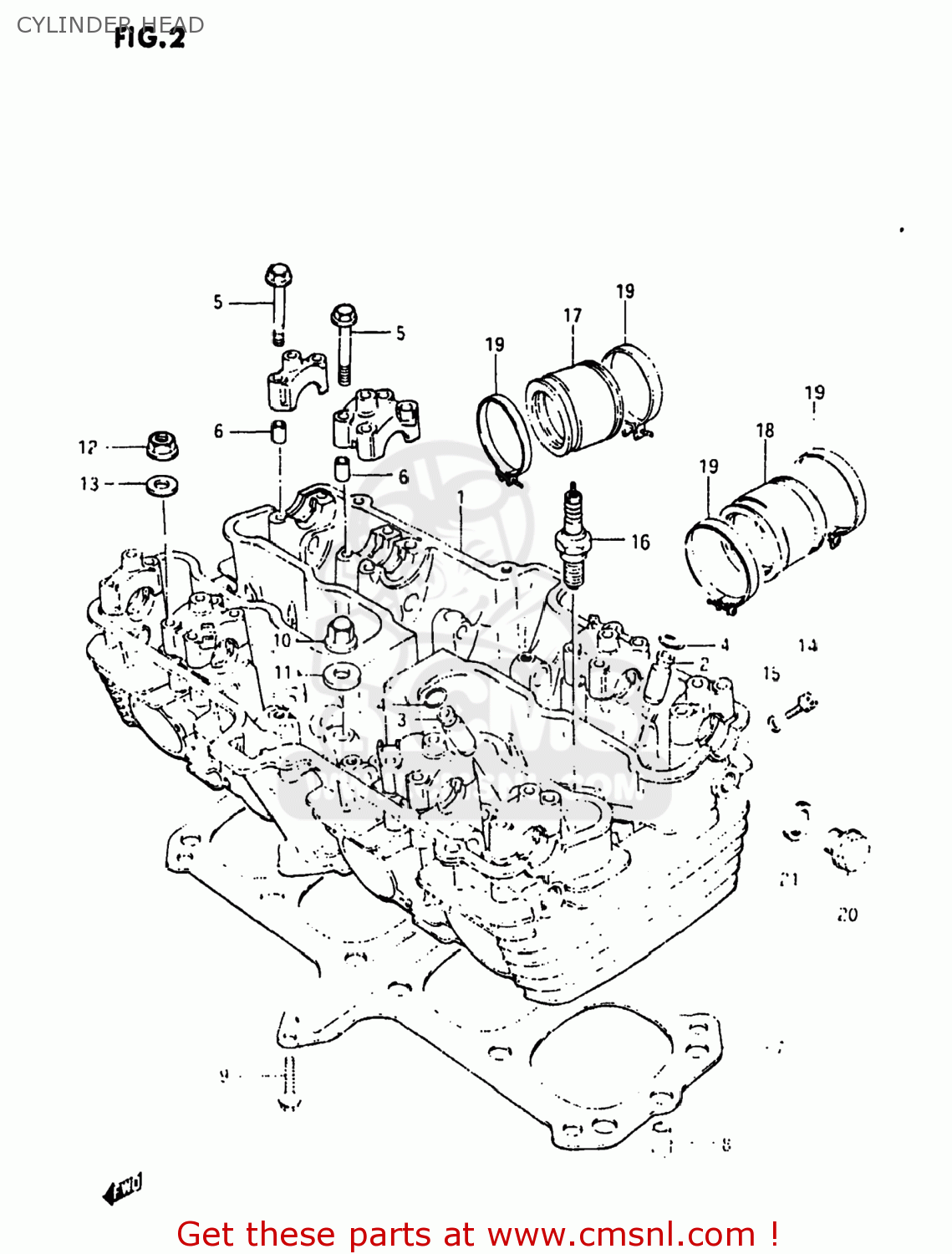

Cylinder head diagram GS1150EF 1986 (G) USA (E03)
CYLINDER HEAD GS1150EF 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110000A03
ref: 1
HEAD,CYLINDER (16 VALVE)
€ 1,330.00
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
€ 19.50
3
1111549290
ref: 3
GUIDE,INTAKE VALVE
€ 19.50
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
1114100A03
ref: 7
GASKET,CYLINDER HEAD (NAS)
€ 120.50
8
0421111189
ref: 8
PIN
€ 2.00
9
0151706305
ref: 9
01550-0630A
BOLT 6X30
€ 2.50
10
0915910026
ref: 10
NUT
€ 6.00
11
0916810017
ref: 11
GASKET(10.5X22X2) (NAS)
€ 3.50
12
0831616108
ref: 12
08316-10107
NUT
€ 2.00
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
€ 2.50
14
0711005085
ref: 14
07130-05083
BOLT, INTAKE PORT
€ 2.50
15
0916805010
ref: 15
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
16-1
0948200184
ref: 16-1
SPARK PLUG D9EA
€ 6.50
16-2
0948200185
ref: 16-2
SPARK PLUG X27ES-U
€ 0.00
17
1311100A00
ref: 17
PIPE,INTAKE RH
€ 22.00
18
1312100A00
ref: 18
13111-00A00
PIPE INTAKE (NAS)
€ 22.00
19
0940252306
ref: 19
CLAMP
€ 6.00
20
0924714012
ref: 20
09247-14026
PLUG (14X12)
€ 3.50
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
