CARBURETOR (FOR MODEL F/F2 OF CALIFORNIA)

GS1150EF 1986 (G) USA (E03)

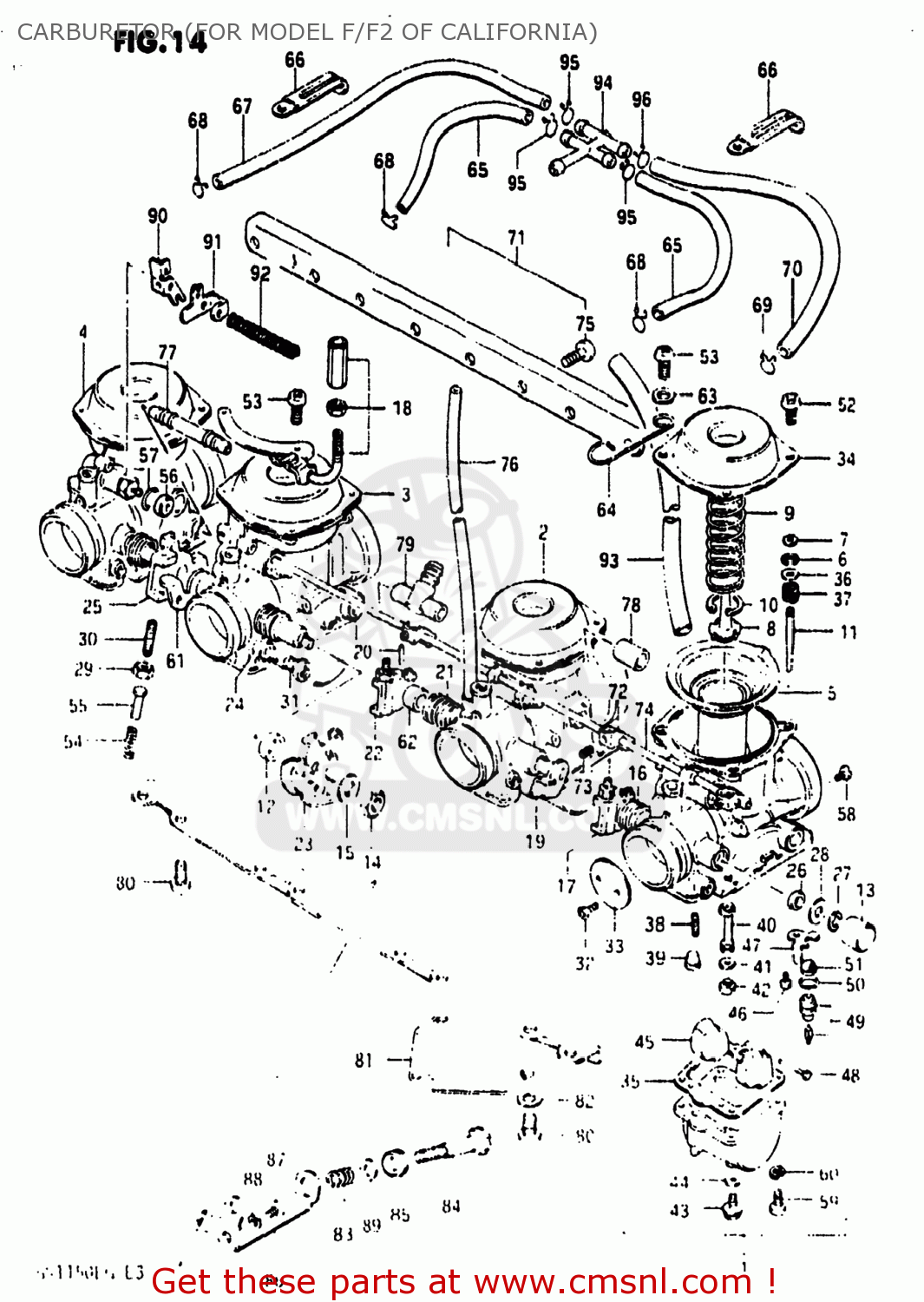

Carburetor (for model f/f2 of california) diagram GS1150EF 1986 (G) USA (E03)

CARBURETOR (FOR MODEL F/F2 OF CALIFORNIA) GS1150EF 1986 (G) USA (E03)
CARBURETOR (FOR MODEL F/F2 OF CALIFORNIA) GS1150EF 1986 (G) USA (E03)
CARBURETOR (FOR MODEL F/F2 OF CALIFORNIA) GS1150EF 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1320100A40
ref: 1
CARBURETOR ASSEMBLY
€ 176.50
2
1320200A40
ref: 2
CARBURETOR ASSEMBLY
€ 176.50
3
1320300A40
ref: 3
CARBURETOR ASSEMBLY
€ 176.50
4
1320400A40
ref: 4
CARBURETOR ASSEMBLY
€ 176.50
5
1350000A10
ref: 5
DIAPHRAGM,CARBURETOR
€ 104.50
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350337100
ref: 9
SPRING
1350337100
€ 9.00
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338300A10
ref: 11
NEEDLE JET
€ 7.50
12
1355749200
ref: 12
GASKET
1355749200
€ 7.00
13
1357845530
ref: 13
13578-47070
CAP,THROTTLE SHAFT
€ 5.50
14
0831022088
ref: 14
08310-00087
NUT 8MM
0831022088
€ 2.00
15
1360647070
ref: 15
WASHER
1360647070
€ 3.00
16
1357347070
ref: 16
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
17
1355000A10
ref: 17
SHAFT,THROTTLE
€ 0.00
18
1362100A10
ref: 18
13621-49220
BRACKET
€ 13.50
19
1355000A20
ref: 19
SHAFT,THROTTLE
€ 0.00
20
1356347070
ref: 20
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
SPRING,THROTTLE SHAFT
€ 0.00
25
1355000A40
ref: 25
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
13651-51010
SEAL
€ 4.00
27
1361744080
ref: 27
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
NUT
1360747070
€ 4.00
30
1360547080
ref: 30
SCREW
1360547080
€ 7.00
31
1360573000
ref: 31
SCREW
1360573000
€ 10.50
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1355100A10
ref: 33
VALVE
€ 0.00
34
1350200A20
ref: 34
COVER,DIAPHRAGM
1350200A20
€ 23.00
35
1325144080
ref: 35
13251-44080-H17
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
36
1338244030
ref: 36
WASHER
1338244030
€ 3.50
37
1338844030
ref: 37
SPRING
1338844030
€ 6.00
37
1338844030
ref: 37
SPRING
1338844030
€ 6.00
38
0949245016
ref: 38
JET,PILOT(45)
0949245016
€ 12.00
38
0949245016
ref: 38
JET,PILOT(45)
0949245016
€ 12.00
39
1335744080
ref: 39
PLUG,NEEDLE JET
1335744080
€ 4.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
1335744080
€ 4.50
40
0949400468
ref: 40
JET,NEEDLE
€ 8.00
40
0949400468
ref: 40
JET,NEEDLE
€ 8.00
41
1333244080
ref: 41
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
41
1333244080
ref: 41
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
42-1
0949124016
ref: 42-1
JET,MAIN(120)
0949124016
€ 11.50
42-1
0949124016
ref: 42-1
JET,MAIN(120)
0949124016
€ 11.50
42-2
0949124013
ref: 42-2
JET,MAIN(122.5)
0949124013
€ 7.00
42-2
0949124013
ref: 42-2
JET,MAIN(122.5)
0949124013
€ 7.00
43
1324744080
ref: 43
PLUG,DRAIN
1324744080
€ 9.50
43
1324744080
ref: 43
PLUG,DRAIN
1324744080
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
1324644080
€ 3.50
44
1324644080
ref: 44
GASKET (NAS)
1324644080
€ 3.50
45
1325044080
ref: 45
FLOAT
1325044080
€ 31.00
45
1325044080
ref: 45
FLOAT
1325044080
€ 31.00
46
0211204068
ref: 46
02112-0406B
SCREW 4X6
0211204068
€ 2.00
46
0211204068
ref: 46
02112-0406B
SCREW 4X6
0211204068
€ 2.00
47
1337311400
ref: 47
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
47
1337311400
ref: 47
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
48
1325492311
ref: 48
PIN,FLOAT
1325492311
€ 2.00
48
1325492311
ref: 48
PIN,FLOAT
1325492311
€ 2.00
49
1337011400
ref: 49
13370-44500
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
49
1337011400
ref: 49
13370-44500
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
50
1337444080
ref: 50
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
1337444080
ref: 50
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
51
1337665010
ref: 51
13376-19F00
FILTER
€ 6.50
51
1337665010
ref: 51
13376-19F00
FILTER
€ 6.50
52
0211205105
ref: 52
02112-0510A
SCREW
€ 2.00
52
0211205105
ref: 52
02112-0510A
SCREW
€ 2.00
53
0211205125
ref: 53
02112-0512A
SCREW
0211205125
€ 1.50
53
0211205125
ref: 53
02112-0512A
SCREW
0211205125
€ 1.50
54
1326844010
ref: 54
SPRING,THROTTLE SCREW
1326844010
€ 3.00
54
1326844010
ref: 54
SPRING,THROTTLE SCREW
1326844010
€ 3.00
55
1357547070
ref: 55
PIN,THROTTLE LEVER
1357547070
€ 2.50
55
1357547070
ref: 55
PIN,THROTTLE LEVER
1357547070
€ 2.50
56
1368231210
ref: 56
CAP,STARTER VALVE
1368231210
€ 5.00
56
1368231210
ref: 56
CAP,STARTER VALVE
1368231210
€ 5.00
57
1327847090
ref: 57
O RING
1327847090
€ 2.00
57
1327847090
ref: 57
O RING
1327847090
€ 2.00
58
0949324005
ref: 58
JET,AIR
0949324005
€ 13.00
58
0949324005
ref: 58
JET,AIR
0949324005
€ 13.00
59
0211205165
ref: 59
02112-05164
SCREW
0211205165
€ 2.00
59
0211205165
ref: 59
02112-05164
SCREW
0211205165
€ 2.00
60
0832121055
ref: 60
08321-0105A
WASHER,LOCK
0832121055
€ 3.00
60
0832121055
ref: 60
08321-0105A
WASHER,LOCK
0832121055
€ 3.00
61
1355000A30
ref: 61
SHAFT,THROTTLE
€ 0.00
61
1355000A30
ref: 61
SHAFT,THROTTLE
€ 0.00
62
1338744210
ref: 62
SPACER,THROTTLE SHAFT
€ 0.00
62
1338744210
ref: 62
SPACER,THROTTLE SHAFT
€ 0.00
63
1360600A10
ref: 63
08322-0105A
WASHER
€ 2.00
63
1360600A10
ref: 63
08322-0105A
WASHER
€ 2.00
64
1369200A20
ref: 64
CLIP
€ 0.00
64
1369200A20
ref: 64
CLIP
€ 0.00
65
1368300A50
ref: 65
13683-06A10
HOSE
€ 6.50
65
1368300A50
ref: 65
13683-06A10
HOSE
€ 6.50
66
0940406401
ref: 66
09404-06432
CLAMP L:35
0940406401
€ 2.50
66
0940406401
ref: 66
09404-06432
CLAMP L:35
0940406401
€ 2.50
67
1368300A60
ref: 67
13683-06A10
HOSE
€ 6.50
67
1368300A60
ref: 67
13683-06A10
HOSE
€ 6.50
68
1367111300
ref: 68
CLIP
1367111300
€ 4.50
68
1367111300
ref: 68
CLIP
1367111300
€ 4.50
69
1367105A40
ref: 69
CLIP
1367105A40
€ 4.00
69
1367105A40
ref: 69
CLIP
1367105A40
€ 4.00
70
1368300A70
ref: 70
13683-06A00
HOSE
€ 7.50
70
1368300A70
ref: 70
13683-06A00
HOSE
€ 7.50
71
1321000A10
ref: 71
CARBURETOR ASSEMBLY
€ 0.00
71
1321000A10
ref: 71
CARBURETOR ASSEMBLY
€ 0.00
72
1342249330
ref: 72
13422-44080
LEVER
€ 10.00
72
1342249330
ref: 72
13422-44080
LEVER
€ 10.00
73
1360549330
ref: 73
13605-47070
SCREW
1360549330
€ 5.50
73
1360549330
ref: 73
13605-47070
SCREW
1360549330
€ 5.50
74
1341049200
ref: 74
SHAFT,STARTER
1341049200
€ 29.00
74
1341049200
ref: 74
SHAFT,STARTER
1341049200
€ 29.00
75
0211205125
ref: 75
02112-0512A
SCREW
0211205125
€ 1.50
75
0211205125
ref: 75
02112-0512A
SCREW
0211205125
€ 1.50
76
1368345110
ref: 76
09355-45855-600
HOSE
€ 14.00
76
1368345110
ref: 76
09355-45855-600
HOSE
€ 14.00
77
1368549210
ref: 77
NIPPLE
1368549210
€ 16.50
77
1368549210
ref: 77
NIPPLE
1368549210
€ 16.50
78
1368344080
ref: 78
09354-65113-600
HOSE
€ 26.00
78
1368344080
ref: 78
09354-65113-600
HOSE
€ 26.00
79
1368549200
ref: 79
NIPPLE
1368549200
€ 26.50
79
1368549200
ref: 79
NIPPLE
1368549200
€ 26.50
80
0211206125
ref: 80
02112-0612A
SCREW
0211206125
€ 1.50
80
0211206125
ref: 80
02112-0612A
SCREW
0211206125
€ 1.50
81
1361949210
ref: 81
CLIP
1361949210
€ 10.00
81
1361949210
ref: 81
CLIP
1361949210
€ 10.00
82
1361549200
ref: 82
WASHER
€ 0.00
82
1361549200
ref: 82
WASHER
€ 0.00
83
1327193011
ref: 83
SPRING
1327193011
€ 4.50
83
1327193011
ref: 83
SPRING
1327193011
€ 4.50
84
1326743420
ref: 84
13267-34390
ADJUSTER
€ 15.50
84
1326743420
ref: 84
13267-34390
ADJUSTER
€ 15.50
85
1327634390
ref: 85
BUSH
1327634390
€ 6.00
85
1327634390
ref: 85
BUSH
1327634390
€ 6.00
86
1362700A10
ref: 86
13627-44120
BRACKET
€ 0.00
86
1362700A10
ref: 86
13627-44120
BRACKET
€ 0.00
87
0211205105
ref: 87
02112-0510A
SCREW
€ 2.00
87
0211205105
ref: 87
02112-0510A
SCREW
€ 2.00
88
0832121055
ref: 88
08321-0105A
WASHER,LOCK
0832121055
€ 3.00
88
0832121055
ref: 88
08321-0105A
WASHER,LOCK
0832121055
€ 3.00
89
1343234390
ref: 89
13427-38300
WASHER
€ 1.50
89
1343234390
ref: 89
13427-38300
WASHER
€ 1.50
90
1341349360
ref: 90
13413-49220
LEVER
€ 4.00
90
1341349360
ref: 90
13413-49220
LEVER
€ 4.00
91
1342149360
ref: 91
13421-49220
LEVER
€ 3.00
91
1342149360
ref: 91
13421-49220
LEVER
€ 3.00
92
1343749360
ref: 92
SPRING
€ 0.00
92
1343749360
ref: 92
SPRING
€ 0.00
93
1368300A40
ref: 93
09352-50823-00B
HOSE
€ 13.00
93
1368300A40
ref: 93
09352-50823-00B
HOSE
€ 13.00
94
1727105A00
ref: 94
DUCT,FAN COOLING NO.1
€ 4.00
94
1727105A00
ref: 94
DUCT,FAN COOLING NO.1
€ 4.00
95
1367111300
ref: 95
CLIP
1367111300
€ 4.50
95
1367111300
ref: 95
CLIP
1367111300
€ 4.50
96
1367105A40
ref: 96
CLIP
1367105A40
€ 4.00
96
1367105A40
ref: 96
CLIP
1367105A40
€ 4.00
up

all assemblies

AIR CLEANER
BATTERY
CAM CHAIN
CAM SHAFT - VALVE
CANISTER (FOR MODEL F OF CALIFORNIA)
CARBURETOR (FOR MODEL F/F2 OF CALIFORNIA)
CARBURETOR (GS1150ES3/ESE/ESF/EG)
CLUTCH
COWLING (GS1150ES3/ESE)
COWLING (MODEL F/F2)
CRANKCASE (GS1150ES3/ESE E.NO.102248~/MODEL F/F2/G)
CRANKCASE (GS1150ES3/ESE ~E.NO.102247)
CRANKCASE COVER
CRANKSHAFT
CUSHION LEVER
CYLINDER (GS1150ES3/ESE E.NO.101425~/MODEL F/F2/G)
CYLINDER (GS1150ES3/ESE ~E.NO.101424)
CYLINDER HEAD
CYLINDER HEAD COVER
ELECTRICAL
FOOTREST
FRAME
FRAME COVER (GS1150EF/EF2/EG)
FRAME COVER (GS1150ES3/ESE/ESF)
FRONT BRAKE HOSE
FRONT CALIPERS
FRONT DAMPER
FRONT FENDER (GS1150ES3/ESE/ESF)
FRONT MASTER CYLINDER (GS1150EF/EF2/EG)
FRONT MASTER CYLINDER (GS1150ES3/ESE/ESF)
FRONT WHEEL
FUEL COCK
FUEL TANK (GS1150EF/EF2/EG)
FUEL TANK (GS1150ESE/ESF/ESG)
GEAR SHIFTING
GENERATOR
HANDLEBAR (GS1150EF/EF2/EG)
HANDLEBAR (GS1150ES3/ESE/ESF)
HEADLAMP (GS1150EF/EF2/EG)
HEADLAMP (GS1150ES3/ESE/ESF)
HOUSING HEADLAMP - FRONT FENDER (GS1150EF/EF2/EG)
LEFT HANDLE SWITCH (GS1150EF/EF2/EG)
LEFT HANDLE SWITCH (GS1150ES3/ESE/ESF)
MUFFLER
OIL COOLER
OIL PUMP - OIL FILTER
OPTIONAL (GS1150ES3/ESE)
PILLION RIDER HANDLE
REAR CALIPERS
REAR FENDER
REAR MASTER CYLINDER
REAR SHOCK ABSORBER
REAR SWINGING ARM
REAR WHEEL
RIGHT HANDLE SWITCH
SEAT
SEAT MOLDING (GS1150EF/EF2/EG)
SEAT MOLDING (GS1150ES3/ESE/ESF)
SIGNAL GENERATOR
SPEEDOMETER - TACHOMETER
STAND
STARTER CLUTCH
STARTING MOTOR
STEERING STEM (GS1150EF/EF2/EG)
STEERING STEM (GS1150ES3/ESE/ESF)
TAIL LAMP - LICENSE LAMP
TRANSMISSION
TURN SIGNAL LAMP
WIRING HARNESS
up
