BATTERY

GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

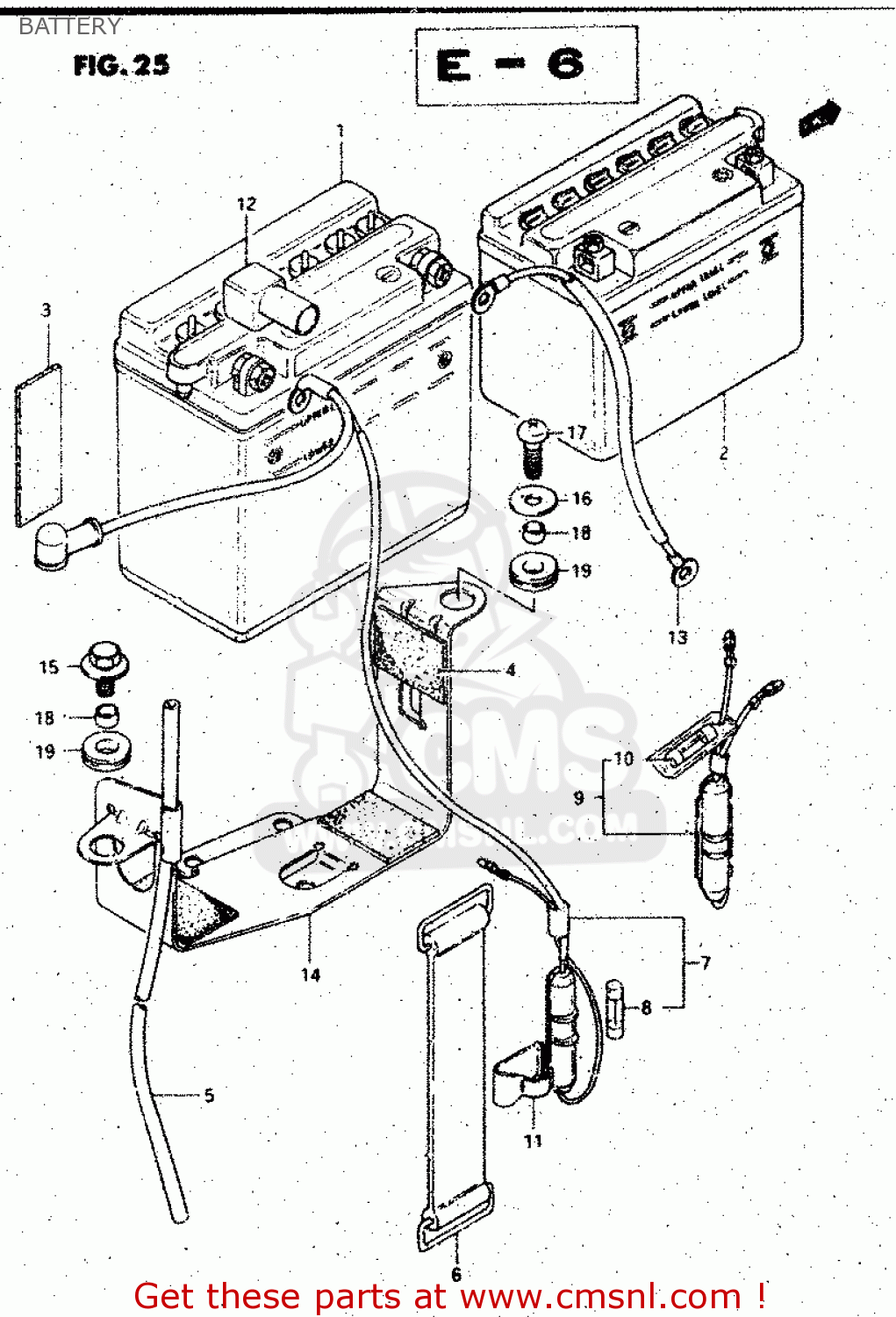

Battery diagram GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

BATTERY GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

BATTERY GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

prices are in EUR

ref

part #

description

quantity

1

3361010310
ref: 1
GS125ESZ/EZ/ESD/ESF/

BATTERY ASSY(YB7-A)

€ 81.50

2

3361002500
ref: 2
GS125Z/D,UR E71

BATTERY ASSY(YB4L-B,12V4.2AH)

€ 26.50

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

5

3368016A10
ref: 5
L:780ARROW RIGHT450

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

6-1

0946200028
ref: 6-1
MODEL Z/D

BAND

€ 8.50

6-2

0946200020
ref: 6-2
MODEL F/K/L/M/R

BAND

€ 7.00

7-1

3674011500
ref: 7-1
GS125ESZ/EZ/ESD

FUSE CASE AND PLUS CABLE

€ 18.00

7-2

3674005300
ref: 7-2
GS125ESF/ESK/ESL/ESM

WIRE & FUSE,BATTERY PLUS LEAD

€ 0.00

8

0948115001
ref: 8

FUSE(15A)

€ 3.00

9

3674002201
ref: 9
GS125Z/D,UR E71

CASE ASSY,FUSE

€ 12.50

10

0948110001
ref: 10

FUSE(10A)

€ 2.00

11

3679146700
ref: 11

HOLDER,FUSE CASE

€ 9.00

12-1

3362445000
ref: 12-1
MODEL Z/D

CAP,TERMINAL

€ 5.50

12-2

3362435B00
ref: 12-2
MODEL F/K/L/M/R

CAP,BATTERY PLUS

€ 6.50

13

3385034500
ref: 13
GS125ESZ/EZ/ESD/ESF/

LEAD WIRE,BATTERY(-)

€ 7.00

14-1

4154038300
ref: 14-1
MODEL Z/D/F/K/L/M

HOLDER,BATTERY

€ 18.50

14-2

4154038301
ref: 14-2
MODEL R

HOLDER,BATTERY

€ 18.50

15

0911606008
ref: 15

BOLT 6X16

€ 2.50

16

0916006027
ref: 16

WASHER (6.5X20X1.2)

€ 2.00

17

0912906003
ref: 17

SCREW(6X21)

€ 2.00

18

0918006038
ref: 18

SPACER(6.1X9X7.5)

€ 2.00

19

0932008021
ref: 19

CUSHION

€ 4.00
