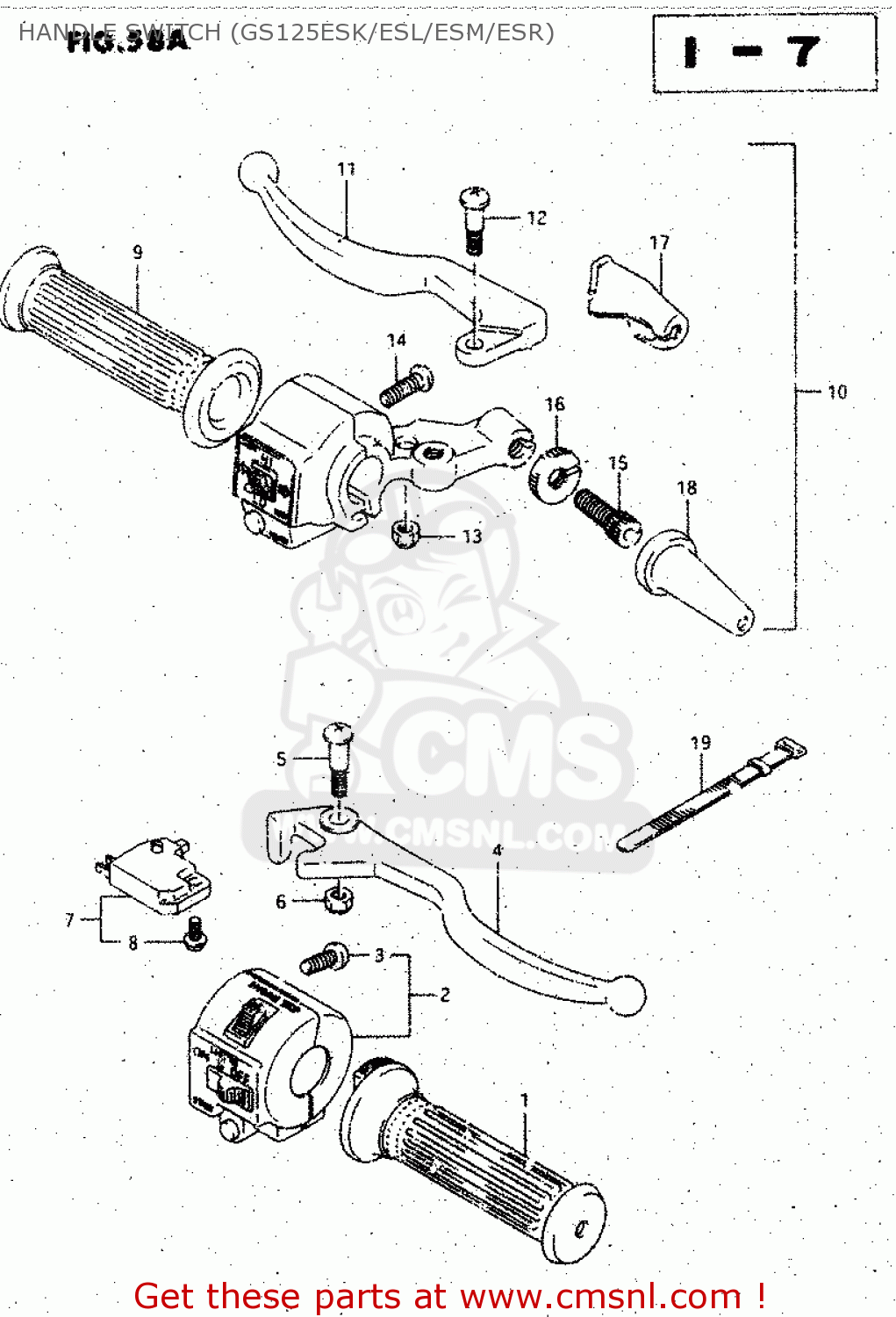

HANDLE SWITCH (GS125ESK/ESL/ESM/ESR)

GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

Handle switch (gs125esk/esl/esm/esr) diagram GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

HANDLE SWITCH (GS125ESK/ESL/ESM/ESR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

HANDLE SWITCH (GS125ESK/ESL/ESM/ESR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

prices are in EUR

ref

part #

description

quantity

1

5711013010
ref: 1

GRIP,THROTTLE

€ 17.50

2-1

3720005330
ref: 2-1
E1,E24

SWITCH ASSY,HANDLE,R

€ 114.00

2-2

3720005340
ref: 2-2
E2

SWITCH ASSY,HANDLE,R

€ 103.00

3

0211205205
ref: 3

SCREW 5X20

€ 2.50

4

5742113001
ref: 4

LEVER,BRAKE

€ 18.00

5-1

5743113010
ref: 5-1
GS125ESK/ESL

SCREW

€ 5.50

5-2

5743113030
ref: 5-2
GS125ESM/ESR

SCREW,BRAKE LEVER

€ 6.50

6

0831921065
ref: 6

NUT

€ 2.50

7

5746017C00
ref: 7

SWITCH ASSEMBLY,STOP

€ 32.50

8

5746517C00
ref: 8

SCREW

€ 1.50

9

5721146020
ref: 9

GRIP, LH

€ 0.00

10

5750005312
ref: 10

LEVER ASSY,CLUTCH

€ 71.00

11

5762036500
ref: 11

LEVER,CLUTCH

€ 34.50

12

5743113001
ref: 12

SCREW

€ 5.00

13

0831921057
ref: 13

NUT

€ 1.50

14

0211205207
ref: 14

SCREW

€ 3.00

15

5744111010
ref: 15

ADJUSTER,CABLE

€ 8.00

16

5744211010
ref: 16

NUT,CABLE ADJUSTER

€ 4.00

17

5766131000
ref: 17

COVER,CLUTCH LEVER

€ 5.50

18

5827331000
ref: 18

BOOT,CLUTCH CABLE

€ 2.50

19

0940712402
ref: 19

CLAMP(L:120)

€ 3.00
