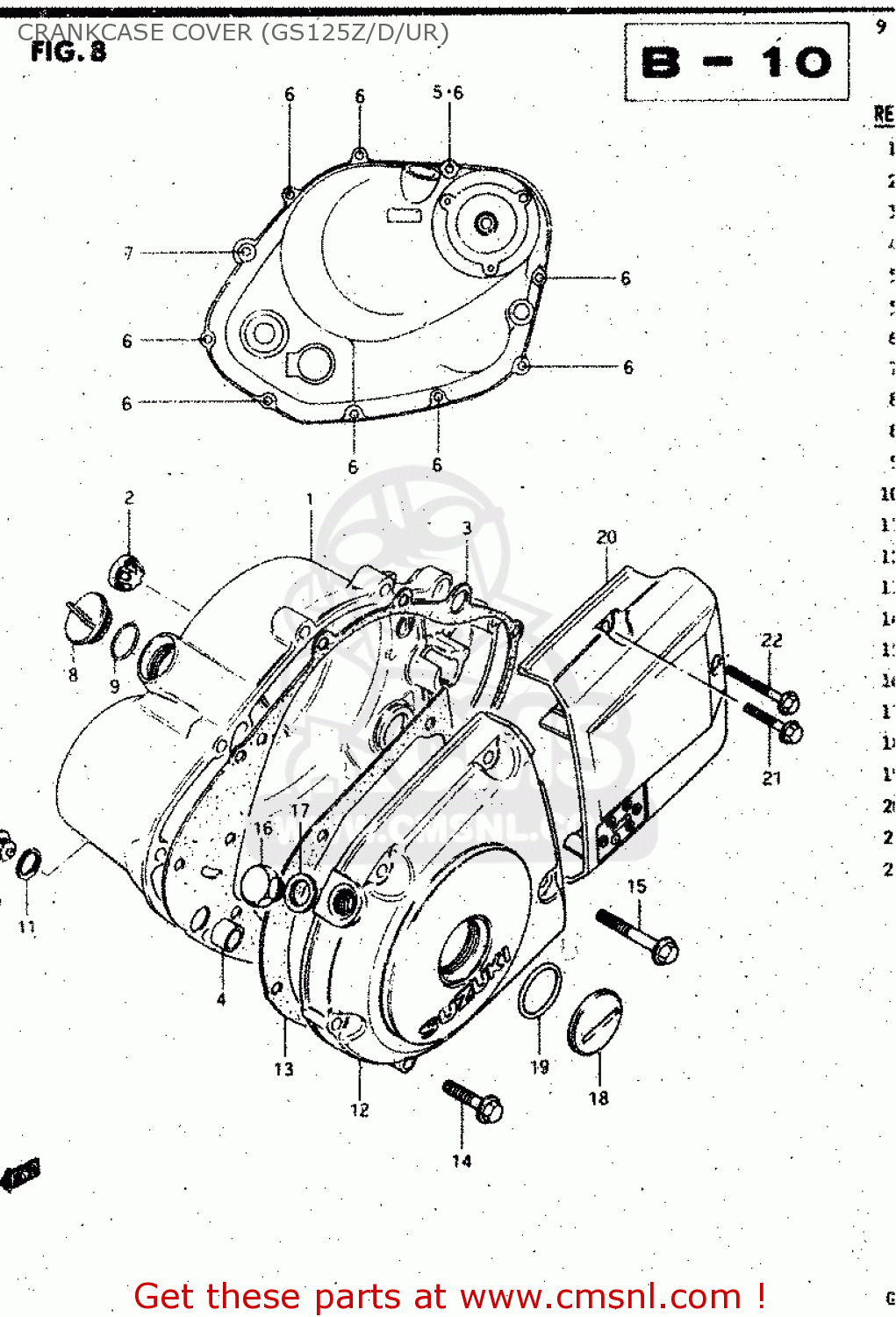

CRANKCASE COVER (GS125Z/D/UR)

GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

Crankcase cover (gs125z/d/ur) diagram GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

CRANKCASE COVER (GS125Z/D/UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

CRANKCASE COVER (GS125Z/D/UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

prices are in EUR

ref

part #

description

quantity

1

1134005280
ref: 1
ARROW LEFT11340-0520

COVER,CLUTCH

€ 87.00

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148205210
ref: 3

GASKET,CLUTCH COVER (NAS)

€ 13.00

4

0421113189
ref: 4
ARROW LEFT09206-1300

PIN

€ 2.50

5-1

0916806023
ref: 5-1
MODEL Z/D

GASKET(5.8X13X1.2) (NAS)

€ 2.00

5-2

0916806024
ref: 5-2
MODEL R

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0154706307
ref: 6

BOLT

€ 2.50

7

0154706457
ref: 7

BOLT

€ 2.50

8-1

0925920009
ref: 8-1
MODEL Z/D

PLUG

€ 6.50

8-2

0925920018
ref: 8-2
MODEL R

PLUG (20X10)

€ 6.50

9

0928017003
ref: 9

O RING(D:3.1,ID:16.8)

€ 2.00

10

0924714826
ref: 10
ARROW LEFT09247-1401

PLUG, OIL CHECK

€ 0.00

11

0916814002
ref: 11

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

12

1135105201
ref: 12

COVER,MAGNETO

€ 87.00

13

1148305210
ref: 13

GASKET,MAGNETO COVER (NAS)

€ 7.50

14

0154706307
ref: 14

BOLT

€ 2.50

15

0154706407
ref: 15

BOLT

€ 2.50

16

0924712104
ref: 16

PLUG,12X9

€ 2.50

17

0916812002
ref: 17

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

18

0925926811
ref: 18
ARROW LEFT09259-2600

PLUG

€ 0.00

19

0928022008
ref: 19

O RING(D:3.1,ID:22.7)

€ 2.50

20

1136105221
ref: 20

COVER,ENGINE SPROCKET

€ 24.00

21

0154705257
ref: 21

BOLT

€ 2.00

22

0154705457
ref: 22

BOLT

€ 2.00
