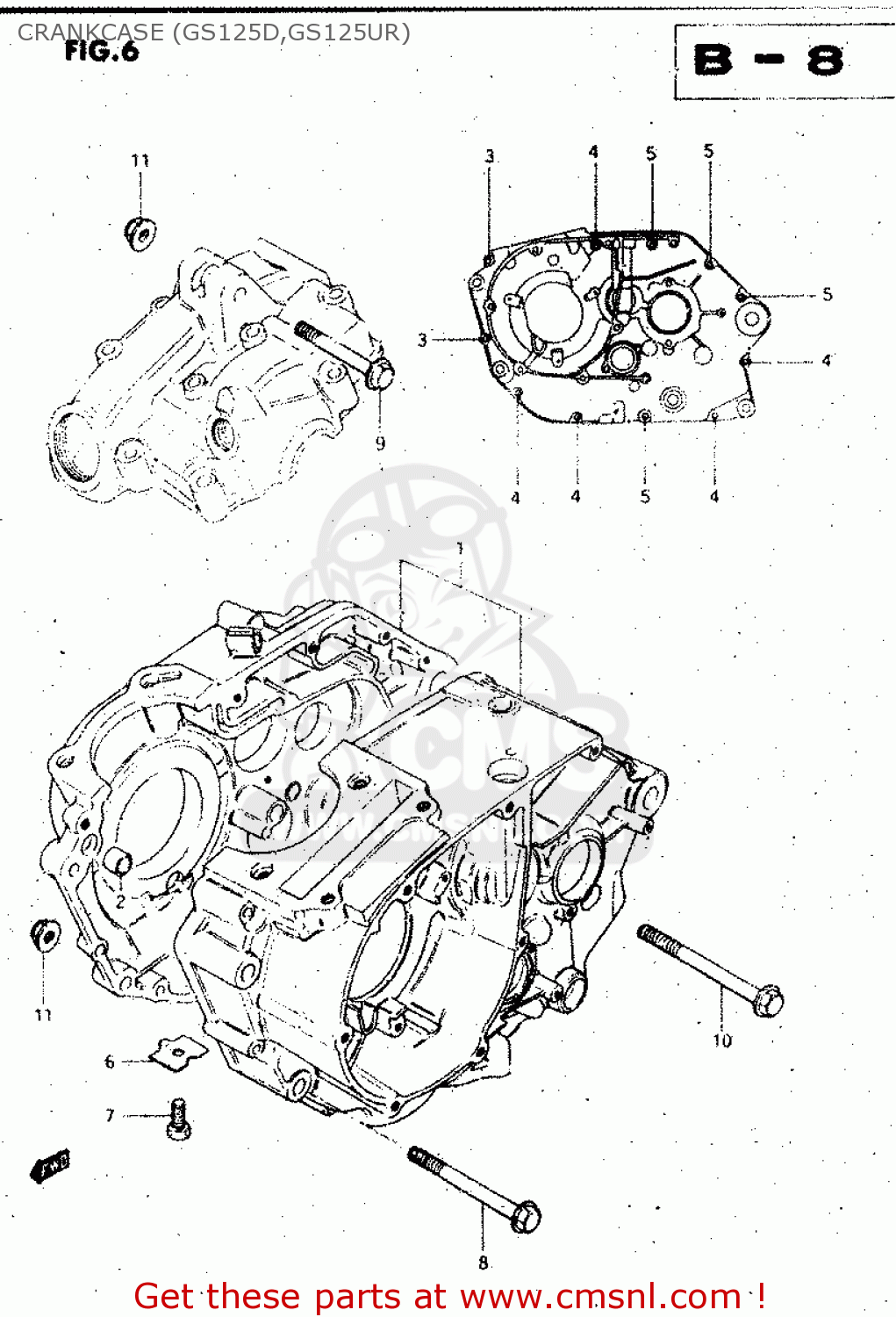

CRANKCASE (GS125D,GS125UR)

GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

Crankcase (gs125d,gs125ur) diagram GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

CRANKCASE (GS125D,GS125UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24
CRANKCASE (GS125D,GS125UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24
CRANKCASE (GS125D,GS125UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24
prices are in EUR
ref
part #
description
quantity
1
1130005854
ref: 1
CRANKCASE SET
€ 247.50
2
0421113189
ref: 2
ARROW LEFT09206-1300
PIN
0421113189
€ 2.50
3-1
0154706454
ref: 3-1
MODEL D
BOLT
0154706454
€ 3.00
3-2
0154706453
ref: 3-2
MODEL R
BOLT
0154706453
€ 3.00
4-1
0154706605
ref: 4-1
MODEL D
BOLT (6X60)
€ 3.50
4-2
0154706603
ref: 4-2
MODEL R
BOLT
€ 3.50
5-1
0154706755
ref: 5-1
MODEL D
BOLT (6X75)
€ 2.00
5-2
0154706753
ref: 5-2
MODEL R
BOLT
€ 2.00
6-1
1131905210
ref: 6-1
MODEL D
PLATE,OIL GALLERY PLUG
€ 2.50
6-2
1131905200
ref: 6-2
MODEL R
PLATE,OIL GALLERY PLUG
1131905200
€ 2.50
7-1
0110706104
ref: 7-1
MODEL D
BOLT
€ 2.00
7-2
0150006103
ref: 7-2
MODEL R
BOLT
€ 2.00
8
0910308016
ref: 8
BOLT(8X80)
0910308016
€ 8.00
9
0910308081
ref: 9
BOLT(8X50)
0910308081
€ 3.50
10
0910308010
ref: 10
BOLT(8X88)
0910308010
€ 55.50
11
0831931087
ref: 11
NUT
0831931087
€ 2.50
