FRONT WHEEL (GS125UR)

GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

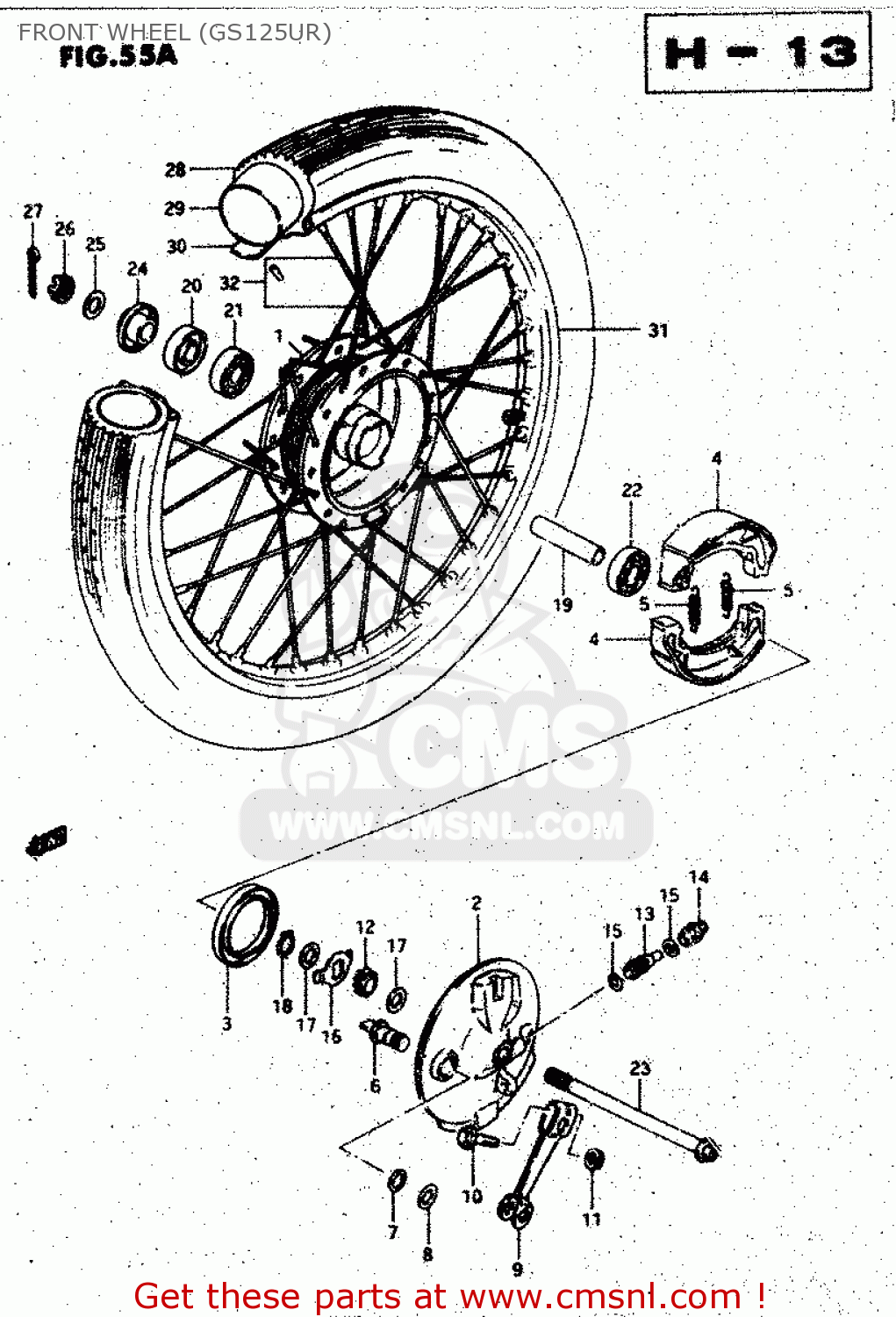

Front wheel (gs125ur) diagram GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24

FRONT WHEEL (GS125UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24
FRONT WHEEL (GS125UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24
FRONT WHEEL (GS125UR) GS125 1983 (D) GENERAL EXP UNITED KINGDOM AUSTRALIA (E01 E02 E24
prices are in EUR
ref
part #
description
quantity
1
5411007003
ref: 1
HUB,FR WHEEL
€ 137.50
2
5421005301
ref: 2
PANEL,FRONT BRAKE ANCHOR
€ 0.00
3
0928548001
ref: 3
SEAL,OIL(48X62X7)
0928548001
€ 5.50
4
5441007040
ref: 4
SHOE,BRAKE
€ 35.00
5
0944307001
ref: 5
SPRING(L:34)
0944307001
€ 2.50
6
5444129305
ref: 6
CAM,BRAKE
5444129305
€ 13.00
7
0928014003
ref: 7
O-RING (D:2.4 ID:13.8)
0928014003
€ 3.50
8
0916014001
ref: 8
WASHER (14.5X22X1.6)
0916014001
€ 2.50
9
5445146110
ref: 9
LEVER,FR BRAKE CAM
5445146110
€ 7.50
10
0155006353
ref: 10
BOLT
0155006353
€ 2.50
11
0831610063
ref: 11
NUT
0831610063
€ 2.50
12
5461107002
ref: 12
GEAR,SPEEDOMETER(NT:24)
5461107002
€ 16.50
13
5462139202
ref: 13
PINION,SPEEDOMETER(NT:9)
5462139202
€ 33.50
14
5463202201
ref: 14
BUSH,SPEEDOMETER PINION OUTER
5463202201
€ 6.50
15
0916005001
ref: 15
WASHER (5.1X9X0.4)
0916005001
€ 2.00
16
5466107000
ref: 16
DRIVER,SPEEDOMETER GEAR
5466107000
€ 3.00
17
0916018002
ref: 17
WASHER(18.5X24X1)
0916018002
€ 2.00
18
0833131186
ref: 18
CLIP
€ 2.00
19
0918012032
ref: 19
SPACER(12.6X19X47)
€ 6.00
20
0928418001
ref: 20
OIL SEAL(17X38X5)
0928418001
€ 12.50
21
0811363010
ref: 21
BEARING
0811363010
€ 9.50
22
0814363017
ref: 22
BEARING
0814363017
€ 14.50
23
5471141101
ref: 23
AXLE,FR
5471141101
€ 42.00
24
5474041301
ref: 24
SPACER,FR AXLE,R
€ 5.50
25
0832201127
ref: 25
WASHER
0832201127
€ 2.00
26
0914112003
ref: 26
NUT
0914112003
€ 4.50
27
0411120308
ref: 27
COTTER PIN
€ 1.00
28
5510012B00
ref: 28
TIRE,FR(2.75-18)
€ 201.00
29
5520011601
ref: 29
TUBE,INNER
€ 24.50
30
5526111010
ref: 30
PROTECTOR,INNER TUBE
5526111010
€ 3.50
31
5531105300
ref: 31
RIM,FR WHEEL 1.60X18
5531105300
€ 86.50
32
5532005300
ref: 32
SPOKE SET,FRONT
€ 34.50
