CLUTCH

GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

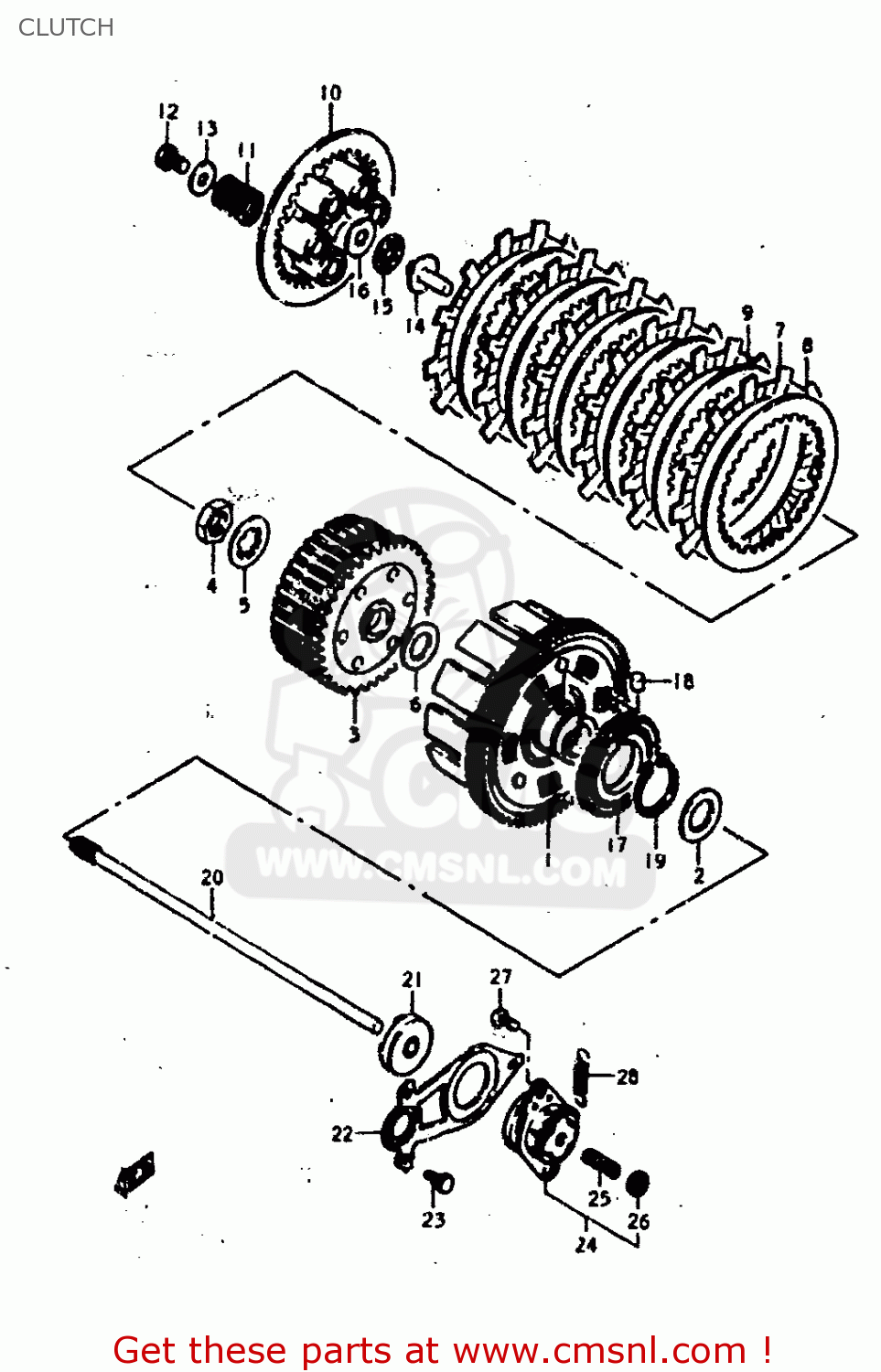

Clutch diagram GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

CLUTCH GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
CLUTCH GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
CLUTCH GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1
2120044000
ref: 1
NT:76
GEAR ASSEMBLY,PRIMARY DRIVE
€ 0.00
2
0821125381
ref: 2
WASHER
0821125381
€ 3.00
3
2141144001
ref: 3
HUB,CLUTCH SLEEVE
2141144001
€ 94.00
4
0914020002
ref: 4
NUT (20MM)
0914020002
€ 3.50
5
0916720006
ref: 5
WASHER,LOCK
0916720006
€ 3.00
6
0916020028
ref: 6
WASHER(20X38X2)
0916020028
€ 6.50
7
2144145000
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 20.00
8
2145131000
ref: 8
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
9
2145145000
ref: 9
PLATE,CLUTCH DRIVEN (NAS)
2145145000
€ 10.50
10
2146216500
ref: 10
DISC,CLUTCH PRESSURE
2146216500
€ 51.00
11
0944019004
ref: 11
SPRING
0944019004
€ 3.00
12
0110706168
ref: 12
BOLT, UPPER
€ 3.00
13
0916006020
ref: 13
15.5X24X2.3
WASHER
0916006020
€ 2.00
14
2312144001
ref: 14
PIECE,CLUTCH PUSH
€ 21.50
15
0926315003
ref: 15
BEARING(15X28X2)
0926315003
€ 7.00
16
0916015015
ref: 16
15X28X1
WASHER
€ 4.00
17
1632144001
ref: 17
NT:38
GEAR,OIL PUMP DRIVE
1632144001
€ 26.00
18
0926106002
ref: 18
PIN(6X6)
0926106002
€ 1.50
19
0833131389
ref: 19
CIRCLIP
0833131389
€ 2.50
20
2311044002
ref: 20
ROD,CLUTCH PUSH
€ 18.50
21
0928306001
ref: 21
OIL SEAL
0928306001
€ 9.50
22
2311744000
ref: 22
RETAINER,CL PUSH ROD OIL SEAL
2311744000
€ 17.00
23
0110706128
ref: 23
BOLT
0110706128
€ 2.00
24
2320044001
ref: 24
SCREW ASSEMBLY,CLUTCH RELEASE
€ 65.00
25
0913406001
ref: 25
SCREW
0913406001
€ 3.00
26
0831022068
ref: 26
NUT 6MM
€ 2.50
27
0211206128
ref: 27
SCREW 6X12
0211206128
€ 2.00
28
0944308001
ref: 28
SPRING
0944308001
€ 3.00
