MUFFLER

GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

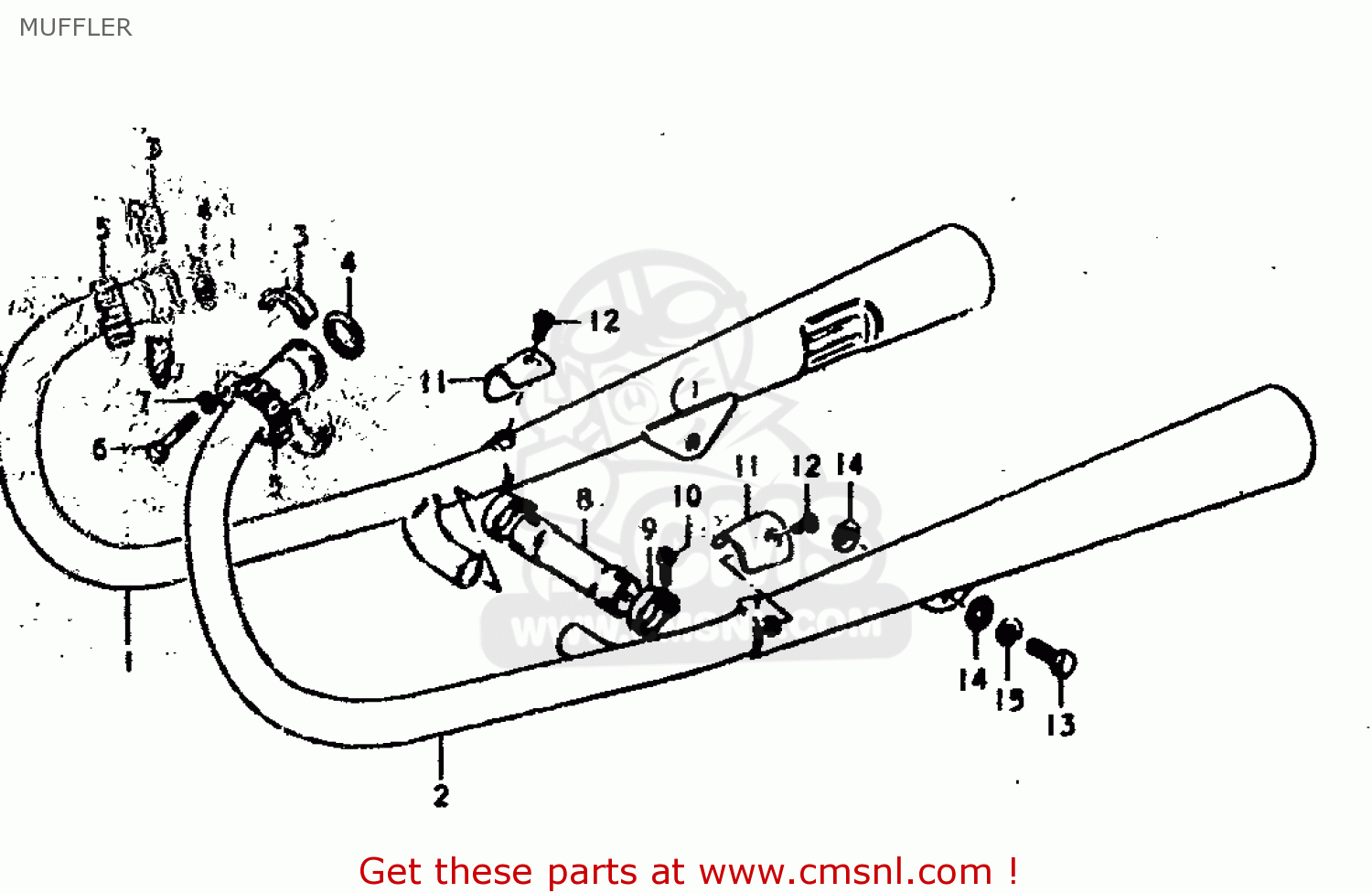

Muffler diagram GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

prices are in EUR

ref

part #

description

quantity

1431044013
ref: 1

BODY,MUFFLER

€ 495.50

1434044013
ref: 2

BODY,MUFFLER

€ 572.00

1415549000A
ref: 3

PLATE,EXHAUST P

€ 9.50

1418111010
ref: 4

GASKET,EXHAUST PIPE (NAS)

€ 8.00

1418244010
ref: 5

CLAMP,EXHAUST PIPE

€ 53.50

0110708358
ref: 6

BOLT

€ 3.50

0832121088
ref: 7

LOCK WASHER

€ 2.00

1421144010
ref: 8

PIPE,EXHAUST COUPLER

€ 107.50

0940235601
ref: 9

CLAMP

€ 5.00

0151406258
ref: 10

BOLT

€ 2.50

1478144010
ref: 11

COVER,MUFFLER,RIGHT

€ 10.50

0211205068
ref: 12

SCREW

€ 4.00

0110710258
ref: 13

BOLT 10X25

€ 3.00

0832221108
ref: 14

WASHER

€ 2.50

0832121108
ref: 15

LOCK WASHER

€ 2.00
