SPECIAL MARKET (E22)

GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

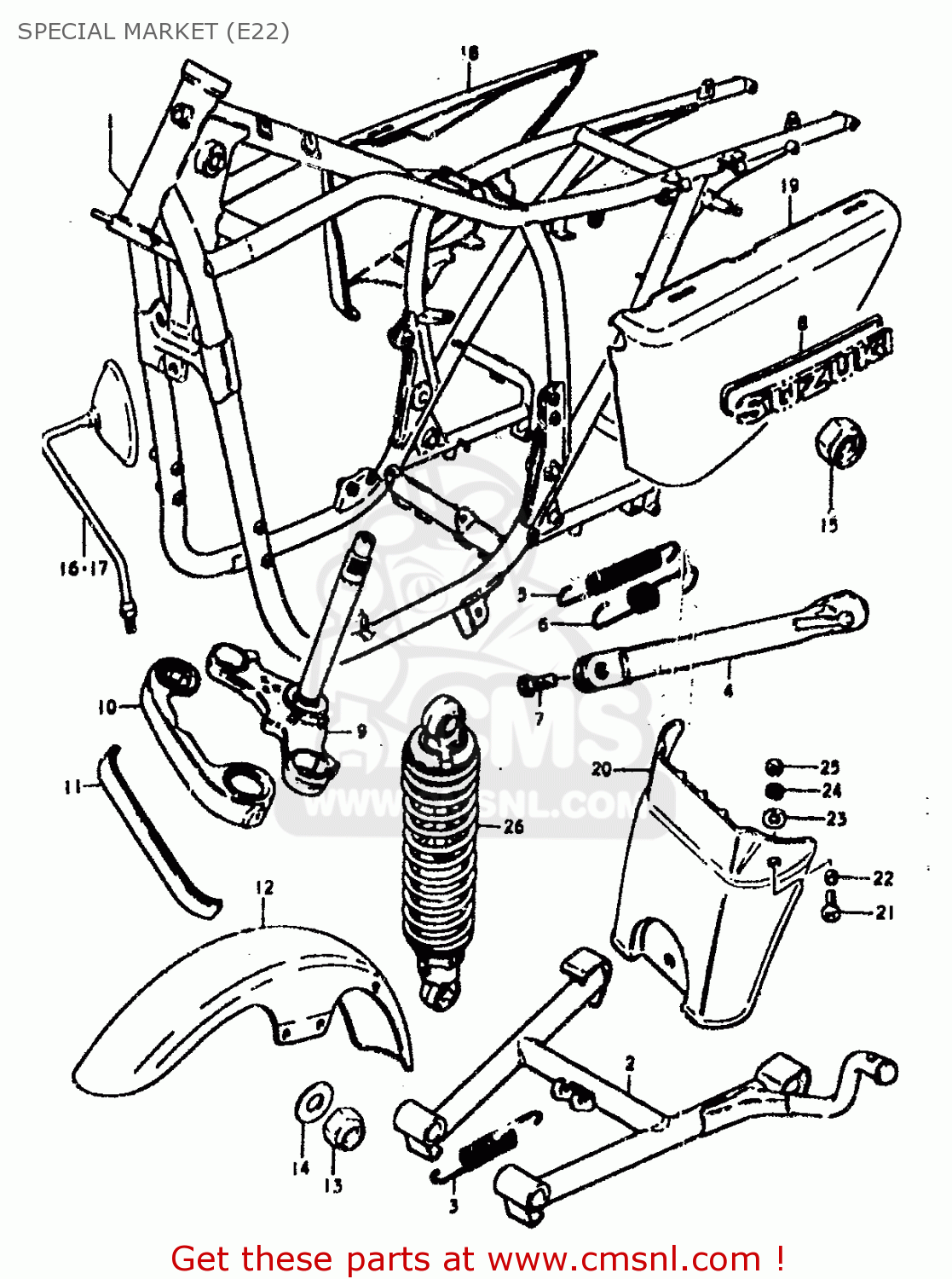

Special market (e22) diagram GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

SPECIAL MARKET (E22) GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
SPECIAL MARKET (E22) GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
SPECIAL MARKET (E22) GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
1-1
4110044020019
ref: 1-1
FRAME
€ 0.00
2-1
4210044010
ref: 2-1
STAND,CENTER
€ 0.00
3
0944318003
ref: 3
SPRING
€ 5.50
4
4231044601
ref: 4
STAND,PROP
€ 0.00
5
0944311008
ref: 5
SPRING
0944311008
€ 5.50
6
0944319002
ref: 6
SPRING, OUTER
0944319002
€ 4.00
7
0911110013
ref: 7
BOLT
0911110013
€ 4.50
8
4417547000
ref: 8
CUSHION, EMBLEM
4417547000
€ 5.50
9-1
5141044600
ref: 9-1
STEERING STEM
€ 202.00
10
5187045000
ref: 10
COVER,FRONT FORK
5187045000
€ 54.00
11
5187447000
ref: 11
PROTECTOR, FRONT FORK COVER
5187447000
€ 4.00
12
5311044010
ref: 12
FENDER,FR
5311044010
€ 335.00
13
0915912004
ref: 13
NUT
€ 8.50
14
0832211148
ref: 14
WASHER
0832211148
€ 2.00
15
0915916002
ref: 15
NUT
0915916002
€ 5.00
16
5650045611
ref: 16
MIRROR ASSY,RH
€ 72.50
17
5660045611
ref: 17
MIRROR ASSY,LH
€ 73.00
20
6331144000
ref: 20
EXTENSION,REAR FENDER
€ 0.00
21
0912506009
ref: 21
SCREW (6X15)
0912506009
€ 3.00
22
0918006001
ref: 22
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
23
0916006028
ref: 23
WASHER(6.5X18X1)
0916006028
€ 1.50
24
0832121068
ref: 24
LOCK WASHER
0832121068
€ 2.50
25
0831011068
ref: 25
NUT
0831011068
€ 2.50
26-1
6210044731
ref: 26-1
TO 62100-44732
SHOCK ABSORBER, REAR
€ 173.50
