REAR SWINGING ARM

GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

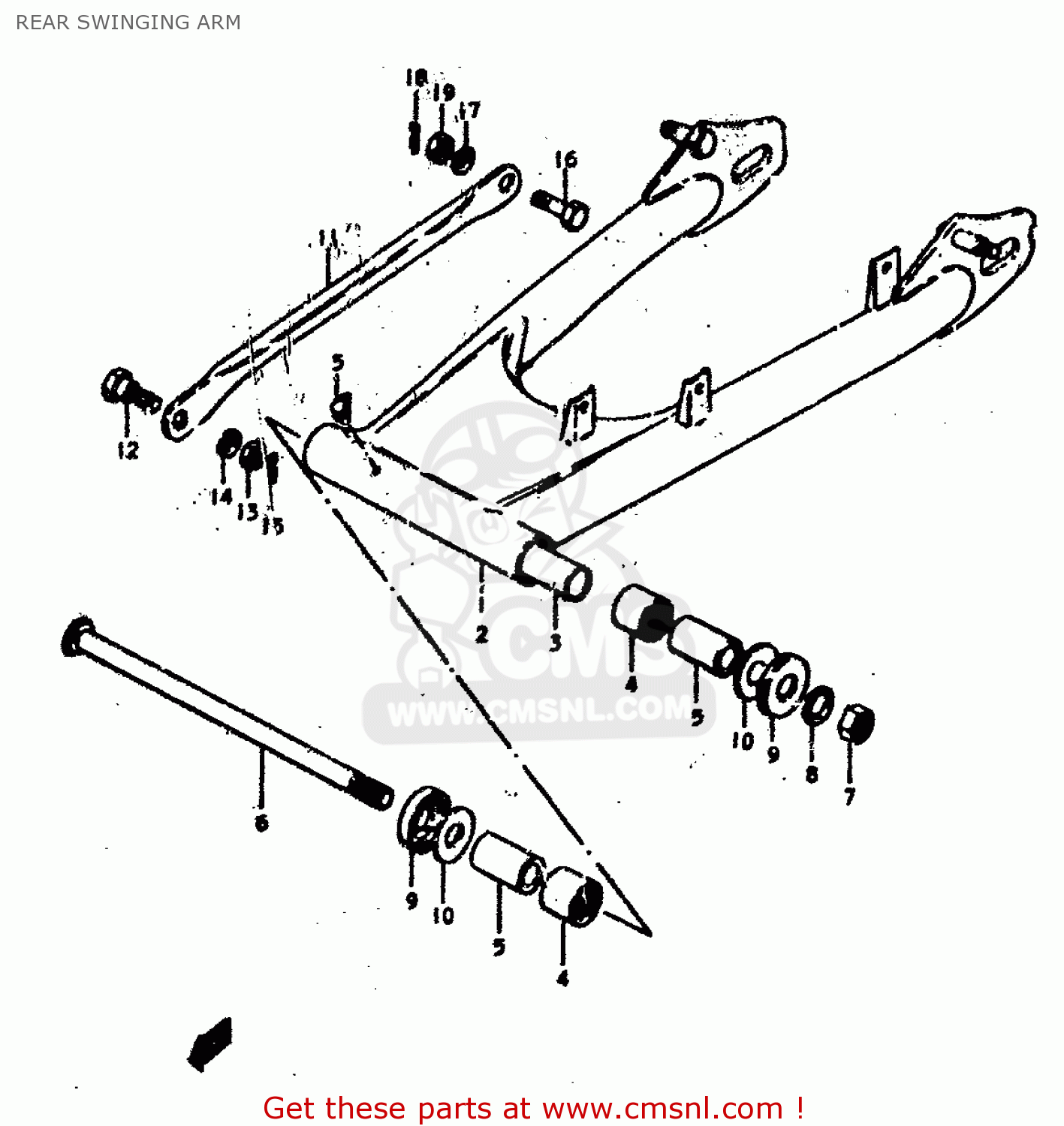

Rear swinging arm diagram GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39

REAR SWINGING ARM GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
REAR SWINGING ARM GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
REAR SWINGING ARM GS400E 1979 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39
prices are in EUR
ref
part #
description
quantity
2
6110044813019
ref: 2
SWING ARM ASSEMBLY,REAR
€ 0.00
3-1
6128044001
ref: 3-1
SPACER,SWING ARM,CENTER
€ 12.00
4
0926322017
ref: 4
BEARING(22X29X30)
0926322017
€ 18.50
5
6125145001
ref: 5
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
6-1
6121133001
ref: 6-1
TO 61211-33002
SHAFT,REAR SWING ARM
€ 84.00
7
0831921148
ref: 7
NUT 14MM
0831921148
€ 3.00
8
0832211148
ref: 8
WASHER
0832211148
€ 2.00
9-1
6126245001
ref: 9-1
TO 61262-45002
COVER,REAR SWING ARM DUST
€ 4.50
10
0916014020
ref: 10
WASHER(14.2X34X1)
0916014020
€ 2.50
11-1
6431131001
ref: 11-1
TORQUE LINK,REAR
6431131001
€ 28.00
12
0911110010
ref: 12
BOLT(10X24.5)
0911110010
€ 5.50
13
0831022108
ref: 13
NUT
0831022108
€ 2.50
14
0832121108
ref: 14
LOCK WASHER
0832121108
€ 2.00
15
0938510001
ref: 15
CLIP
0938510001
€ 1.50
16
0910110003
ref: 16
BOLT(10X31)
0910110003
€ 4.00
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
0938510001
ref: 18
CLIP
0938510001
€ 1.50
19
0831012108
ref: 19
NUT
0831012108
€ 2.50
