CAM CHAIN (MODEL D)

GS450E 1982 (Z2) GENERAL EXPORT (E01)

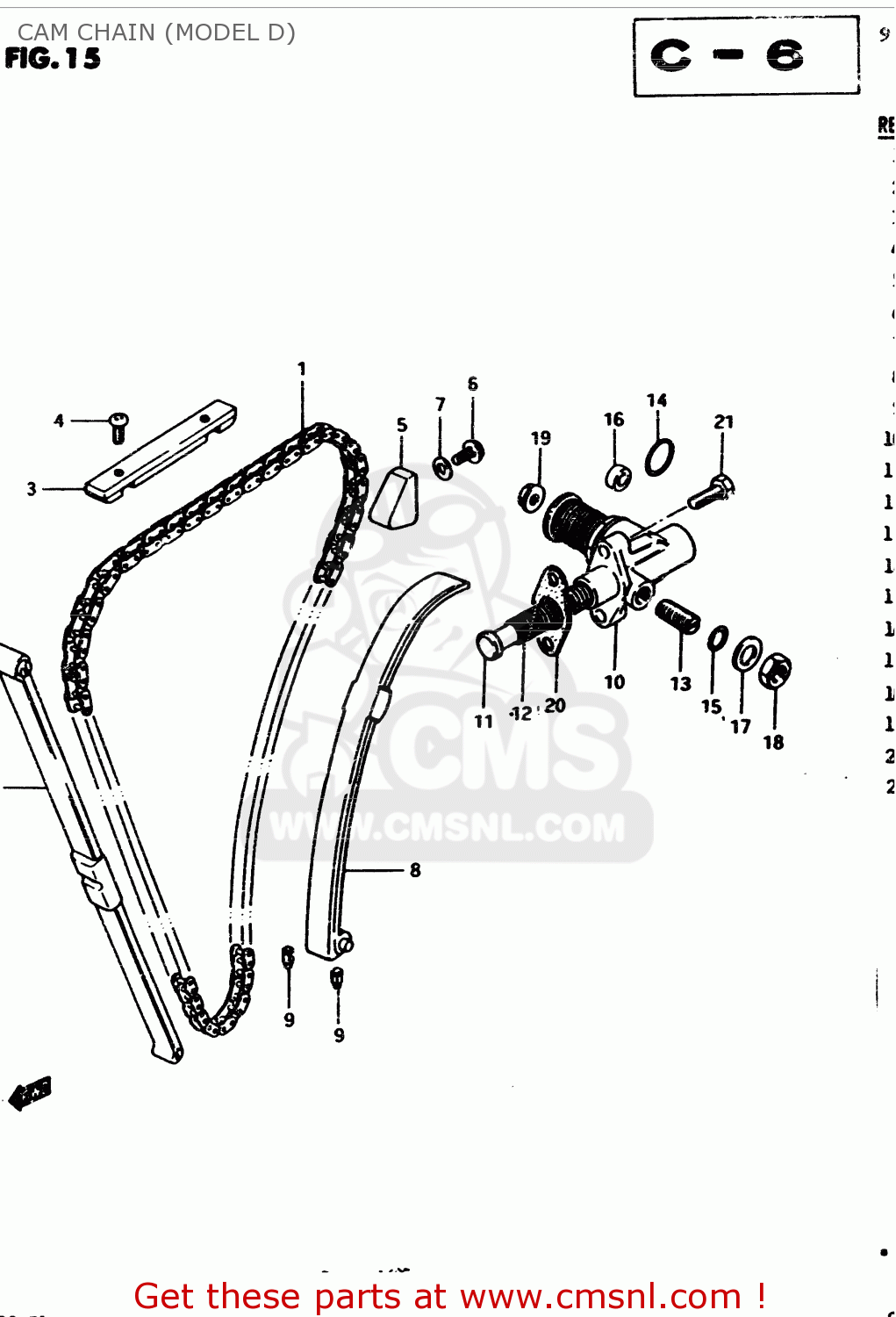

Cam chain (model d) diagram GS450E 1982 (Z2) GENERAL EXPORT (E01)

CAM CHAIN (MODEL D) GS450E 1982 (Z2) GENERAL EXPORT (E01)

CAM CHAIN (MODEL D) GS450E 1982 (Z2) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

2

1277145052
ref: 2

GUIDE,CAM CHAIN NO.1

€ 33.50

3

1278247040
ref: 3

GUIDE,CAM CHAIN NO.3

€ 89.50

4

0211205128
ref: 4

SCREW

€ 2.50

5

1279145040
ref: 5

GUIDE,CAM CHAIN

€ 8.50

6

0151706125
ref: 6

BOLT 6X12

€ 2.50

7

0916806015
ref: 7

WASHER

€ 2.00

8

1281044150
ref: 8

TENSIONER,CAM CHAIN

€ 64.00

9

1281444101
ref: 9

CUSHION,CAM CHAIN TENSIONER

€ 8.50

10

1283047011
ref: 10

ADJUSTER ASSEMBLY,TENSIONER

€ 167.00

11

1283347001
ref: 11

ROD,PUSH

€ 25.00

12

0944012017
ref: 12

SPRING

€ 2.50

13

1283845010
ref: 13

SCREW,TENSIONER ADJUST

€ 6.00

14

0928021013
ref: 14

O RING(D:2.4,ID:20.8)

€ 4.50

15

0928006005
ref: 15

O RING(D:1.9,ID:5.7)

€ 2.50

16

0928410006
ref: 16

SEAL,OIL(10X16X4)

€ 4.00

17

0832211085
ref: 17

WASHER,8.5X16X

€ 1.50

18

0831011085
ref: 18

NUT

€ 1.50

19

0831616064
ref: 19

NUT 6MM

€ 2.50

20

1283747000
ref: 20

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

21

0912806022
ref: 21

SCREW

€ 2.50
