FILTER - OIL PUMP

GS450E 1982 (Z2) GENERAL EXPORT (E01)

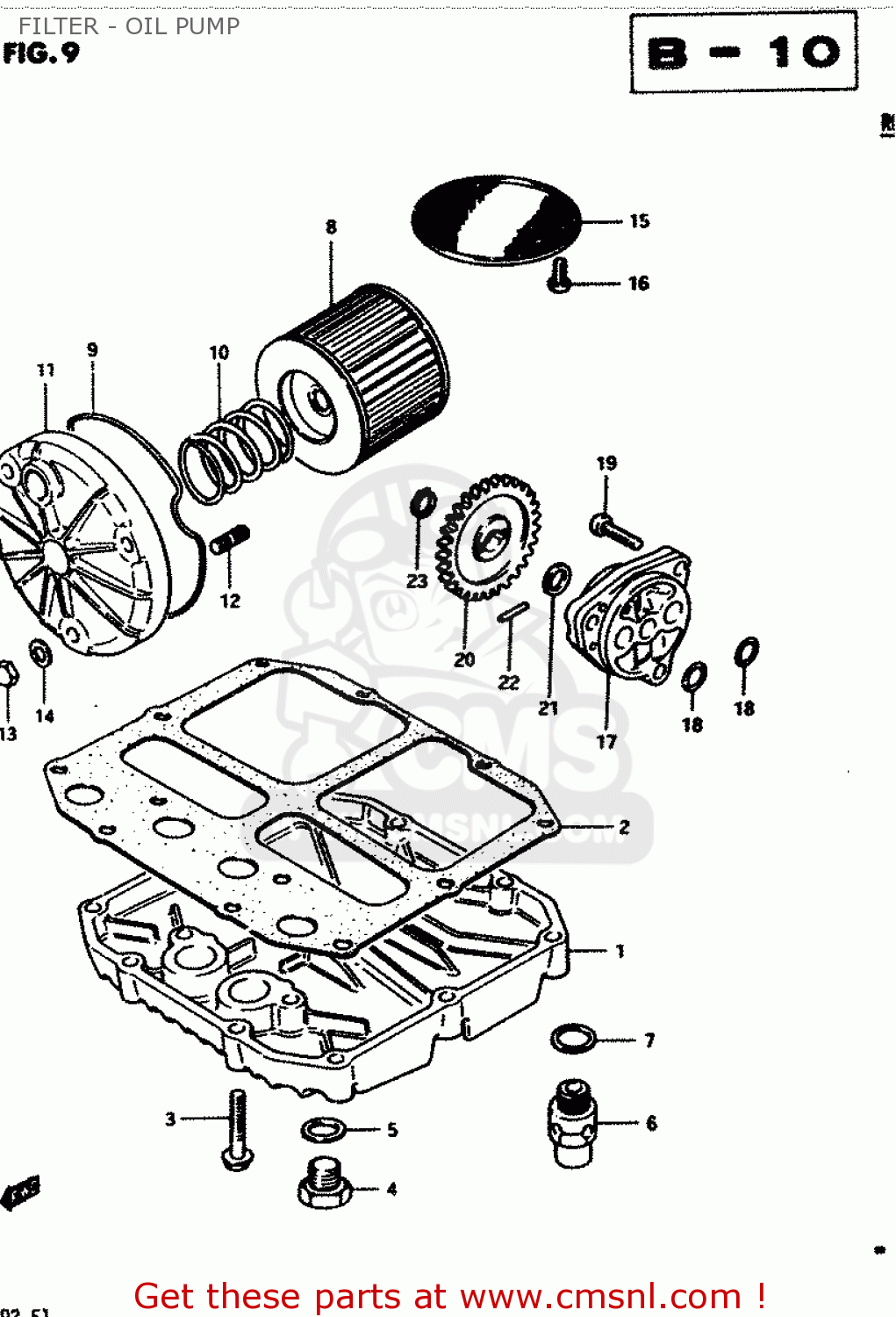

Filter - oil pump diagram GS450E 1982 (Z2) GENERAL EXPORT (E01)

FILTER - OIL PUMP GS450E 1982 (Z2) GENERAL EXPORT (E01)

FILTER - OIL PUMP GS450E 1982 (Z2) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

1151144100
ref: 1-1
MODEL Z

PAN,OIL

€ 83.50

1-2

1151144110
ref: 1-2
MODEL D

PAN,OIL

€ 83.50

2

1148944100
ref: 2

GASKET,OIL PAN (MCA)

€ 11.00

3-1

0151706308
ref: 3-1
MODEL Z

BOLT

€ 2.00

3-2

0151706305
ref: 3-2
MODEL D

BOLT 6X30

€ 2.50

4

0924714001
ref: 4

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6-1

1644034301
ref: 6-1
MODEL Z

REGULATOR ASSEMBLY,ENGINE

€ 37.00

6-2

1644033300
ref: 6-2
MODEL D

VALVE ASSEMBLY,OIL RELIEF

€ 37.00

7

0821214181
ref: 7

WASHER

€ 2.00

8

1651045040
ref: 8

FILTER ASSY,ENGINE OIL

€ 7.50

9

1651845000
ref: 9

O RING,OIL FILTER CHAMBER CAP

€ 7.50

10

0944032004
ref: 10

SPRING

€ 13.50

11-1

1651244400
ref: 11-1
MODEL Z

CAP,OIL FILTER

€ 47.00

11-2

1651244410
ref: 11-2
MODEL D

CAP,OIL FILTER

€ 47.00

12

0142106208
ref: 12

STUD 6X20

€ 2.50

13-1

0831311068
ref: 13-1
MODEL Z

NUT

€ 2.00

13-2

0831311065
ref: 13-2
MODEL D

NUT 6MM

€ 2.00

14-1

0832221068
ref: 14-1
MODEL Z

WASHER

€ 2.00

14-2

0832221065
ref: 14-2
MODEL D

WASHER

€ 2.00

15

1652045010
ref: 15

STRAINER,ENGINE OIL

€ 12.00

16

0211206128
ref: 16

SCREW 6X12

€ 2.00

17

1640044100
ref: 17

PUMP ASSY,ENGINE OIL

€ 164.50

18

0928013004
ref: 18

O RING(D:1.9,ID:13)

€ 2.50

19

0211206258
ref: 19

SCREW

€ 2.00

20

1633144000
ref: 20

GEAR,OIL PUMP DRIVEN

€ 34.00

21

0822110165
ref: 21

SHIM

€ 1.50

22

0926104009
ref: 22

PIN(4X15.8)

€ 1.50

23

0833131109
ref: 23

CIRCLIP

€ 2.00
