LEFT HANDLE SWITCH (MODEL D)

GS450E 1982 (Z2) GENERAL EXPORT (E01)

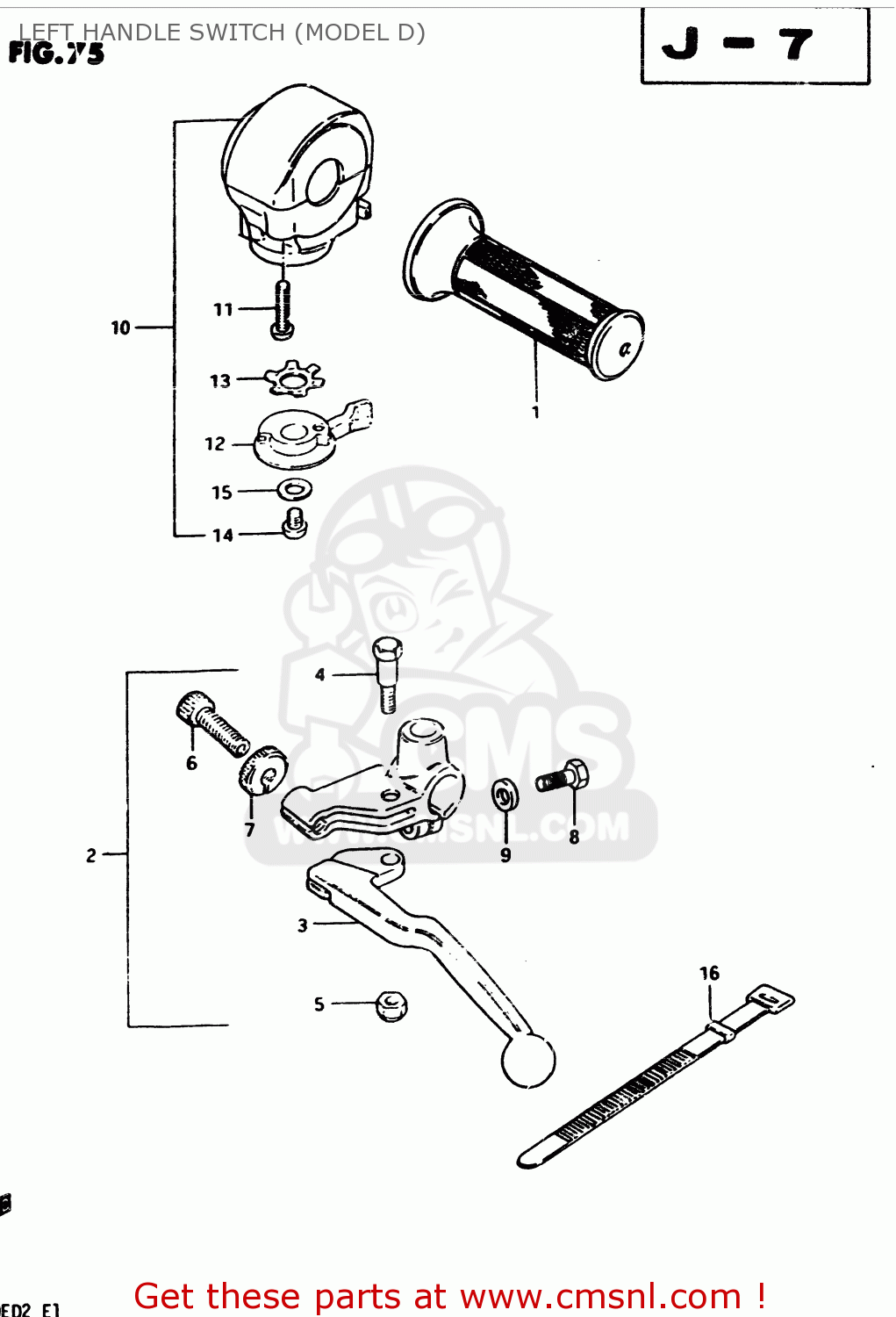

Left handle switch (model d) diagram GS450E 1982 (Z2) GENERAL EXPORT (E01)

LEFT HANDLE SWITCH (MODEL D) GS450E 1982 (Z2) GENERAL EXPORT (E01)

LEFT HANDLE SWITCH (MODEL D) GS450E 1982 (Z2) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

5721149510
ref: 1

GRIP,L

€ 26.50

2

5750049121
ref: 2

LEVER ASSEMBLY,CLUTCH

€ 49.50

3

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743149110
ref: 4

BOLT,LEVER PIVOT

€ 5.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744144400
ref: 6

ADJUSTER,CABLE

€ 5.50

7

5744244400
ref: 7

NUT,CABLE ADJUSTER LOCK

€ 4.00

8

5745149110
ref: 8

BOLT,CLUTCH LEVER HOLDER

€ 2.00

9

0832221064
ref: 9

WASHER

€ 2.00

10-1

3740045110
ref: 10-1

SWITCH ASSY, HANDLE LH

€ 161.00

10-2

3740045120
ref: 10-2
E34

SWITCH ASSY, HANDLE LH

€ 130.00

11

0211205258
ref: 11

SCREW

€ 2.00

12

3757145110
ref: 12

LEVER,STARTER

€ 19.00

13

3757345110
ref: 13

WASHER

€ 2.00

14

0211206088
ref: 14

SCREW

€ 2.00

15

0832211068
ref: 15

WASHER 6MM

€ 2.00

16

0940712402
ref: 16

CLAMP(L:120)

€ 3.00
