FRONT RIGHT DAMPER

GS450E 1982 (Z2) GENERAL EXPORT (E01)

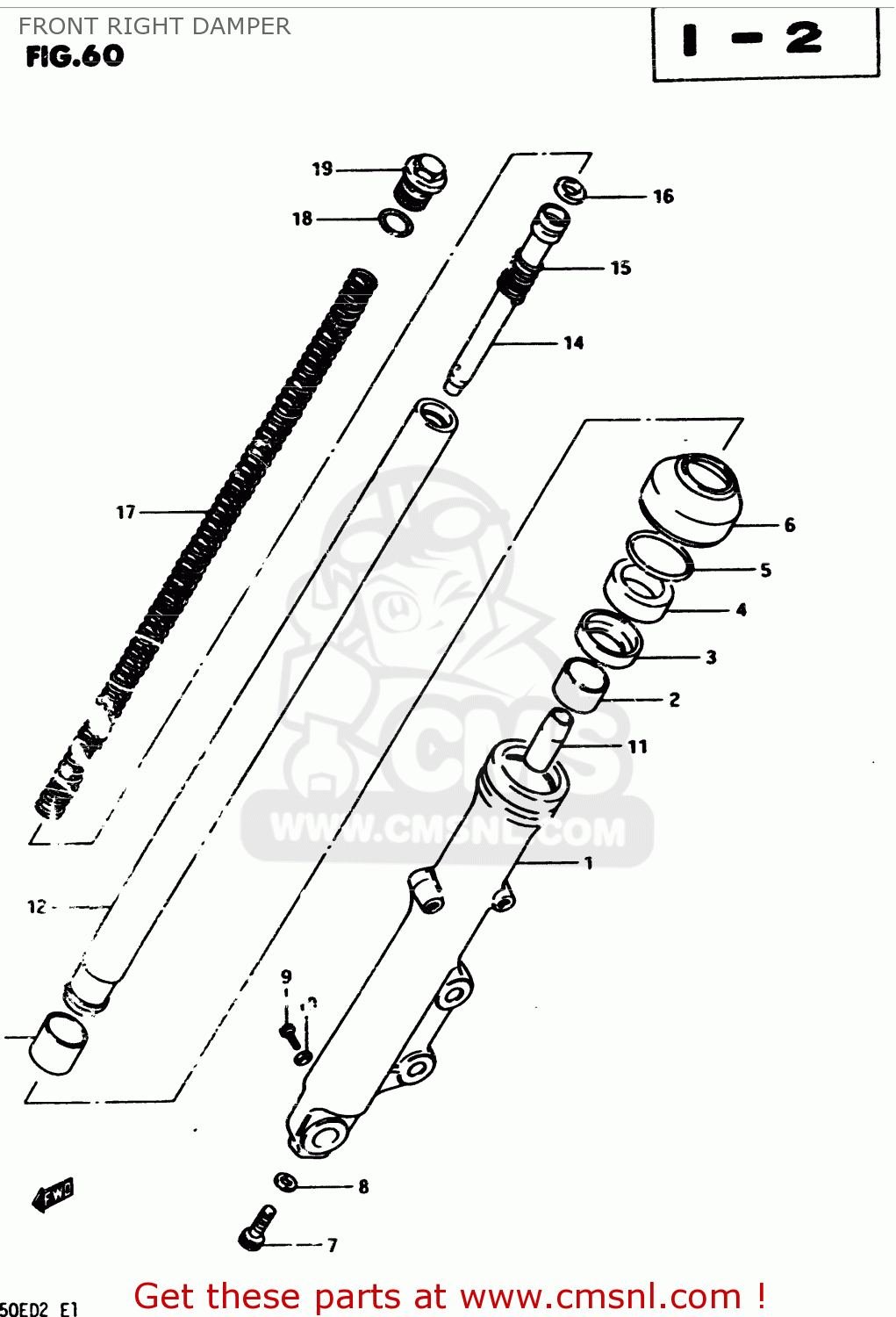

Front right damper diagram GS450E 1982 (Z2) GENERAL EXPORT (E01)

FRONT RIGHT DAMPER GS450E 1982 (Z2) GENERAL EXPORT (E01)

FRONT RIGHT DAMPER GS450E 1982 (Z2) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5110344420
ref: 0

DUMPER ASSY, RH

€ 406.00

1

5113011500
ref: 1

OUTER TUBE RH

€ 205.50

2

5115211420
ref: 2

BUSH,GUIDE

€ 16.50

3

5116844030
ref: 3

SPACER,OIL SEAL

€ 4.50

4

5115337310
ref: 4

OIL SEAL,FRONT FORK

€ 15.00

5

5115633130
ref: 5

CIRCLIP,FORK OIL SEAL

€ 4.50

6

5157137310
ref: 6

DUST SEAL

€ 22.00

7

5114748130
ref: 7

BOLT(8X27)

€ 3.50

8

5114831030
ref: 8

GASKET (NAS)

€ 4.00

9

0110706088
ref: 9

BOLT

€ 2.50

10

5118331030
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 4.00

11

5119548000
ref: 11

PIECE,OIL LOCK

€ 8.50

12

5111011420
ref: 12

TUBE,INNER

€ 192.50

13

5112111420
ref: 13

BUSH

€ 16.50

14

5114644110
ref: 14

CYLINDER,FRONT FORK

€ 42.00

15

5117711420
ref: 15

SPRING,REBOUND

€ 4.50

16

5119633130
ref: 16

RING,PISTON

€ 7.50

17

5117111420
ref: 17

SPRING,FR.FORK

€ 43.50

18

5118131030
ref: 18

O RING

€ 3.50

19

5135133130
ref: 19

BOLT

€ 30.50
