FRONT LEFT DAMPER (E34)

GS450E 1982 (Z2) GENERAL EXPORT (E01)

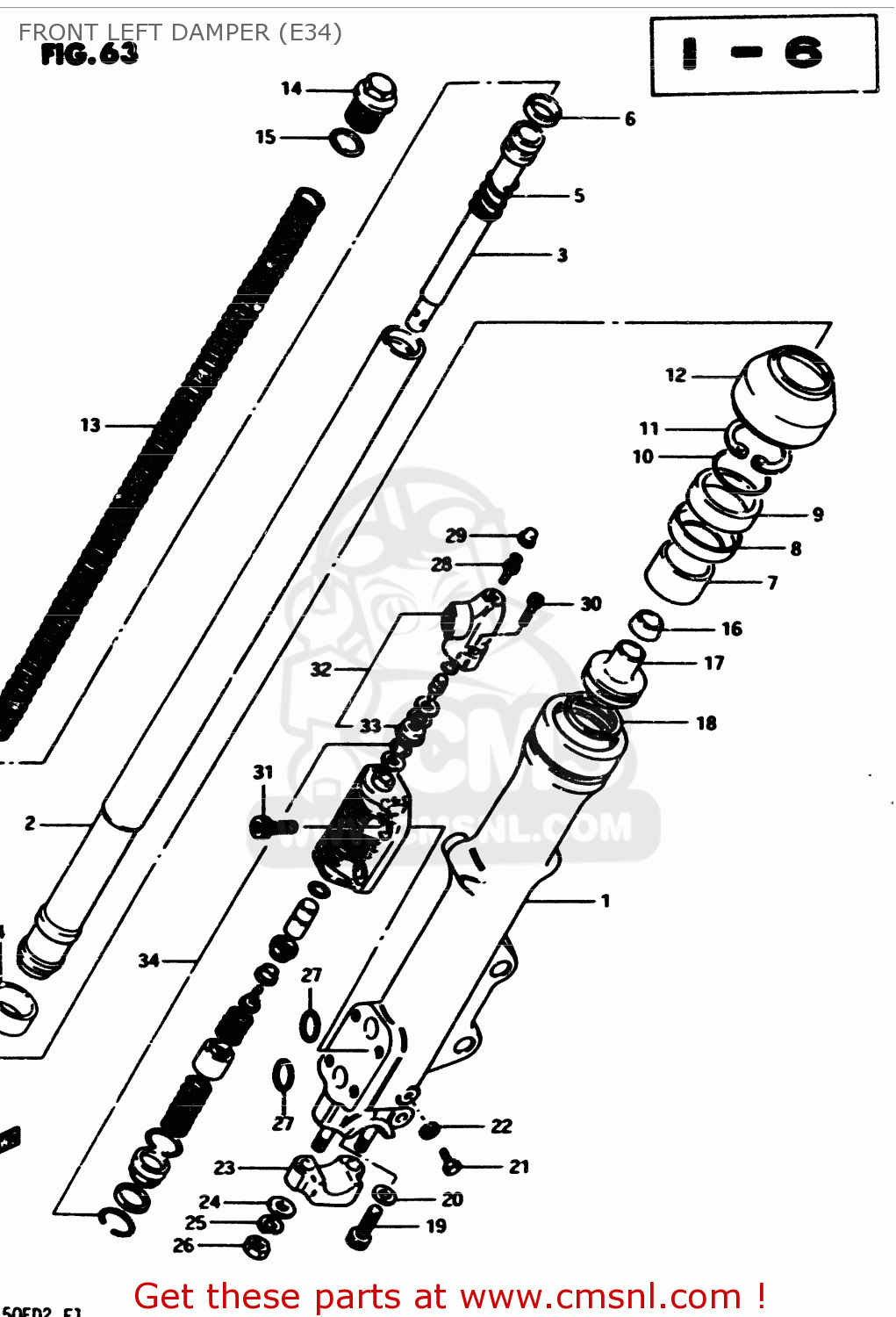

Front left damper (e34) diagram GS450E 1982 (Z2) GENERAL EXPORT (E01)

FRONT LEFT DAMPER (E34) GS450E 1982 (Z2) GENERAL EXPORT (E01)

FRONT LEFT DAMPER (E34) GS450E 1982 (Z2) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5110444450
ref: 0

DAMPER ASSY, LH

€ 0.00

1

5114033230
ref: 1

OUTER TUBE LH

€ 192.00

2

5112044420
ref: 2

TUBE,FORK INNER,L

€ 168.00

3

5119411420
ref: 3

CYLINDER, LH

€ 0.00

4

5112111420
ref: 4

BUSH

€ 16.50

5

5117711420
ref: 5

SPRING,REBOUND

€ 4.50

6

5119633130
ref: 6

RING,PISTON

€ 7.50

7

5115211420
ref: 7

BUSH,GUIDE

€ 16.50

8

5116844030
ref: 8

SPACER,OIL SEAL

€ 4.50

9

5115337310
ref: 9

OIL SEAL,FRONT FORK

€ 15.00

10

5115811420
ref: 10

RING,BACKUP

€ 4.00

11

5115611420
ref: 11

RING,OIL SEAL STOPPER

€ 4.50

12

5157137310
ref: 12

DUST SEAL

€ 22.00

13

5117111420
ref: 13

SPRING,FR.FORK

€ 43.50

14

5135133130
ref: 14

BOLT

€ 30.50

15

5118131030
ref: 15

O RING

€ 3.50

16

5112511420
ref: 16

VALVE,OIL LOCK PIEACE

€ 7.50

17

5119511420
ref: 17

PIECE,OIL LOCK

€ 21.50

18

5112311420
ref: 18

RING, PISTON

€ 2.50

19

5114748130
ref: 19

BOLT(8X27)

€ 3.50

20

5114831030
ref: 20

GASKET (NAS)

€ 4.00

21

0110706088
ref: 21

BOLT

€ 2.50

22

5118331030
ref: 22

GASKET,DRAIN,PLUG (NAS)

€ 4.00

23

5113244040
ref: 23

HOLDER,AXLE

€ 38.50

24

0832221088
ref: 24

WASHER

€ 2.00

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0831012088
ref: 26

NUT

€ 2.00

27

5179911420
ref: 27

O RING,FR FORK

€ 2.00

28

5177811420
ref: 28

BREATHER

€ 8.50

29

5177911420
ref: 29

CAP

€ 4.50

30

5179711420
ref: 30

BOLT

€ 2.50

31

5179611420
ref: 31

BOLT

€ 3.00

32

5170011810
ref: 32

MODULATOR PARTS SET,FRONT

€ 92.50

33

5177711420
ref: 33

SEPARATOR,FRONT FORK MODULATOR

€ 5.00

34

5170011821
ref: 34

MODULATOR VALVE SET

€ 133.00
