CRANKCASE

GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

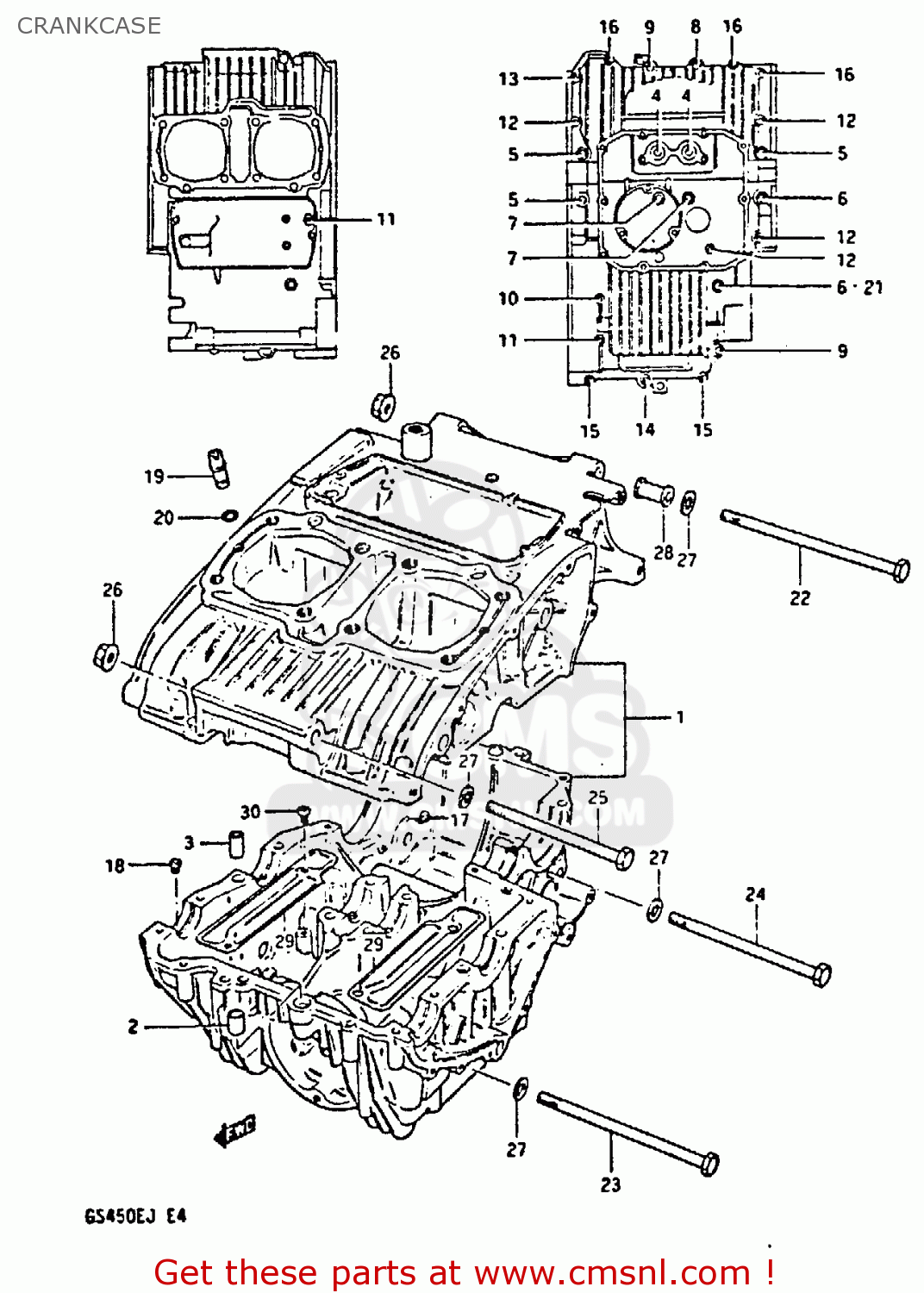

Crankcase diagram GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

CRANKCASE GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
CRANKCASE GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
CRANKCASE GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
prices are in EUR
ref
part #
description
quantity
1
1130044880
ref: 1
CRANKCASE SET
€ 1,172.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0711008706
ref: 4
BOLT (8X70)
€ 4.00
5
0910308182
ref: 5
BOLT(8X125)
0910308182
€ 4.50
6
0910308024
ref: 6
BOLT
0910308024
€ 3.00
7
0910308070
ref: 7
BOLT(8X100)
0910308070
€ 5.00
8
0151708655
ref: 8
BOLT (8X65)
€ 3.00
9
0151708455
ref: 9
BOLT
€ 3.00
10
0910306033
ref: 10
BOLT(6X125)
0910306033
€ 3.50
11
0910306067
ref: 11
BOLT(6X105)
0910306067
€ 3.50
12
0151706905
ref: 12
BOLT (6X90)
€ 3.50
13
0151706705
ref: 13
BOLT
€ 2.50
14
0151706655
ref: 14
BOLT
€ 2.50
15
0151706505
ref: 15
BOLT 6X50
0151706505
€ 2.00
16
0151706455
ref: 16
BOLT (6X45)
€ 2.50
17
0949322010
ref: 17
JET,AIR
0949322010
€ 12.00
18
0949332002
ref: 18
JET
0949332002
€ 11.50
19
0949324008
ref: 19
JET
0949324008
€ 16.00
20
0928003003
ref: 20
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
21
0916808008
ref: 21
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
22
0910010139
ref: 22
BOLT
€ 6.50
23
0910010145
ref: 23
BOLT
€ 46.50
24
0910010136
ref: 24
BOLT
€ 28.50
25
0910010135
ref: 25
BOLT
€ 6.50
26
0831931105
ref: 26
NUT 10MM
€ 3.00
27
0832211104
ref: 27
WASHER 10MM
0832211104
€ 2.50
28
1161011410
ref: 28
SPACER,ENGINE MOUNT
€ 9.50
29
1152144100
ref: 29
PLATE,OIL SEPARATOR
1152144100
€ 3.00
30
0211206108
ref: 30
SCREW
0211206108
€ 1.50
