STEERING STEM

GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

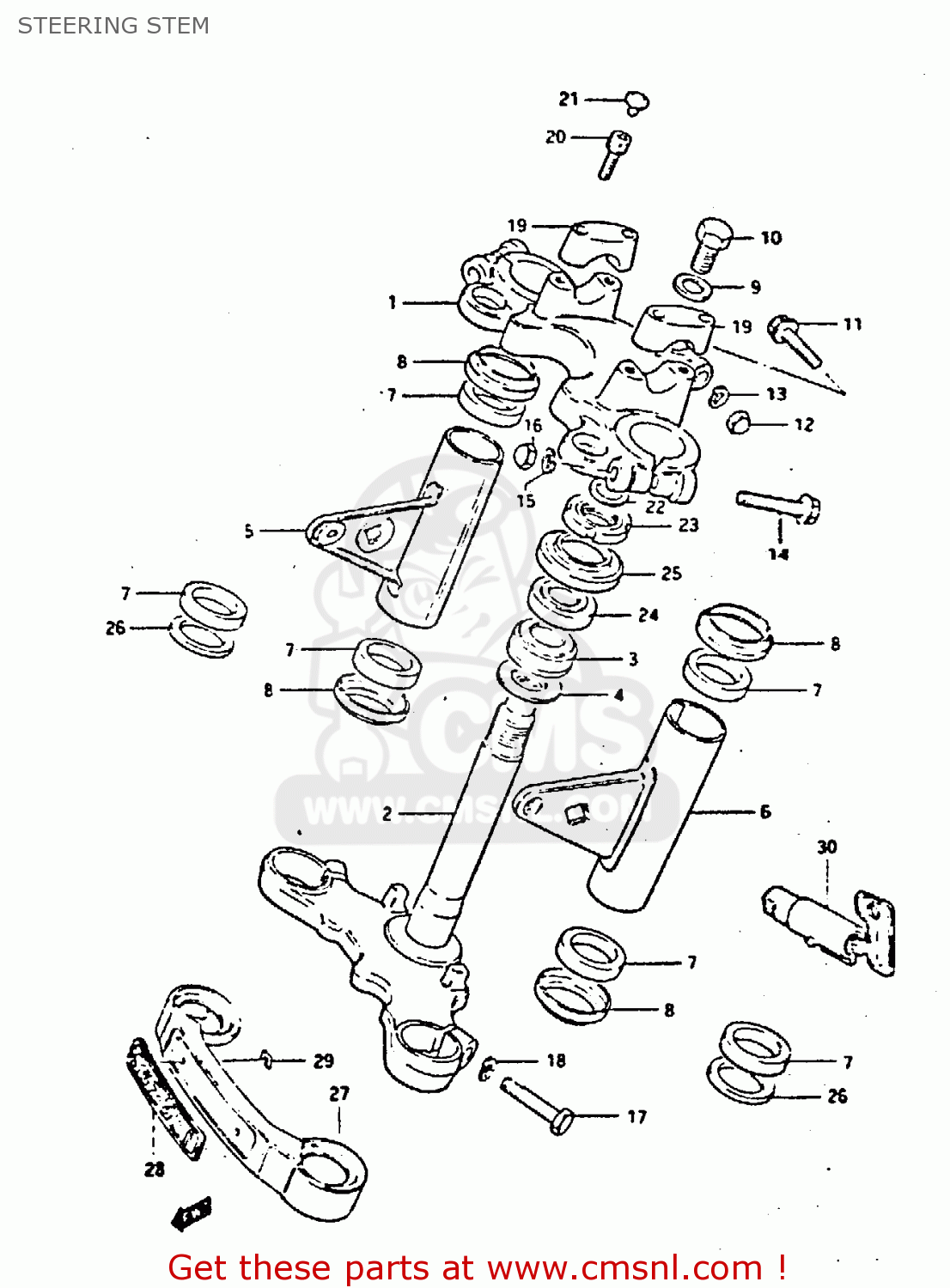

Steering stem diagram GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

STEERING STEM GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
STEERING STEM GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
STEERING STEM GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
prices are in EUR
ref
part #
description
quantity
1
5131144110291
ref: 1
HEAD,STEERING STEM
5131144110291
€ 100.50
2
5140044851
ref: 2
STEM,STEERING
5140044851
€ 97.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153033200291
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 100.00
6
5154033200291
ref: 6
BRACKET,HEADLAMP,LEFT
5154033200291
€ 99.00
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
5155644100
€ 5.50
8
5155544100
ref: 8
CAP,HEADLAMP BRACKET
5155544100
€ 5.50
9
0916012020
ref: 9
WASHER (12.5X27X1.6)
0916012020
€ 2.00
10
0910412013
ref: 10
BOLT(12X20)
0910412013
€ 6.50
11
0151708504
ref: 11
BOLT, UPPER
€ 2.50
12
0831311085
ref: 12
NUT,M8X1.25X12
€ 2.00
13
0832121084
ref: 13
WASHER,LOCK,8.
0832121084
€ 2.50
14
0151710555
ref: 14
BOLT
€ 3.00
15
0832131105
ref: 15
GS450EE/EG/EH/EJ E2,
LOCK WASHER
€ 3.00
16
0914510002
ref: 16
GS450EE/EG/EH/EJ E2,
NUT
0914510002
€ 4.00
17
0110710404
ref: 17
BOLT
€ 2.50
18
0832121104
ref: 18
WASHER,LOCK
0832121104
€ 3.00
19
5621134300291
ref: 19
HOLDER,HANDLEBAR(BLACK)
5621134300291
€ 42.00
20
0711008305
ref: 20
BOLT, REAR (8X30)
0711008305
€ 3.00
21
0925006004
ref: 21
CAP(OD:14.5)
0925006004
€ 1.50
22
0916018002
ref: 22
WASHER(18.5X24X1)
0916018002
€ 2.00
23
5163134200
ref: 23
NUT,STEERING STEM
5163134200
€ 23.00
24
0926525008
ref: 24
TAPER,ROLLER BEARING
0926525008
€ 48.50
25
5164340502
ref: 25
DUST SEAL,STEERING UPR
5164340502
€ 8.00
26
5155511400
ref: 26
GS450SE/SF/SG/SH/SJ
SEAT,HEADLAMP BRACKET LWR
5155511400
€ 2.00
27-1
5187144220
ref: 27-1
GS450EE/EG/EH/EJ
COVER,FRONT FORK
5187144220
€ 22.50
27-2
5187144210
ref: 27-2
GS450EE E39, GS450EJ
COVER,FRONT FORK
€ 22.50
28
6821144210
ref: 28
GS450EE/EG/EH/EJ
EMBLEM,FR FORK COVER
6821144210
€ 23.00
29
0914803002
ref: 29
GS450EE/EG/EH/EJ
NUT
0914803002
€ 3.00
30
5190022662
ref: 30
E15, E22, E77
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
