SIGNAL GENERATOR

GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

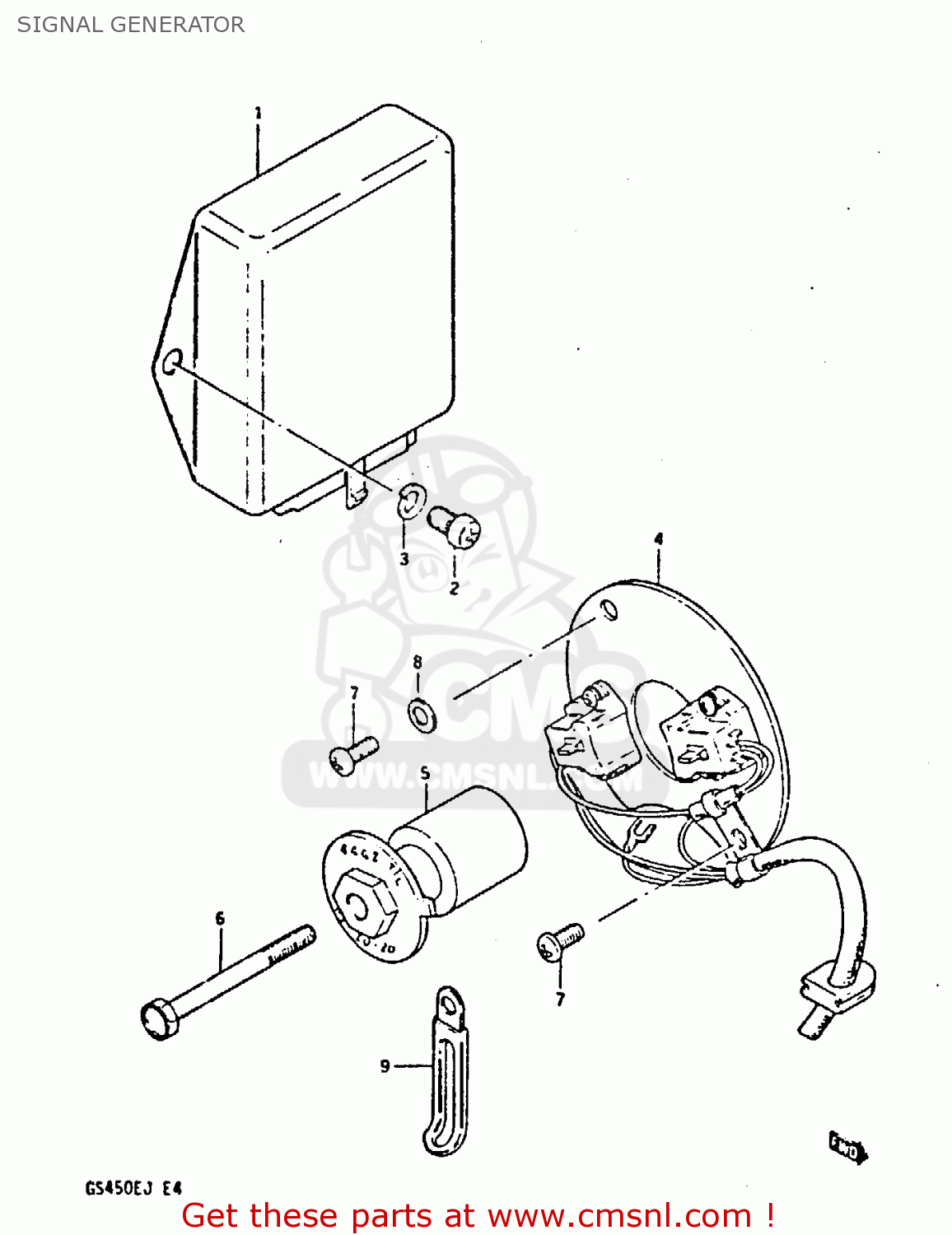

Signal generator diagram GS450E 1986 (G) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

prices are in EUR

ref

part #

description

quantity

3290044420
ref: 1

IGNITOR UNIT

€ 483.00

0211206108
ref: 2

SCREW

€ 1.50

0832121067
ref: 3

WASHER,LOCK

€ 2.50

3311044420
ref: 4

SIGNAL GENERATOR ASSY

€ 292.50

3312044420
ref: 5

ROTOR,SIGNAL

€ 67.50

0110706608
ref: 6

BOLT 6X60

€ 2.50

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

0940406401
ref: 9

CLAMP L:35

€ 2.50
